IP65 front true flat surace 21.5" panel mount touch PC
FEATURES
- Supports Intel Celeron CPU up to 2.0 GHz
- Low power consumption and economical solution
- Compact size and high performance
- High speed Giga LAN
- On-board IDE interface
- High precision touchscreen
- Industry level of durability against dust and powerful jetting IP65 / NEMA 4
industrial PC main Features:
Full fetal case
Can be used as high-definition digital TV, high-definition industrial equipment display, high-definition surveillance closed-circuit display, computer display, high-definition photography display HD-MI, 1080P display
4D color management and image processing technology
Multiple inputs
High brightness, uniform display in full screen, no color difference, no tailing;
Adaptive 3D digital noise reduction, DLTL (Digital Brightness Instant Enhancement)
DCT (Digital Chroma Instant Enhancement), automatic skin tone correction function;
Exclusive DNX (Digital Natural Expression), motion compensated image processing technology;
Long life, low radiation, and environmental protection.
Specifications:
|
Flat Bezel Industrial Panel PC
|
| Model Name |
ITD21PPCG1X** |
| IP Rating |
IP65 Front Panel |
|
PC Systems Options
|
| ARM Android Based RK3288(RK3368 optional) |
X86 Windows Based |
X86 Windows Based |
| CPU: Quad-Core Cortex-A17 1.8GHz |
CPU: Intel® Celeron J1900 |
CPU: Intel Core i3/i5/i7 |
| Chipset: N/A |
Chipset: Intel® HD Graphics, Support 1080p |
Chipset: Intel® HD Graphics, Support 1080p |
| Memory: 1G/2G |
Memory: 2GB(Max. 8GB) |
Memory: 2GB(Max. 8GB) |
| HDD/SSD: 8G |
HDD/SSD:500G/64G |
HDD/SSD:500G/64G |
| 1×HDMI |
1×VGA, 1×HDMI |
1×VGA, 1×HDMI |
| 1×USB 2.0 |
2×USB 2.0, 2×USB3.0 |
2×USB 2.0, 2×USB3.0 |
| 1×mini-SD slot |
1×COM(RS232/422/485) |
1×COM(RS232/422/485) |
| 1×LAN |
1×LAN |
1×LAN |
| 1×Audio Out |
1×Audio Out, 1×MIC In |
1×Audio Out, 1×MIC In |
| Expansion: SSD |
Expansion: USB, COM, Mini-PCIe |
Expansion: USB, COM, Mini-PCIe |
|
LCD Panel
|
| Screen Diagonal (Inch) |
21.5” |
| Display Active Screen Size (cm) |
476.64(H)×268.11(V) |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920×1080 |
| Maximum Resolution Supported |
1920×1080 |
| Colors |
16.7M |
| Brightness (cd/m²) |
250 |
| Contrast Ratio |
1000:1 |
| View Angels |
85/85/80/80 |
| Backlight/Backlight Lifetime |
LED Backlight with 50000Hours'Lifetime |
|
Touch Panel
|
| Touch Options |
Resistive, IR, PCAP, SAW |
| Touch Drivers |
Windows, Linux, Android, Mac, Raspberry Pi |
|
Operation
|
| Operating Temperature Range |
-10~60°C (-20~70°C Optional) |
| Humidity Range (RH) |
10-90% |
| 24/7/365 Use |
Supported |
|
Power
|
| Power Indicator |
Green LED |
| Power Input |
DC 12V |
| Power Consumption |
36.25W |
|
Order Information
|
| 21.5”Panel Mount Panel PC with Resistive Touch, J1900 |
ITD21PPCT1XJ1 |
| 21.5”Panel Mount Panel PC with PCAP Touch, J1900 |
ITD21PPCT5XJ1 |
| 21.5”Panel Mount Panel PC with Tempered Glass, J1900 |
ITD21PPCG1XJ1 |
| 21.5”Panel Mount Panel PC with Resistive Touch, i5 |
ITD21PPCT1XI5 |
| 21.5”Panel Mount Panel PC with PCAP Touch, i5 |
ITD21PPCT5XI5 |
| 21.5”Panel Mount Panel PC with Tempered Glass, i5 |
ITD21PPCG1XI5 |
| |
|
|
|
The ITD all-in-one Embedded Panel PCs with x86 open platform and preinstalled Windows Embedded operating systems enable fast and economical deployment of improved HMI systems for operator control and monitoring applications. The Celeron J1900 processor was produced by Intel as a high-powered chip that would work in a wide range of thermal conditions, making it a highly desirable solution for industrial control applications.

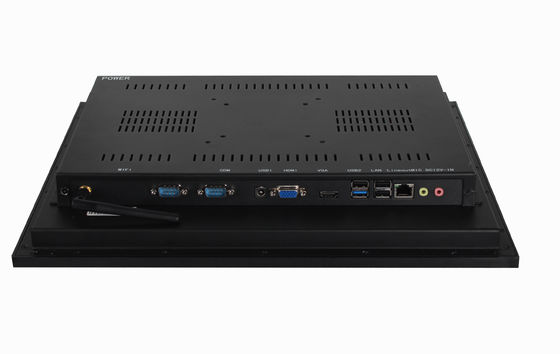

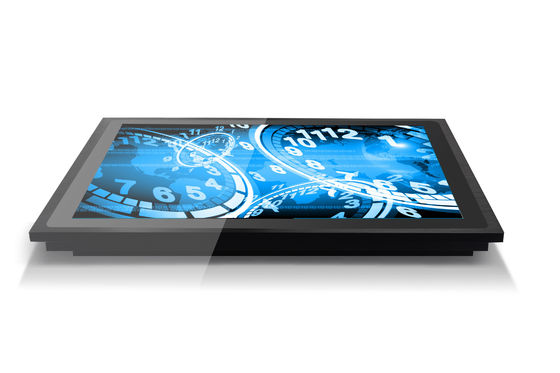

Product Display:
