Name: Widescreen 10.1" Touch Panel PC / Computer DC 12V With TFT LCD Display
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD101PPCT5XJ
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900/i3/i5/i7/Android

MTBF: 50000Hours

Operating Temperature: -10~60℃(-20~70℃ Optional)

24/7/365 Use: Supported

Touchscreen: Resistive, PCAP

Power Input: DC 12V

Resolution: 1280x800

View Angels: 85/85/85/85

Highlight:

touch display pc

touch panel computer

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD101PPCT5XJ

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 5-15 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 10000PCS/Month

Gallery

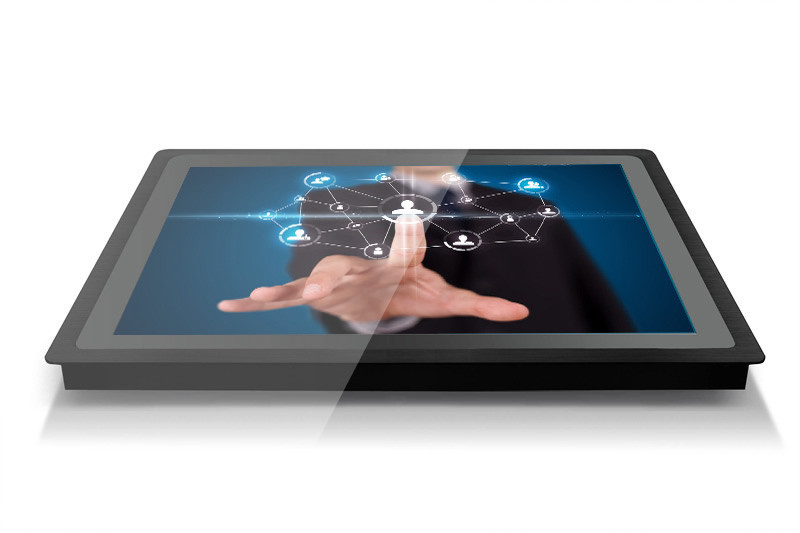

Widescreen 10.1" Touch Panel PC / Computer DC 12V With TFT LCD Display

Product Description

Widescreen 10.1" tft lcd true flat surface aluminum bezel industrial computer

BENEFITES

Exceptional quality and highly engineered industrial panel computer
High Performance Processor, Graphics, Memory and Power
Edge to edge design with true flat surface, easy to clean
All steel construction designed for harsh and industrial environments
Easy-to-install embedded/panel mounting with clamps
Flexible, reliable, and ruggedized for open platform HMI/SCADA

Specifications:

Flat Bezel Industrial Panel PC
Model Name		ITD101PPCG1X**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		10.1”
Display Active Screen Size (cm)		216.96(H)×135.6(V)
Aspect Ratio		16:10
Physical Resolution		1280×800
Maximum Resolution Supported		1920×1200
Colors		262K
Brightness (cd/m²)		350
Contrast Ratio		800:1
View Angels		85/85/85/85

ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.

Product Display:

Widescreen 10.1" Touch Panel PC / Computer DC 12V With TFT LCD Display 0

APPLICATION
