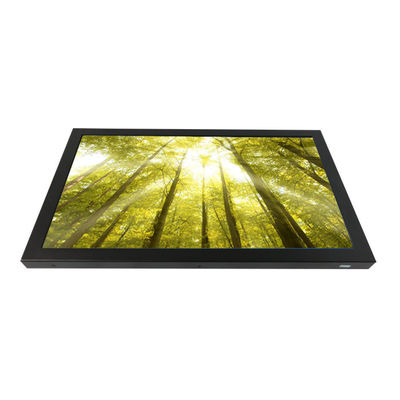

Wide Screen 19" Sunlight Readable Panel PC Industrial Grade With I3 2GB 128G SSD

1pcs
MOQ
TBA
Price
Wide Screen 19" Sunlight Readable Panel PC Industrial Grade With I3 2GB 128G SSD
Features Gallery Product Description Request A Quote
Features
Specifications
Housing Material: Steel Chassis
Name: Open Frame Panel Pc
Operating Temperature: -10~60℃(-20~70℃ Optional)
CPU: I3
Resolution: 1440*900
Feature: Waterproof
Highlight:

all in one panel pc

,

industrial touch panel pc

Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD19PPCT1HBJ1W
Payment & Shipping Terms
Packaging Details: 1-5pcs/CTN, Safe, Firm
Delivery Time: 15-20 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000PCS/Month
Product Description



19" wide screen high brightness sunlight readable industrial chassis all in one touch Panel PC with I3,2GB, 128G SSD

ITD sunlight readable panel mounted panel PCs are ideal solutions for a variety of applications on ships, marine platforms, outdoor self-service terminals, etc. These are designed for high reliability and low maintenance in this type of working environments. While we have pre-designed products, we also provide custom designs based on the features and requirements that you want to integrate into the system. In this way, we always have all the possible choices that the client may look for high brightness panel PCs.


BENEFITES

- 19" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)



- 4GB, Max.8G System Memory



- 500GB HDD or 126GB SSD, Bigger Capacity Optional



- Intel Celeron 2 GHz Quad Core Processor


- NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel



- Resistive Touch Screen Standard (PCAP, IR Touch Optional)



- Energy Efficient, Low Power Consumption



- Wide Operational Temperature Range, -10°C to +60°C



Chassis High Brightness Panel PC
Model Name ITD19PPCG1HBLW**
IP Rating IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G

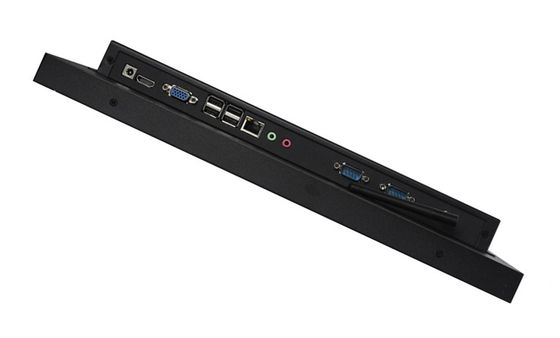

1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch) 19”
Display Active Screen Size (cm) 408.24(H)×255.15(V)
Aspect Ratio 16:10
Physical Resolution 1440×900
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1000(1500 Optional)
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options Resistive, IR, PCAP, SAW,
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported
Power
Power Indicator Green LED
Power Input DC 12V
Power Consumption 34W
Order Information
19W”1000nits Chassis Panel PC with Resistive Touch, J1900 ITD19PPCT1HBLWJ1
19W”1000nits Chassis Panel PC with PCAP Touch, J1900 ITD19PPCT5HBLWJ1
19W”1000nits Chassis Panel PC with IR Touch, J1900 ITD19PPCT2HBLWJ1
19W”1000nits Chassis Panel PC with Tempered Glass, J1900 ITD19PPCG1HBLWJ1
19W”1000nits Chassis Panel PC with Resistive Touch, i5 ITD19PPCT1HBLWI5
19W”1000nits Chassis Panel PC with PCAP Touch, i5 ITD19PPCT5HBLWI5
19W”1000nits Chassis Panel PC with IR Touch, i5 ITD19PPCT2HBLWJ1
19W”1000nits Chassis Panel PC with Tempered Glass, i5 ITD19PPCG1HBLWI5



APPLICATION
Wide Screen 19" Sunlight Readable Panel PC Industrial Grade With I3 2GB 128G SSD 0



OUR FACTORY
Wide Screen 19" Sunlight Readable Panel PC Industrial Grade With I3 2GB 128G SSD 1
