Name: VESA Mount Multi Touch Panel PC Windows Kiosk Waterproof For Hospital
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD17PPCT5XI*
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900 Quad Core

Memory: DRAM4GB, Max. 8G

Storage: 64G, 120G, 240G, Optional

OS: Windows 7/10. Linux

I/O: 4 X USB,2 X COM, 1 X HDMI,1 X RJ45

24/7/365 Working Supported: Yes

Operating Temperature: -10~60℃ -20~70℃ Optional

MTBF: 50000H

Power: 1 X DC 24V, DC12V, DC9-36V Optional

Failure Rate: 0.6%

Aging Test: 48H

Certificates: CE, FCC, RoHS

Color: Black Or Silver

Highlight:

touch panel computer

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD17PPCT5XI*

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Delivery Time: 7-12 work days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

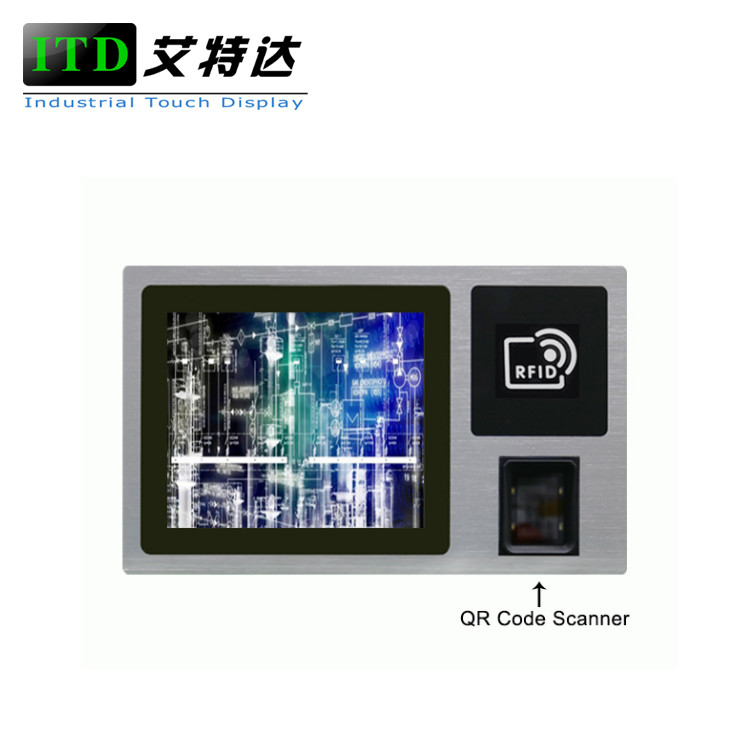

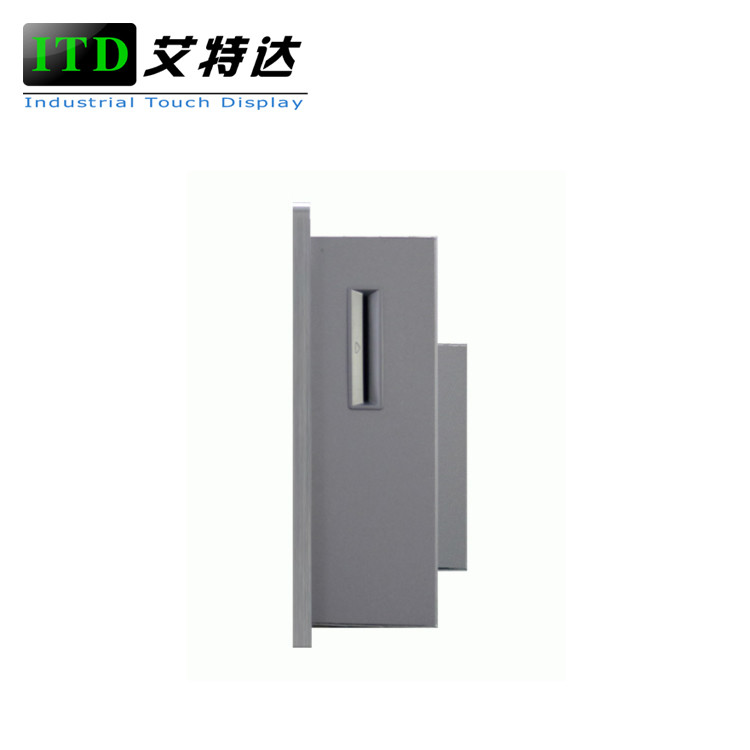

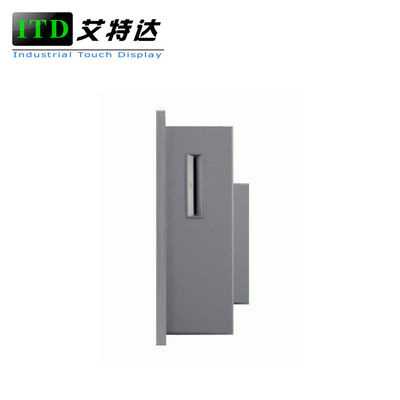

VESA Mount Multi Touch Panel PC Windows Kiosk Waterproof For Hospital

Product Description

VESA mount multi touch screen PC Windows kiosk waterproof front medical panel PC for hospital

The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen or resistive touch screen that combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7 with Projected Capacitive Touch (PCT or PCAP) Technology or single resistive touch in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.

Model	ITD08PPCT5XJ1	ITD101PPCT5XJ1	ITD10PPCT5XJ1	ITD12PPCT5XJ1
Size	8”(4:3)	10.1”(16:9)	10.4” (4:3)	12.1” (4:3)
Active Area	162.0(W) x 121.5(H)	227.0(W) x 131.0(H)	211.2(W) x 158.4(H)	246.0(H) x 184.5(V)
Contrast Ratio	500:1	500:1	500:1	500:1
Resolution	800 x 600	1366 x 768	800 x 600 or 1024 x 768	800 x 600 or 1024 x 768
Brightness	250nits	300nits	300nits	300nits
Viewing Angles	70/70/50/70	80/80/80/80	70/70/60/70	70/70/60/60
Backlight	LED	LED	LED	LED
Model	ITD12PPCT5XJ1W	ITD15PPCT5XJ1	ITD156PPCT5XJ1	ITD17PPCT5XJ1
Size	12.1” (16:10)	15” (4:3)	15.6” (16:9)	17” (5:4)
Active Area	261.12(H) x 163.2(V)	304.12(H)x 228.09(V)	344.23(H)x 193.53(V)	337.92(H) x 270.33(V)
Contrast Ratio	700:1	700:1	500:1	1000:1
Resolution	1280 x 800	1024 x 768	1366 x 768 or 1920 x 1080	1280 x 1024
Brightness	300nits	250nits	250nits	250nits
Viewing Angles	80/80/80/60	80/80/60/70	80/80/80/80	85/85/80/80
Backlight	LED	LED	LED	LED
Model	ITD173PPCT5XJ1	ITD19PPCT5XJ1	ITD19PPCT5XJ1W	ITD21PPCT5XJ1
Size	17.3”(16:9)	19” (5:4)	19” (16:10)	21.5” (16:9)
Active Area	381.88(H) x 214.81(V)	376.32(H) x 301.06(V)	408.32(H) x 255.2(V)	476.64(H)x248.25(V)
Contrast Ratio	700:1	1000:1	1000:1	1000:1
Resolution	1920 x 1080	1280 x 1024	1440 x 900	1920 x 1080
Brightness	300nits	250nits	250nits	250nits
Viewing Angles	80/80/80/80	85/85/80/80	85/85/80/80	85/85/80/80
Backlight	LED	LED	LED	LED

SPECIFICATION

System	CPU	Intel® Bay Trail Celeron Quad Core J1900 2.0GHz Processor
	BIOS	Award BIOS 4/8Mbit SPI Flash ROM
	Chipset	Intel® Bay Trail SOC CPU Integrated
	Memory	1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
	Graphic Chipset	CPU integrated graphics HD and support 1080p
	Storage	32GB SSD or 320GB HDD
	LAN	1 x 10/100/1000Mbps Ethernet
I/O	Serial Ports	1xCOM(10.1”,10.4”); 2xCOM(Default to RS232, RS422/485 optional)
	USB Ports	2XUSB 2.0(10.1”,10.4”); 2XUSB2.0, 2XUSB3.0
	VGA Port	1 x VGA
	HDMI Port	1 x HDMI Port
	Power Port	1 x 12V DC Jack input(ATX is optional)
	Audio Card	Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
	WIFI	Built-in, 802.11a/b/g/h (optional)
Touch Screen	Type	Projected Capacitive Touch Screen with 10 independent touch points (Default to USB Port, RS232 Port Optional)
	Response Time	≤5ms
	Transparency	≥85%
	Lifetime	≥50,000,000 times/click
	OS Support	Windows CE/XP/7/8/10, Linux, Mac, Android
Operating Temperature	-10~60℃ (-20~70℃ Optional)
Storage Temperature	-20~70℃
Operation Humidity	10%~90%(No Condensation)
Mounting Method	VESA, embedded/panel mounting with clamps, desktop stand
Order Information	Flat Bezel PCAP Panel Mounted Panel PC/ITD**PPCT5XJ1
	Flat Bezel Resistive Touch Panel Mounted Panel PC/ITD**PPCT1XJ1
	Flat Bezel Tempered Glass Panel Mounted Panel PC/ITD**PPCG1XJ1

OPTIONAL

•SDD 64GB,128GB up to 521GB

•HDD 500GB up to 1TB

•High brightness, sunlight readable

•Resistive touch screen, tempered glass

•Customization for other inches

•Camera, speakers, RFID reader, GPIO, LPT, M12 power connector

•Black, silver, desktop stand

Product Display:

VESA Mount Multi Touch Panel PC Windows Kiosk Waterproof For Hospital 0
