Name: Vertical Horizontal Lcd Display Industrial PC Touch Screen With NFC RFID Card Reader
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD21PPCT5KI*-NFC/RFIC
Availability: InStock

Vertical Horizontal Lcd Display Industrial PC Touch Screen With NFC RFID Card Reader

1pcs

MOQ

TBA

Price

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel Core I3/i5/i7 Processor

Active Area: 476.64(H) X 248.25(V) Mm

Native Resolution: 1920 X 1080

Brightness: 250 Nits

Graphic Chipset: CPU Integrated Graphics HD And Support 1080p

Serial Ports: 1 X COM

USB Ports: 4 X USB

VGA Port: 1 X VGA

HDMI Port: 1x HDMI Output

Highlight:

touch panel computer

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD21PPCT5KI*-NFC/RFIC

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 5-7 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 10000PCS/Month

Gallery

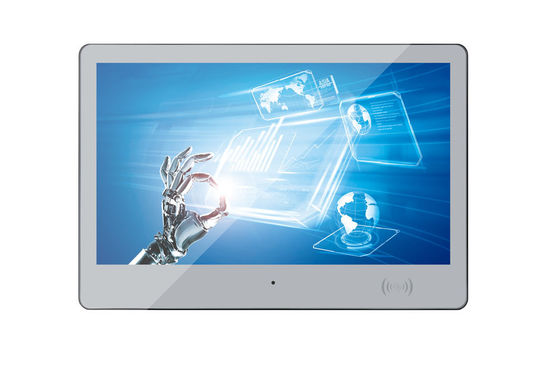

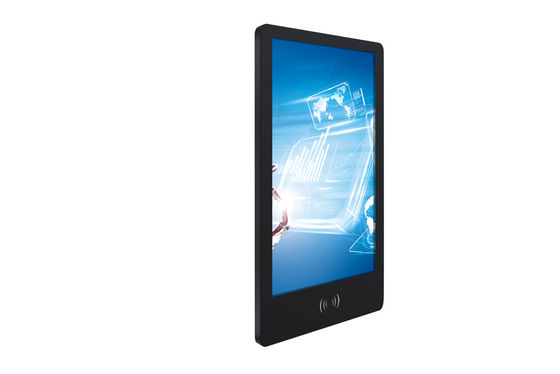

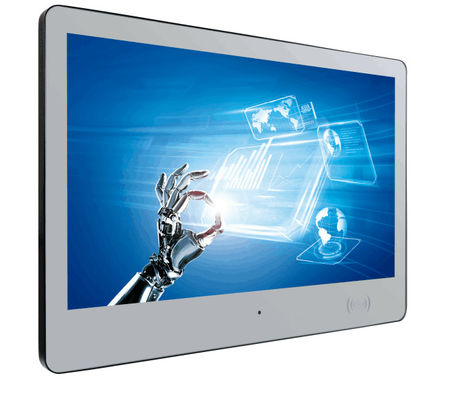

Vertical Horizontal Lcd Display Industrial PC Touch Screen With NFC RFID Card Reader

Product Description

21.5" widescreen vertical horizontal lcd display industrial PC touch screen with NFC RFID card reader intel i3 i5 i7

SPECIFICATIONS

PARAMETERS

Panel	Cell Type/Glass Surface	TFT
	Size	21.5”
	Aspect Ratio	16:9
	Active Area	476.64(H) x 248.25(V)
	Pixel Pitch	0.24825 × 0.24825mm
	Native Resolution	1920 x 1080
	Colors	16.7M
	Brightness	250nits
	Contrast	1000:1
	Response Time	5ms
	Viewing Angle(Typical)	178(H)/178(V)
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU	Intel® Core i3/i5/i7 Processor
	BIOS	Award BIOS 4/8Mbit SPI Flash ROM
	Chipset	Intel Valley View SSA‐Cunit
	Memory	1 x SO-DIMM, DDR3 1333MHz Memory, 4GB, Max.16GB
	Graphic Chipset	CPU integrated graphics HD and support 1080p
	Storage	64G SSD
	LAN	1 x 10/100/1000Mbps Ethernet
Input / Output	Serial Ports	1 x COM
	USB Ports	4 X USB
	VGA Port	1 x VGA
	HDMI Port	1x HDMI Output
	Audio Card	with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
Power	Input Voltage	DC 12V
Power	Operation/Power Saving	72W
Environment Considerations	Operating Temperature	-10~60℃
	Storage Temperature	-20~70℃
	Relative Humidity	10%~90%(Non Condensing)
OS Support	Windows 7/ Windows XP/ Windows 8/ Windows 10/Linux
Order Information	21.5” PCAP Touch Panel PC i3/i5/i7, NFC Reader /ITD21PPCT5KI*-NFC
	21.5” Non Touch Panel PC i3/i5/i7, NFC Reader /ITD21PPCG1KI*-NFC
	21.5” PCAP Touch Panel PC i3/i5/i7, RFID Reader /ITD21PPCT5KI*-RFID
	21.5” Non Touch Panel PC i3/i5/i7, RFID Reader /ITD21PPCG1KI*-RFID
