Name: true flat touch panel PC capacitive touchscreen industrial 17" all in one PC
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD17PPCT5KI5
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model Name: ITD17PPCG1K**

IP Rating: IP65 Front Panel

Screen Diagona: 17"

Display Active Screen: 337.920(H) ×270.336(V) Mm

Physical Resolution: 1280×1024

Brightness (cd/m²): 250nits

View Angels: 85/85/80/80

Touch Technology: Projected Capacitive Touch With 10 Touch Points

Highlight:

touch display pc

touch panel computer

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD17PPCT5KI5

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

true flat touch panel PC capacitive touchscreen industrial 17" all in one PC

Product Description

true flat touch panel PC capacitive touchscreen industrial 17" all in one PC

The new Compact line series of PCAP touch panel PCs from ITD combines the advantages of compact and rugged aluminum die-cast housing with an open platform HMI powered by the Intel Celeron processor J1900 or Intel Core processor i3/i5/i7 as the processor engine. Specifically designed for industrial machinery, intelligent, web-based and smart HMI applications, these Celeron and Core processors are energy efficient and offers other benefits as well.

Specifications:

Zero-Bezel PCAP Touch Panel PC
Model Name		ITD17PPCG1K**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch/cm)		17”
Display Active Screen Size (mm)		337.920(H) ×270.336(V)
Aspect Ratio		4:3
Physical Resolution		1280×1024
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		250nits
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Technology		Projected Capacitive Touch
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Touch Life		50,000,000 Times/Click
Surface Hardness		7H
OS Support		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		22W
Order Information
17” Zero-Bezel Touch Panel PC with PCAP Touch, J1900		ITD17PPCT5KJ1
17” Zero-Bezel Touch Panel PC with Tempered Glass, J1900 17” Zero-Bezel Touch Panel PC with PCAP Touch, i3		ITD17PPCG1KJ1 ITD17PPCT5KI3
17” Zero-Bezel Touch Panel PC with Tempered Glass, i3 17” Zero-Bezel Touch Panel PC with PCAP Touch, i5 17” Zero-Bezel Touch Panel PC with Tempered Glass, i5 17” Zero-Bezel Touch Panel PC with PCAP Touch, i7		ITD17PPCG1KI3 ITD17PPCT5KI5 ITD17PPCG1KI5 ITD17PPCT5KI7
17” Zero-Bezel Touch Panel PC with Tempered Glass, i7		ITD17PPCG1KI7

Product Display:

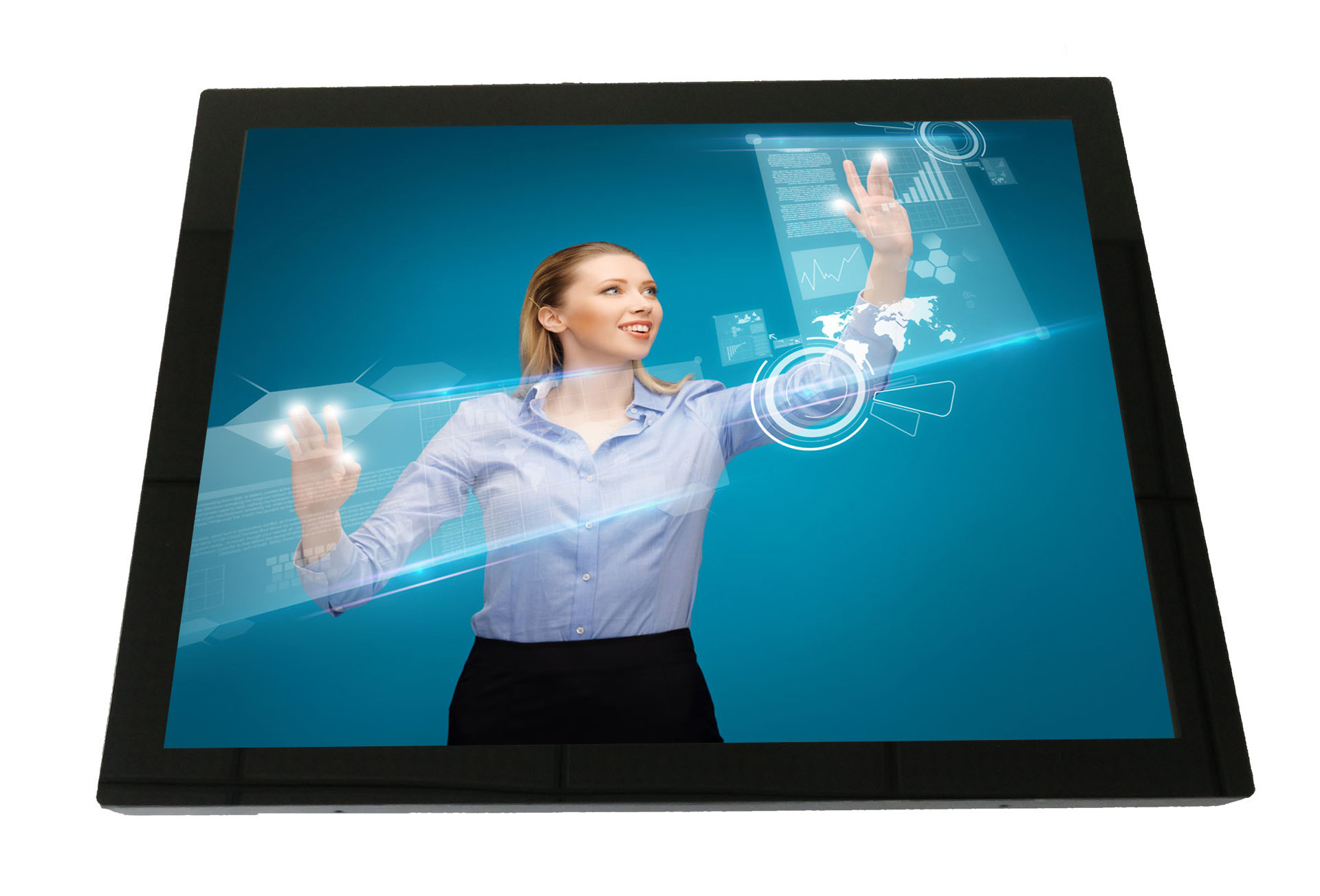

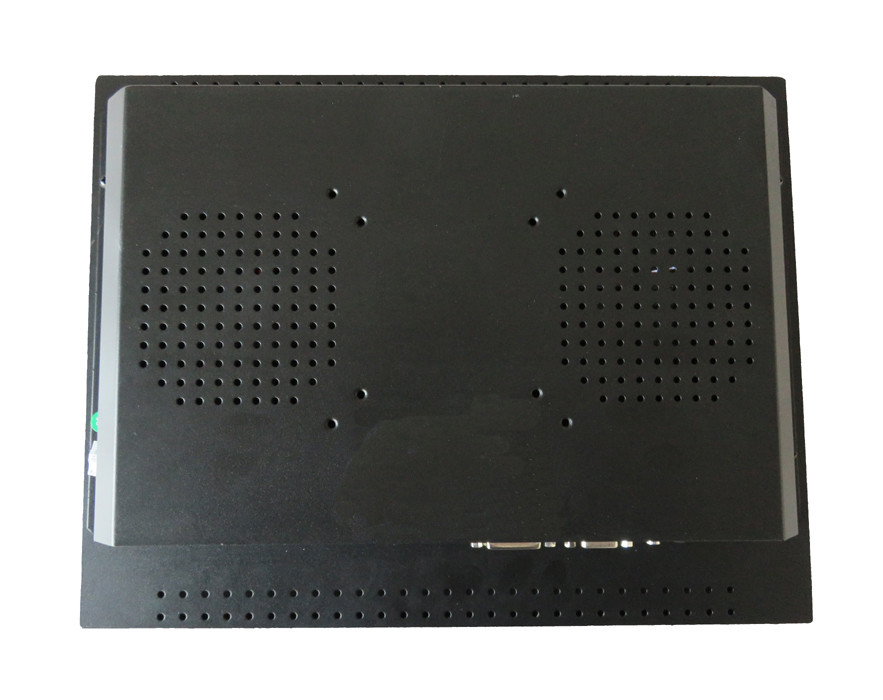

true flat touch panel PC capacitive touchscreen industrial 17" all in one PC 0

Applications:

true flat touch panel PC capacitive touchscreen industrial 17" all in one PC 2
