Name: TFT Industrial All In One PC Touch Screen 7'' Linux Fanless Intel J1900/Z8350
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD07PPCT5KJ1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900 Quad Core 2.0Ghz, Intel Z8350 Optional

Memory: DRAM 2GB

Storage: 64G SSD Max. 1TB

OS: Windows 7/8/10, Linux

I/O: 2 X USB3.0,2 X USB2.0,1 X HDMI,1 X COM, 1 X DC, 1x RJ45

MTBF: 50000h

Operating Temperature: -10~60℃

3G/4G: Optional

Warranty: 1 Year For TFT Panels And 2 Years For Others

Power: 1 X DC 12V,, DC24, DC9-36V Optional

GPS, PoE: Optional

Aging Test: 48H

Housing Type: Aluminum Frame, Steel Back Chassis

Highlight:

touch panel computer

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD/OEM

Certification: CE/ROHS/FCC

Model Number: ITD07PPCT5KJ1

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Delivery Time: 15 work days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

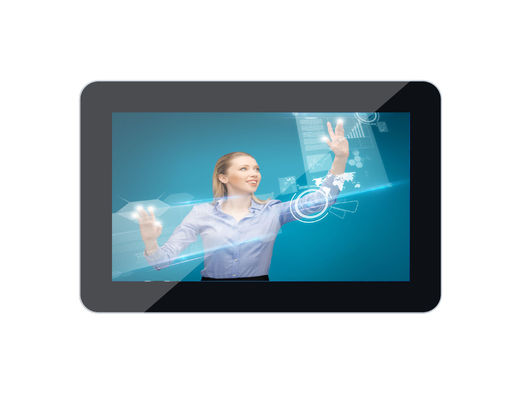

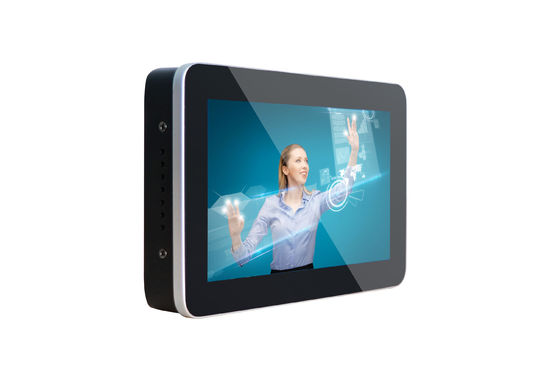

TFT Industrial All In One PC Touch Screen 7'' Linux Fanless Intel J1900/Z8350

Product Description

mini touch panel pc 7inch industrial hmi touch panel linux fanless Intel J1900/Z8350

ITD 7” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, and Projected Capacitive Touch (PCT or PCAP) Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 8” multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.

FEATURES

▪Easy-to-clean, true flat front surface without bezel

▪Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

▪Ten independent touch points (with Windows 7/8, Android, Linux operating systems)

▪Eliminates dust and debris build-up at the edge and corners of the display

▪Provides improved power efficiency and reduced consumption

▪Responds to a light touch to activate response

▪Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings

▪All steel and aluminum frame construction designed for harsh and industrial environments

▪CE, FCC, RoHS Compliance

Panel	Cell Type/Glass Surface	TFT
	Size	7”
	Aspect Ratio	16:9
	Active Area	155.5(H) x 87.5(V)mm
	Pixel Pitch	0.150 × 0.150mm
	Native Resolution	1024 x 600
	Colors	16.7M
	Brightness	300cd/㎡
	Contrast	800:1
	Response Time	10/15ms
	Viewing Angle(Typical)	85/85/85/85
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU	Intel® Celeron J1900 2.0GHz Processor
	BIOS	AMI
	Chipset	Intel VallVieW SSA‐Cunit
	Memory	1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
	Graphic Chipset	CPU integrated graphics HD and support 1080p
	Storage	64GB SSD
	LAN	1 x 10/100/1000Mbps Ethernet
Input / Output	Serial Ports	1 x COM
	USB Ports	4 X USB
	VGA Port	1 x VGA
	HDMI Port	1x HDMI Port
	Audio Card	with Realtek ALC662 Line-Out/MIC IN
Power	Input Voltage	DC 12V
Power	Operation/Power Saving	15W
Environment Considerations	Operating Temperature	-10~60℃
	Storage Temperature	-20~70℃
	Relative Humidity	10%~90%
OS Support	Windows 7/ Windows XP/ Windows 8/ Linux
Mounting Method	VESA, side mounting brackets optional
Accessories	Power cable, Motherboard CD driver, Screws
Order Information	7” Zero-Bezel Panel PC with PCAP Touch J1900/ITD07PPCT5KJ
Order Information	7” Zero-Bezel Panel PC with Tempered Glass J1900/ITD07PPCG1KJ

Typical Application

Banking Automation

Gaming/Casino Systems

Self-Service Kiosks

Entertainment

Transport and Ticketing

In-Home Control Devices

Automation

Vehicle

Marine

Security

Customized Solutions
