Name: Stainless Steel Rugged Panel PC Resistive / Capacitive Touch Screen 17" High Brightness
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD17PPCT5HBIPSE1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

View Angels: 85/85/80/80

IP Rating: IP65/IP66/IP67

Touch Options: Capacitive

Resolution: 1280 X 1024

System: Windows 7/Windows 8/Windows 10

Serial Ports: 1x COM (Optional)

USB Ports: 1 X USB 2.0(Waterproof Connector And Cable)

Power Port: 1 X 12V DC Jack(Waterproof Connector And Cable)

LAN: 1 X 10/100/1000Mbps Ethernet(Waterproof Connector And Cable)

CPU: J1900/I3/I5/I7 Optional

Highlight:

rugged industrial computers

rugged industrial pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD17PPCT5HBIPSE1

Payment & Shipping Terms

Packaging Details: 1pcs/CTN, Safe, Firm, suitable for international shipping

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000PCS/Month

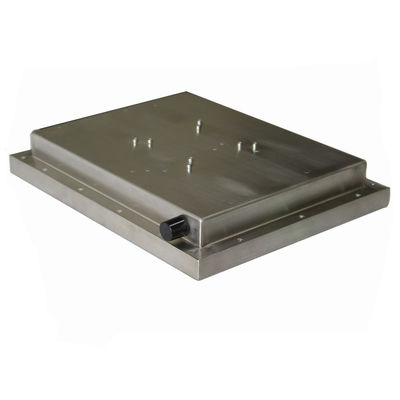

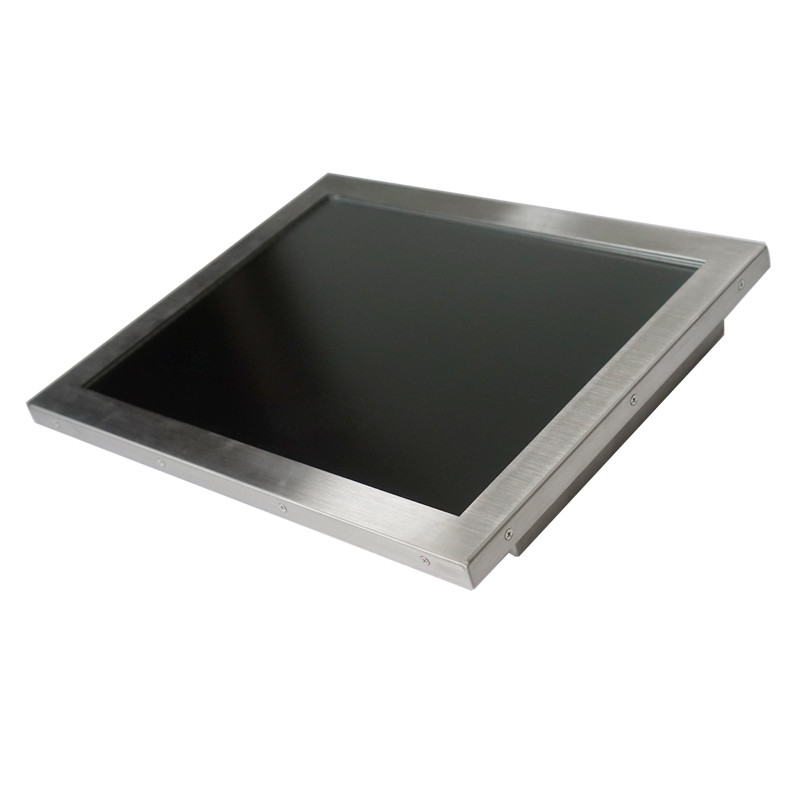

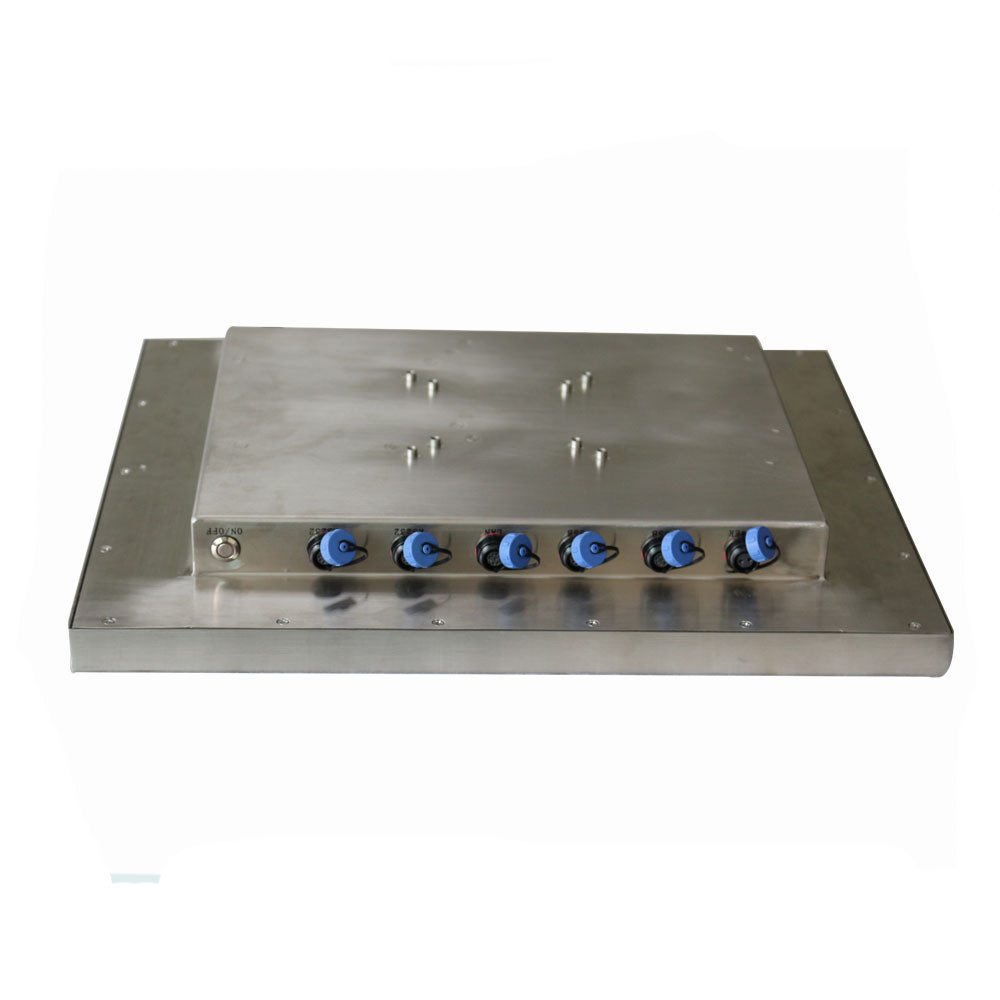

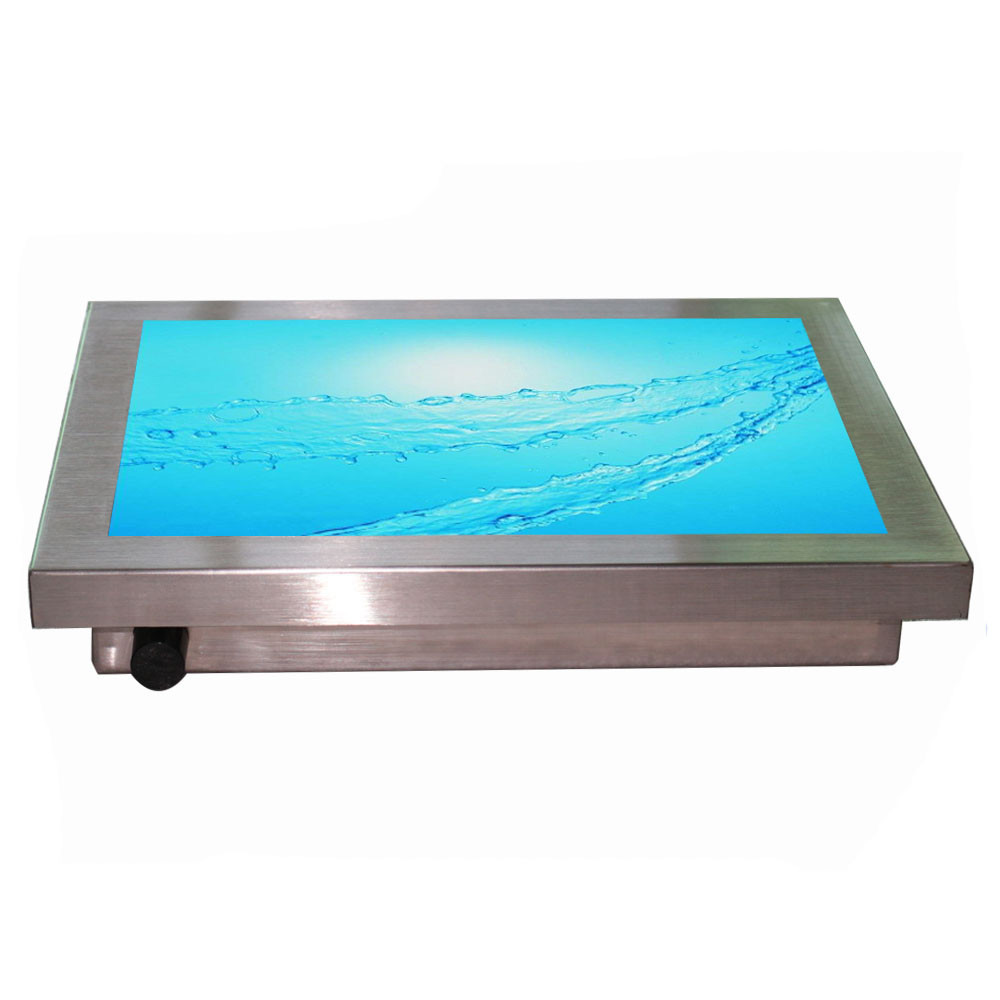

Gallery

Stainless Steel Rugged Panel PC Resistive / Capacitive Touch Screen 17" High Brightness

Product Description

17" Rugged Stainless Steel Panel PC with Resistive/Capacitive touch screen and High Brightness optional

ITD rugged industrial rugged full IP66/IP67 LCD display series features industrial-duty fully sealed NEMA 4/IP66 stainless steel chassis, for specially use in hygienic and harsh environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.

SPECIFICATION

Model	ITD07CMG1IPS1	ITD08CMG1IPS1	ITD09CMG1IPS1	ITD10CMG1IPS1
Size	7”	8.4”	9.7”	10.4”
Active Area	152.4(W) x 91.44(H)	170.4(W) x 127.8(H)	196.608(W) x 147.456(H)	211.2(W) x 158.4(H)
Pixel Pitch	0.1905	0.213	0.192	0.264
Contrast Ratio	500:1	600:1	500:1	500:1
Resolution	800 x 480 or 1024 x 600	800 x 600	1024 x 768	800 x 600 or 1024 x 768
Brightness	300nits	250nits	350nits	300nits
Viewing Angles	80/80/80/80	80/80/80/60	80/80/80/80	70/70/60/70
Response Time	30ms	30ms	25ms	35ms
Colors	262K	262K	262K	262K
Backlight	LED	LED	LED	LED
Model	ITD12CMG1IPS1	ITD15CMG1IPS1	ITD17CMG1IPS1	ITD19CMG1IPS1
Size	12.1”	15”	17”	19”
Active Area	246.0(H) x 184.5(V)	304.12(H)x 228.09(V)	337.92(H) x 270.33(V)	376.32(H) x 301.06(V)
Pixel Pitch	0.3075	0.297	0.264	0.294
Contrast Ratio	700:1	700:1	1000:1	1000:1
Resolution	800 x 600 or 1024 x 768	1024 x 768	1280 x 1024	1280 x 1024
Brightness	300nits	250nits	250nits	250nits
Viewing Angles	70/70/60/70	80/80/60/70	85/85/80/80	85/85/80/80
Response Time	35ms	35ms	5ms	5ms
Colors	262K	16.2M	16.7M	16.7M
Backlight	LED	LED	LED	LED
Model	ITD21CMG1IPS1	ITD24CMG1IPS1	ITD27CMG1IPS1	ITD32CMG1IPS1
Size	21.5”	24”	27”	32”
Active Area	476.64(H)x248.25(V)	531.36(H)x298.89(V)	597.6(H)x336.15(V)	698.4(H)x392.85(V)
Pixel Pitch	0.248	0.2768	0.3114	0.3638
Contrast Ratio	1000:1	1000:1	1000:1	1200:1
Resolution	1920 x 1080	1920x1080	1920x1080	1920x1080
Brightness	250nits	300nits	300nits	400nits
Viewing Angles	85/85/80/80	89/89/89/89	89/89/89/89	89/8/9/89/89
Response Time	5ms	5ms	5ms	8ms
Colors	16.7M	16.7M	16.7M	16.7M
Backlight	LED	LED	LED	LED
Model	ITD43CMG1IPS1	ITD49CMG1IPS1	ITD55CMG1IPS1	ITD65CMG1IPS1
Size	43”	49”	55”	65”
Active Area	930.24(H)x523.26(V)	1073.78mm(W)×604mm(H	1209.6(H)x680.4(V)	1428.48(H)x803.52(V)
Pixel Pitch	0.4902	0.55926	0.63	0.744
Contrast Ratio	1200:1	1100:1	1400:1	1400:1
Resolution	1920x1080	1920x1080	1920 x 1080	1920 x 1080
Brightness	400nits	450nits	400nits	400nits
Viewing Angles	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Response Time	12ms	6ms	8ms	8ms
Colors	16.7M	16.7M	16.7M	16.7M
Backlight	LED	LED	LED	LED

Input Signal Connectors	VGA (Waterproof Connector)
	Power (Waterproof Connector)
	USB/RS232 (Waterproof Connector) Optional for Touch Connection
Power Input	External DC 12V for 7”~24”; Internal AC 110-240V for 27”~65”
Power Consumption	TBA
Operating Temperature	-20~60℃ for 7”~24”; -20~50℃ for 27”~65”
Storage Temperature	-20~70℃
Operating Humidity	10%~90% (Non Condensing)
Order Information	Full IP66 stainless steel monitor with tempered glass/ITD**CMG1IPS1
	Full IP66 stainless steel monitor with Resistive touch/ITD**CMT1IPS1
	Full IP66 stainless steel monitor with PCAP touch/ITD**CMT5IPS1
	Full IP66 aluminum alloy monitor with tempered glass/ITD**CMG1IPA1
	Full IP66 aluminum alloy monitor with Resistive touch/ITD**CMT1IPA1
	Full IP66 aluminum alloy monitor with PCAP touch/ITD**CMT5IPA1
	Full IP66 steel monitor with tempered glass/ITD**CMG1IPX1
	Full IP66 steel monitor with Resistive touch/ITD**CMT1IPX1
	Full IP66 Steel Monitor with PCAP touch/ITD**CMT5IPX1
	Full IP67 stainless steel monitor with tempered glass/ITD**CMG1IPS7
	Full IP67 stainless steel monitor with Resistive touch/ITD**CMT1IPS7
	Full IP67 stainless steel monitor with PCAP touch/ITD**CMT5IPS7

Product Display:
Stainless Steel Rugged Panel PC Resistive / Capacitive Touch Screen 17" High Brightness 0

APPLICATION
