Name: stainless steel panel PC rugged all in one PC waterproof NEMA 4 rated
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD12PPCG1IP**
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900/i3/i5/i7/RK3288

Screen Diagonal: 12.1"

Touch Type: PCAP Touch, Resistive Touch, IR Touch

Material: Stainless Steel Housing Or Aluminum

Aspect Ratio: 4:3

View Angels: 80/80/70/70

Backlife: LED Backlight With 50000 Hours’lifetime

Physical Resolution: 1024X768

MTBF: 50000hours

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD12PPCG1IP**

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Delivery Time: 15-20 working days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

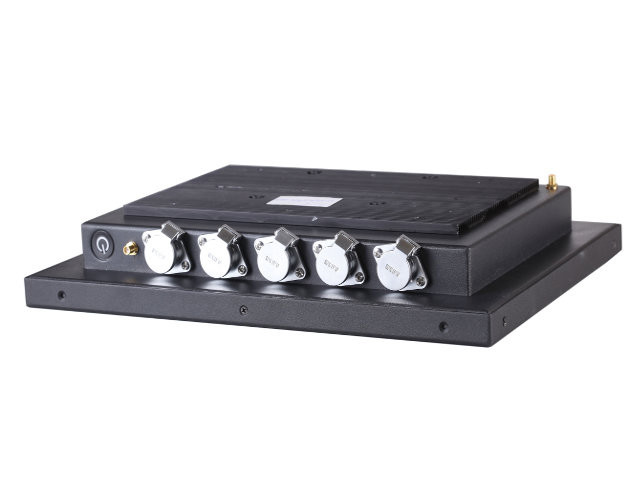

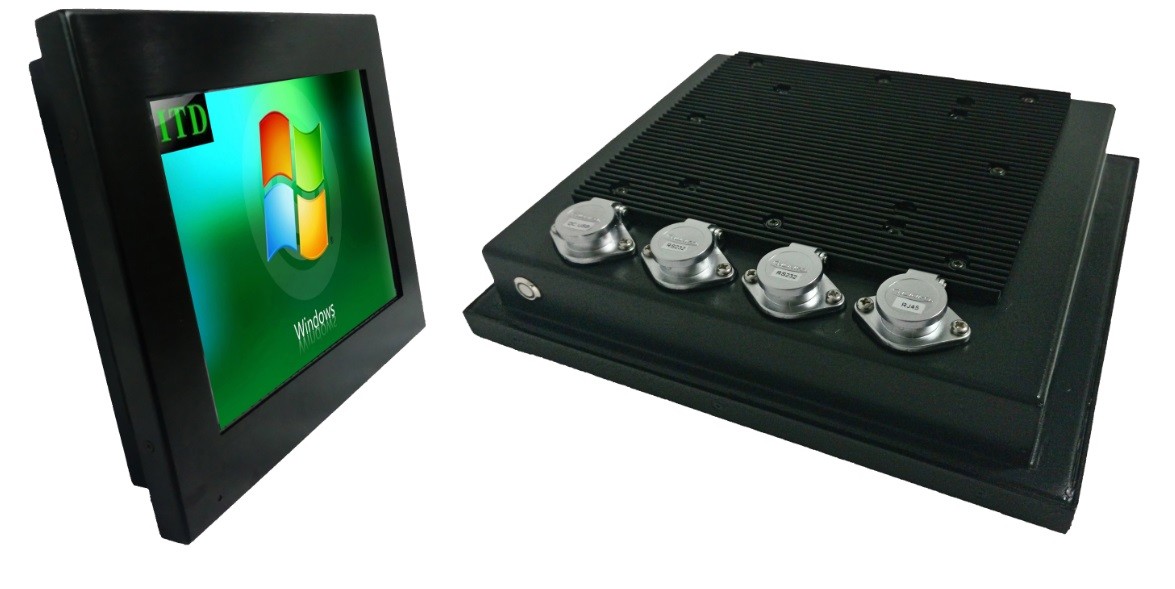

stainless steel panel PC rugged all in one PC waterproof NEMA 4 rated

Product Description

stainless steel panel PC rugged all in one PC waterproof NEMA 4 rated

The ITD Full IP65/IP66 12.1” panel PC is an Intel® Celeron™ Quad Core Processor J1900 2.0 GHz based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.

Options

•SDD 64GB,128GB up to 526GB
•HDD 500GB up to 1TB
Optical bonding, High brightness
•Resistive/IR touch screen, AR/AG tempered glass
•Full IP67
•Aluminum alloy housing, Steel housing

Specifications

Panel	Cell Type/Glass Surface	TFT LCD
	Aspect Ratio/Size	12.1” 4:3
	Active Area	246.0(H) x 184.5(V)mm
	Pixel Pitch	0.3075(H) x 0.3075(V)mm
	Native Resolution	800 x 600(1024 x 768 optional)
	Contrast	800:1
	Colors	262K
	Contrast Ratio	300nits
	Response Time	10/15ms
	Viewing Angle (Typical)	80/80/60/80
	Light Source	LED Backlight with 50000Hours’ Lifetime
System	CPU	Intel® Baytrail Celeron Quad Core J1900 2.0GHz Processor
	BIOS	AMI
	Chipset	Intel® Baytrail SOC CPU Integrated
	Memory	2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
	Graphic Chipset	CPU integrated graphics HD and support 1080p
	Storage	SSD/HDD
I/O	Serial Ports	1x COM (Optional)
	USB Ports	2 x USB 2.0(Waterproof Connector and Cable)
	Power Port	1 x 12V DC Jack (Waterproof Connector and Cable)
	LAN	1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable)
	WIFI	Built-in, 802.11a/b/g/h (optional)
Touch Screen	Type	Projected Capacitive Touch Screen with 10 independent touch points
	Response Time	≤5ms
	Transparency	≥85%
	Lifetime	≥50,000,000 times/click
	OS Support	Windows CE/XP/7/8/10, Linux, Mac, Android
General	Power Input	DC 12V
	Power Switch	Optional
	Mounting	100 x 100mm VESA Mount
Operation/Power Saving	33W
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
OS Support	Windows 7/ Windows XP/ Windows 8/Window 10/ Linux
Order Information	12.1” Stainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD12PPCG1IPSJ1
	12.1” Stainless Steel Full IP65/IP66 Panel PC J1900 with RESISTIVE Touch: ITD12PPCT1IPSJ1
	12.1” Stainless Steel Full IP65/IP66 Panel PC J1900 with IR Touch: ITD12PPCT2IPSJ1
	12.1” Stainless Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD12PPCG1IPSJ7
	12.1” Stainless Steel Full IP67 Panel PC J1900 with RESISTIVE Touch: ITD12PPCT1IPSJ7
	12.1” Stainless Steel Full IP67 Panel PC J1900 with PCAP Touch: ITD12PPCT5IPSJ7
	12.1” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD12PPCG1IPAJ1
	12.1” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with RESISTIVE Touch: ITD12PPCT1IPAJ1
	12.1” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with IR Touch: ITD12PPCT2IPAJ1
	12.1” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD12PPCT5IPAJ1
	12.1” Aluminum Alloy Full IP67 Panel PC J1900 with Tempered Glass: ITD12PPCG1IPAJ7
	12.1” Aluminum Alloy Full IP67 Panel PC J1900 with RESISTIVE Touch: ITD12PPCT1IPAJ7
	12.1” Aluminum Alloy Full IP67 Panel PC J1900 with PCAP Touch: ITD12PPCT5IPAJ7

stainless steel panel PC rugged all in one PC waterproof NEMA 4 rated 0
