Home /Products/Stainless Steel Panel PC/Stainless Steel 43 55 Inch IP65 Capacitive Touch Screen PC

Stainless Steel 43 55 Inch IP65 Capacitive Touch Screen PC

1 unit
MOQ
Stainless Steel 43 55 Inch IP65 Capacitive Touch Screen PC
Features Gallery Product Description Request A Quote
Features
Specifications
CPU: Intel J1900, Intel I3/i5/i7
Material: Stainless Steel Housing
Screen Diagonal: 43"55" Max. 65"
Physical Resolution: 1920*1080
View Angels: 89/89/89/89
Backlife: LED Backlight With 50000 Hours’lifetime
Card Reader: Optional
IP Rate: Full IP65 IP66 IP67
Touch Screen: PCAP Touch Or IR Touch
Lifespan: 50000hours
Highlight:

linux windows rugged industrial pc

,

ip65 rugged all in one pc
Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE/ROHS/FCC
Model Number: ITD43PPCT5IPSJ1
Payment & Shipping Terms
Packaging Details: Foam,gift box,master carton,wooden case,pallet
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 unit per month
Product Description

43inch 55inch stainless steel IP65 panel PC capacitive touch screen Linux Windows based



The ITD Full IP65/IP66 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.



FEATURES

•Robust stainless steel/aluminum alloy enclosure, sealed I/O from particles, water, and corrosive agents

•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection

•Rugged stainless steel/aluminum alloy enclosure design with high EMC and IP65/IP66 NEMA4/4X protection

•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports

•Flexible, reliable, and ruggedized for open platform HMI/SCADA

•Provides improved power efficiency and reduced consumption

•CE, FCC, RoHS Compliance

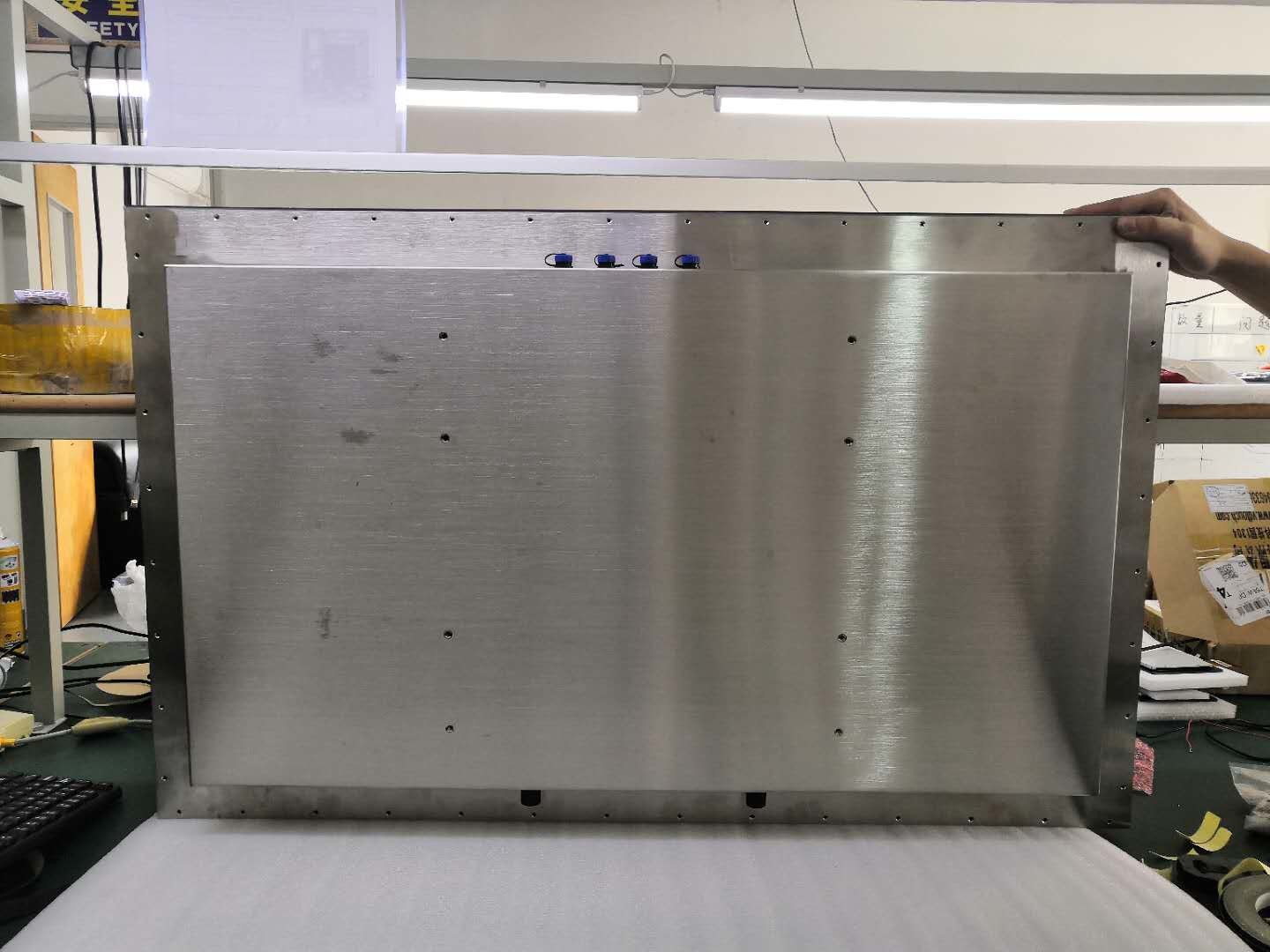

Stainless Steel 43 55 Inch IP65 Capacitive Touch Screen PC 0

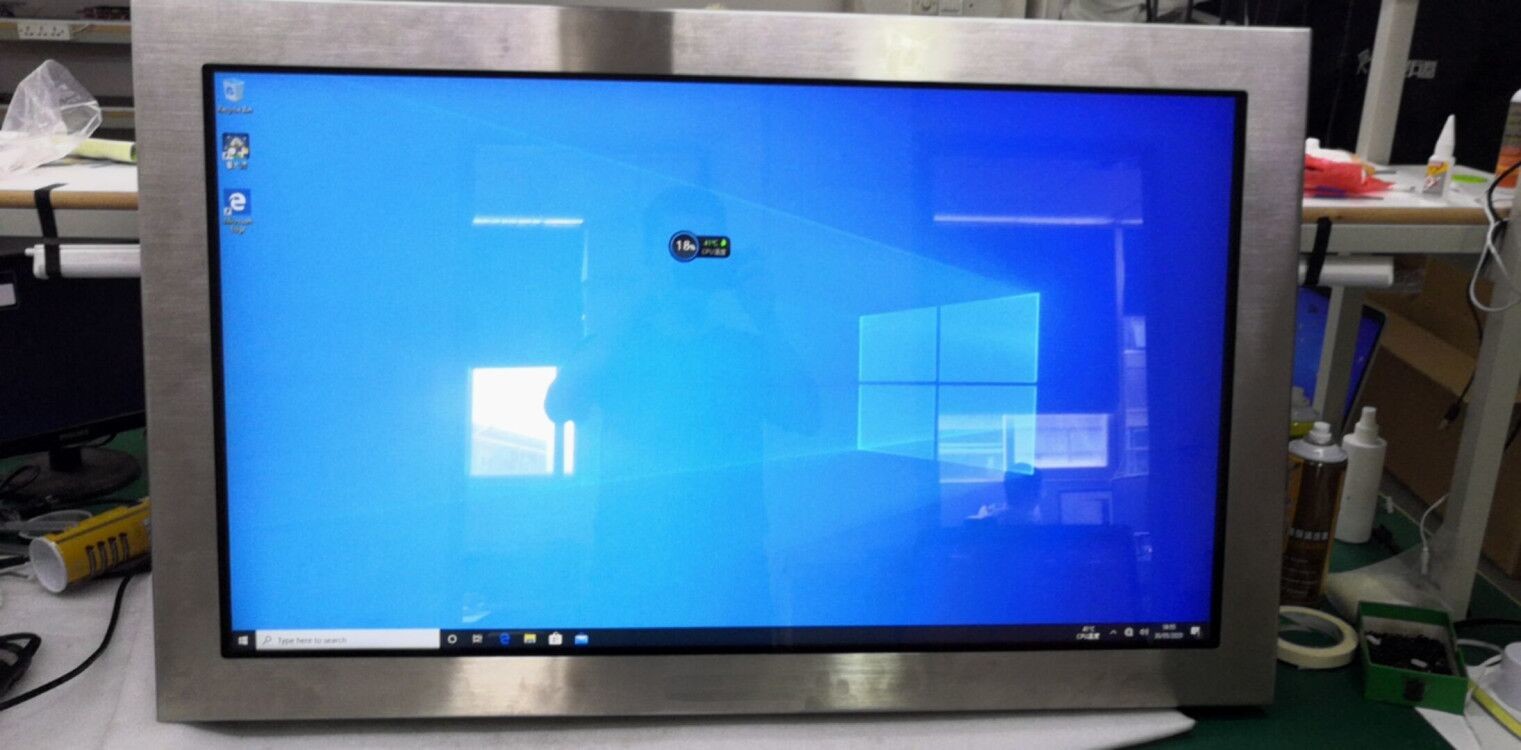

Stainless Steel 43 55 Inch IP65 Capacitive Touch Screen PC 1

OPTIONALS

• DC 24V, DC9-36V, AC100-240V • Optical bonding, IP67
• IR, PCAP touch screen, AR/AG tempered glass • WIFI, 3G, 4G, Bluetooth
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc. • Stainless Steel, Aluminum Alloy



DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 43”/16:9
Active Area/ Pixel Pitch 941.184(H)x529.416(V)mm/0.4902 × 0.4902mm
Native Resolution/ Colors 1920 x 1080/16.7M
Brightness/ Contrast 400cd/㎡/1200:1
Response Time/ Viewing Angle(Typical) 8ms/89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage 8GB: 16GB/32GB/64GB Optional 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage AC100-240V Input
Operation/Power Saving 90~140W
Environment Considerations Operating Temperature 0~50℃
Storage Temperature -10~60℃
Mounting VESA Mount, Panel/Embedded Mount optional
Order Information 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD43PPCG1IP*E2
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with IR Touch: ITD43PPCT2IP*E2
43” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD43PPCT5IP*E2
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD43PPCG1IP*J2
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with IR Touch: ITD43PPCT2IP*J2
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD43PPCT5IP*J2
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD43PPCG1IP*I3
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with IR Touch: ITD43PPCT2IP*I3
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD43PPCT5IP*I3
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD43PPCG1IP*I5
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with IR Touch: ITD43PPCT2IP*I5
43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD43PPCT5IP*I5

DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 55”/16:9
Active Area/ Pixel Pitch 1209.6mm(W) × 680.4mm(H)/0.630 × 0.630mm
Native Resolution/ Colors 1920 × 1080/16.7M
Brightness/ Contrast 350cd/㎡/1400:1
Response Time/ Viewing Angle(Typical) 8ms/89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage 8GB: 16GB/32GB/64GB Optional 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux



GENERAL





Power Input Voltage AC100-240V Input
Operation/Power Saving 120~180W
Environment Considerations Operating Temperature 0~50℃
Storage Temperature -10~60℃
Mounting VESA Mount, Panel/Embedded Mount optional
Order Information 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD55PPCG1IP*E2
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with IR Touch: ITD55PPCT2IP*E2
55” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD55PPCT5IP*E2
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD55PPCG1IP*J2
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with IR Touch: ITD55PPCT2IP*J2
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD55PPCT5IP*J2
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD55PPCG1IP*I3
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with IR Touch: ITD55PPCT2IP*I3
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD55PPCT5IPS*I3
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD55PPCG1IP*I5
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with IR Touch: ITD55PPCT2IP*I5

55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD55PPCT5IP*I5
