Name: Professional Industrial Rugged Panel PC With LED Backlight , CE FCC Standard
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD12PPCG1IP**
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Size: 12.1 Inch

Display Active Screen Size: 248(H) X 186(V)mm

24/7/365 Use: Supported

View Angels: 80/80/70/70

PC System Options: ARM Android Based RK3288/X86 Windows Based

IP Rating: IP65/IP66

Brightness: 300 Nits

Touch Options: Resistive, PCAP

Highlight:

rugged industrial pc

rugged all in one pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD12PPCG1IP**

Payment & Shipping Terms

Packaging Details: 1pcs/CTN, Safe, Firm, suitable for international shipping

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000PCS/Month

Gallery

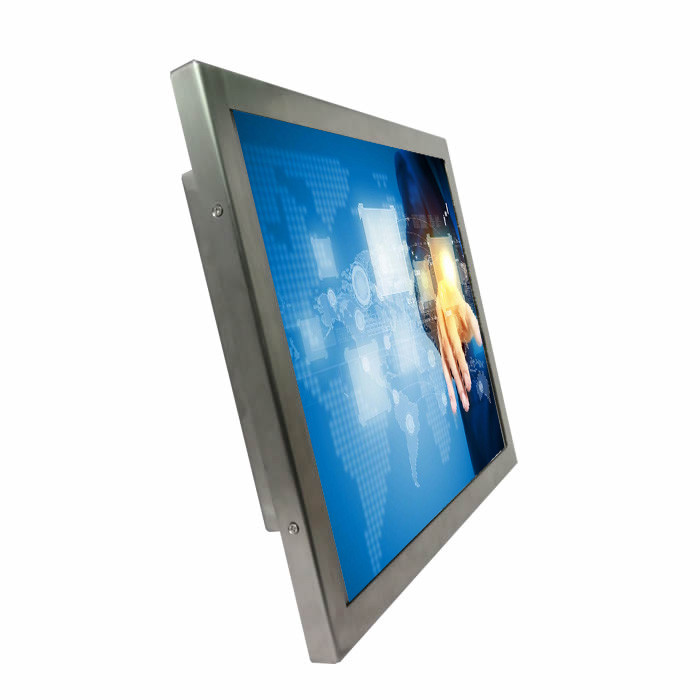

Professional Industrial Rugged Panel PC With LED Backlight , CE FCC Standard

Product Description

12.1”Full IP65/IP66 Touchscreen Panel PC

Specifications:

Full IP65/IP66 Touchscreen Panel PC
Model Name		ITD12PPCG1IP**
IP Rating		IP65/IP66(IP67 optional)
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe

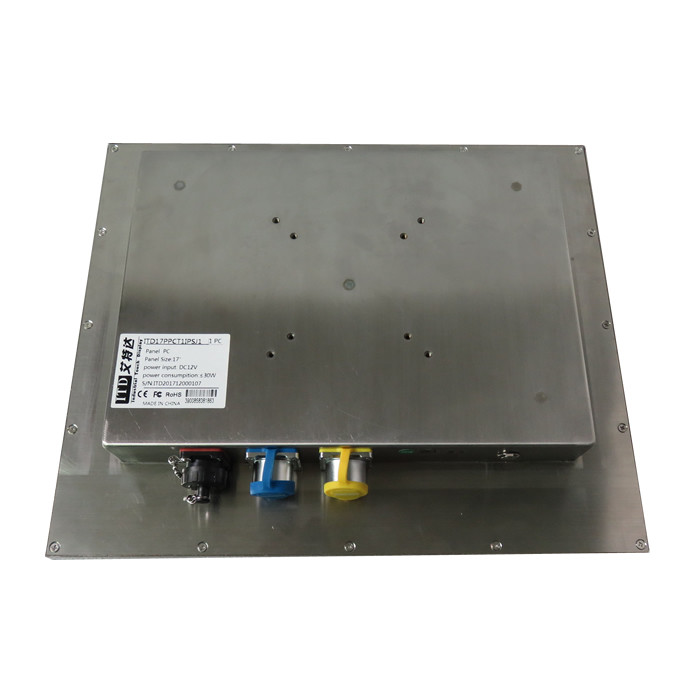

Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0
LCD Panel
Screen Diagonal (Inch/cm)		12.1”
Display Active Screen Size (mm)		248(H) x 186(V)mm
Aspect Ratio		4:3
Physical Resolution		800 x 600
Maximum Resolution Supported		1920 x 1080
Colors		16.7M
Brightness (cd/m²)		300nits
Contrast Ratio		700:1
View Angels		80/80/70/70
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		Resistive, PCAP
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC12V
Power Consumption		22W
Order Information
12.1”Full IP65/IP66 Panel PC with Resistive Touch, J1900		ITD12PPCT1IPJ1
12.1”Full IP65/IP66 Panel PC with PCAP Touch, J1900		ITD12PPCT5IPJ1
12.1”Full IP65/IP66 Panel PC with Tempered Glass, J1900		ITD12PPCG1IPJ1
12.1”Full IP65/IP66 Panel PC with Resistive Touch, i3		ITD12PPCT1IPI3
12.1”Full IP65/IP66 Panel PC with PCAP Touch, i3		ITD12PPCT5IPI3
12.1”Full IP65/IP66 Panel PC with Tempered Glass, i3		ITD12PPCG1IPI3

The rugged design of ITD industrial multi touch panel PC computers enable them to withstand and endure extreme environmental conditions such as vibration, oil, and water; without faltering or malfunctioning. Thanks to the special mounting frame, these panel PCs are easily installed into machinery, control panels and switching cabinets. These units are ideal for applications including process visualization, machine and operating data acquisition, order selection terminals, or even employee time and attendance tracking.

FEATURES

- Intel 6th Generation Core i3/i5/i7 CPU

- Sunlight Readable LCD Screen Option

- Up to 16GB with DDR4 2133MHz memory

- Fanless Die Cast Aluminum Housing with IP65 Protected Front

- Wide Range 9~36VDC Power Input Optional

APPLICATION
