Name: Professional 1080P Touch Panel PC For Harsh Environment Industrial Usage
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD24PPCT5LJ1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900/i3/i5/i7/Android

Active Are: 531.36(H)×298.89(V) Mm

Screen Diagonal: 24"

Operating Humidity: 10%-90% (Non Condensing)

Touchscreen: Resistive, PCAP,IR

Name: Industrie Touch Panel PC

Resolution: 1920X1080

View Angels: 85/85/80/80

Highlight:

touch display pc

touch panel computer

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD24PPCT5LJ1

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 5-15 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 10000PCS/Month

Gallery

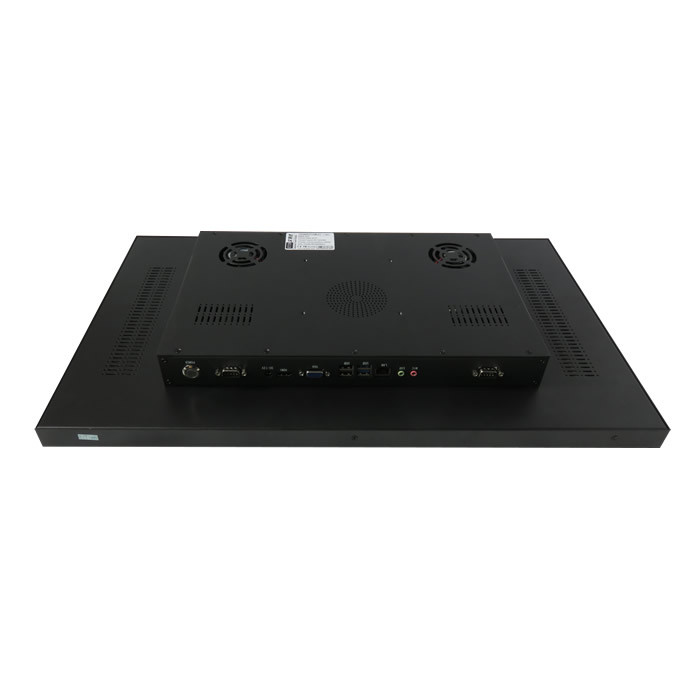

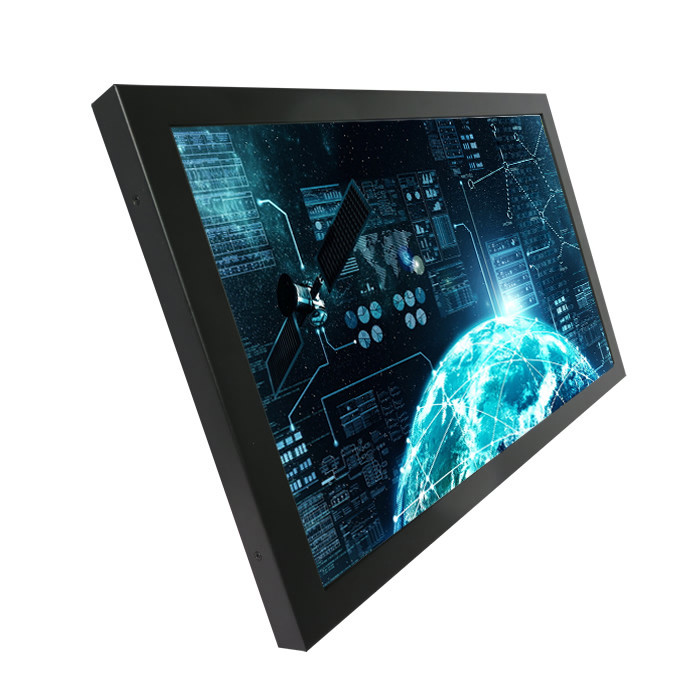

Professional 1080P Touch Panel PC For Harsh Environment Industrial Usage

Product Description

1080P high definition 24 inch touch panel PC for harsh environment industrial usage

Specifications:

Chassis Panel PC
Model Name		ITD24PPCG1L**
IP Rating		IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		24”
Display Active Screen Size (cm)		531.36(H)×298.89(V)
Aspect Ratio		16:9
Physical Resolution		1920×1080
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		250
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		Internal Power Supply, AC 100V~240V
Power Consumption		71.25W
Order Information
24”Chassis Panel PC with Resistive Touch, J1900		ITD24PPCT1LJ1
24”Chassis Panel PC with PCAP Touch, J1900		ITD24PPCT5LJ1
24”Chassis Panel PC with IR Touch, J1900		ITD24PPCT2LJ1
24”Chassis Panel PC with Tempered Glass, J1900		ITD24PPCG1LJ1
24”Chassis Panel PC with Resistive Touch, i5		ITD24PPCT1LI5
24”Chassis Panel PC with PCAP Touch, i5		ITD24PPCT5LI5
24”Chassis Panel PC with IR Touch, i5		ITD24PPCT2LJ1
24”Chassis Panel PC with Tempered Glass, i5		ITD24PPCG1LI5

ITD industrial touch panel PC-based HMIs offers many benefits including: cost reduction, a lightweight frame, high dimensional stability, superior corrosion resistance, improved mechanical properties, high thermal and electrical conductivity, and the ability to retain strength at high temperatures.
