Name: open frame panel PC 15 inch capacitive touch screen computer for kiosk
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD15PPCT5FJ1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Housing Material: Steel Chassis, Open Frame

Color: Black Or Silver

Housing Type: Chassis Mount, VESA Mounting, Rear Mount

MTBF: 50000Hours

Operating Temperature: -10~60℃(-20~70℃ Optional)

Operating Humidity: 10%-90% (Non Condensing)

24/7/365 Use: Supported

Brightness: 1000nits

CPU: J1900 Intel I3/i5/i7 Optional

Resolution: 1024*768

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD15PPCT5FJ1

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000PCS/Month

Gallery

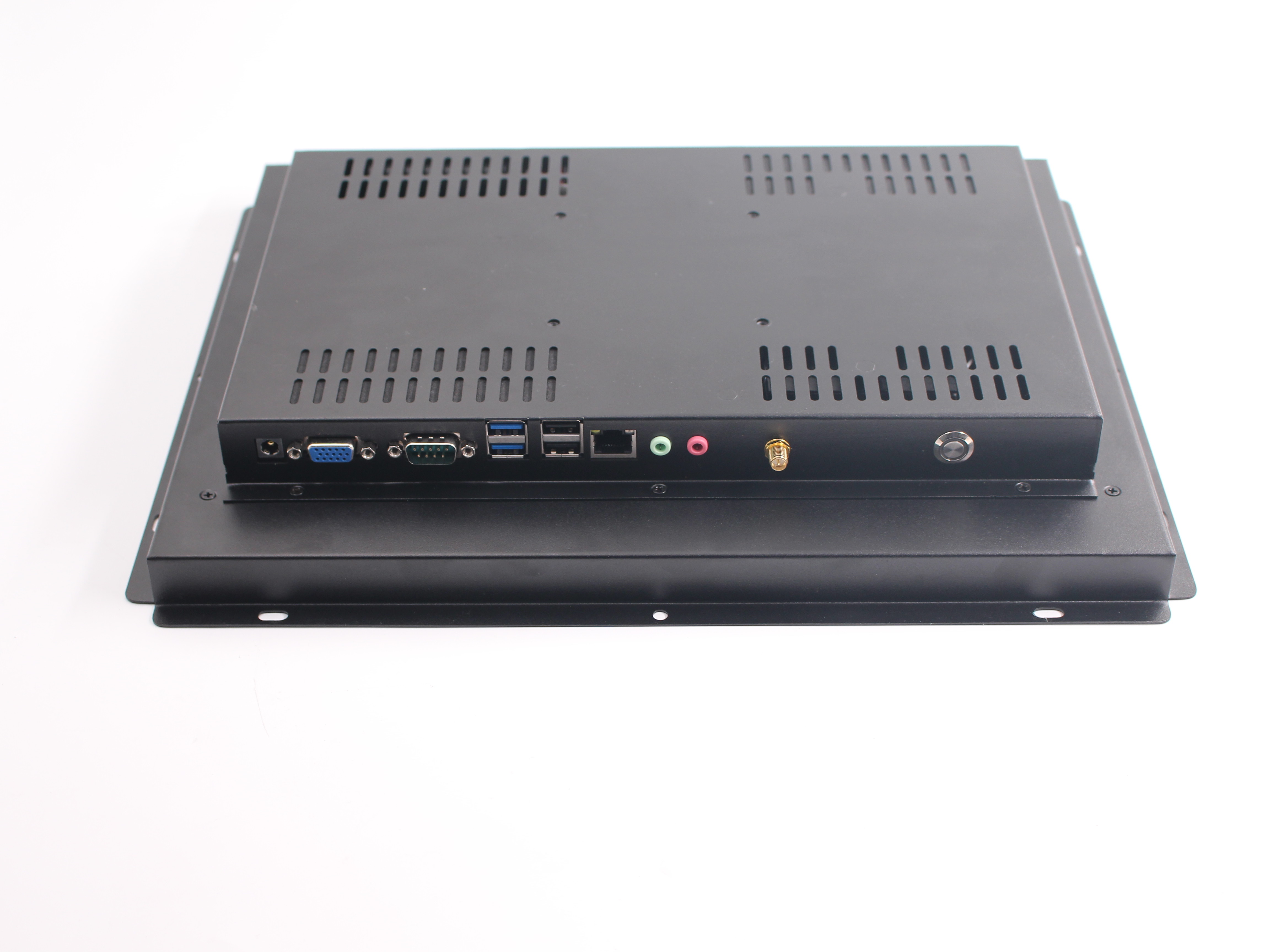

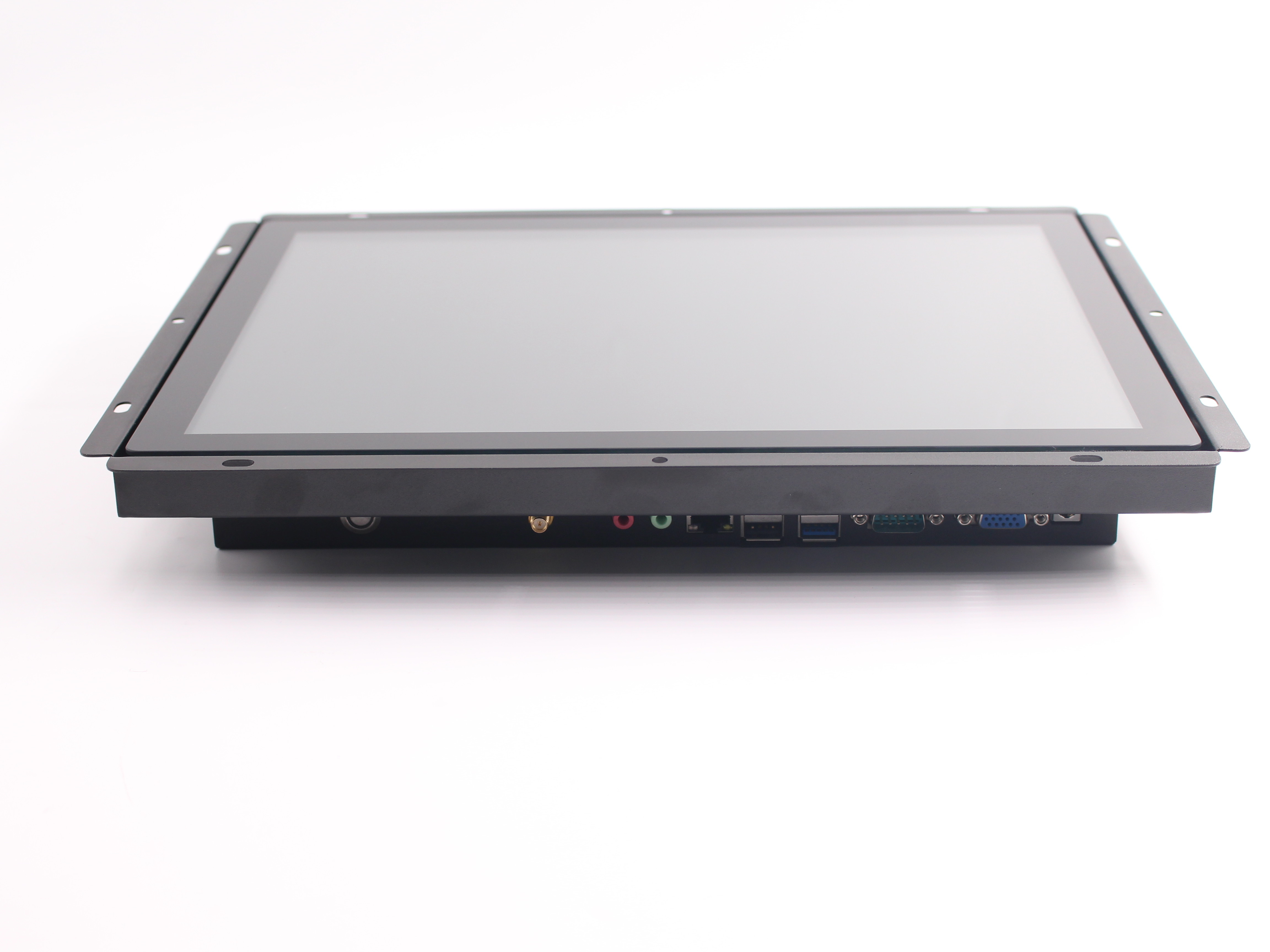

open frame panel PC 15 inch capacitive touch screen computer for kiosk

Product Description

open frame panel PC 15 inch capacitive touch screen computer for kiosk

ITD HMI comfort open frame panel PC is fully-integrated‚ combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, and optional touchscreen integrated in industrial-grade LCD flat panels, with sleek and open frame chassis industrial design. This open frame panel PC series with bezel-less display provides design flexibility for customers without any limitation, which can be easily installed in any enclosures.

BENEFITES

▪Open platform enables Machine-to-Machine (M2M) and Internet of Things (IoT) applications

computers for open platform HMI/SCADA

▪ Long lasting product cycle for continuity thru all phases of project rollouts and servicing

▪ Steel construction for harsh and industrial environments

▪ Easy to install Open Frame chassis mount display

▪ Multiple mounting options: 75/100 mm VESA mount and side brackets

▪ Provides improved power efficiency and reduced consumption

▪ CE, FCC, RoHS Compliance

Model	ITD07PPCN1FJ1		ITD08PPCN1FJ1	ITD09PPCN1FJ1	ITD10PPCN1FJ1	ITD12PPCN1FJ1
Size	7”		8”	9.7”	10.4”	12.1”
Active Area	154.214(H) x 85.92(V)		162.048(W) × 121.536(H)	304.128(H)x 228.096(V)	211.2(H) x 158.4(V)	246(H) x 184.5(V)
Contrast	800:1		700:1	700:1	800:1	800:1
Resolution	1026 x 600		1026 x 768	1024 x 768	800 x 600(1024 x 768 optional)	800 x 600(1024 x 768 optional)
Brightness	500nits		1000nits	250nits	300nits	300nits
Viewing Angles	75/75/70/75		80/80/80/80	80/80/80/80	70/70/60/70	80/80/65/75
Backlight	LED		LED	LED	LED	LED
Model	ITD101PPCN1FJ1		ITD13PPCN1FJ1	ITD15PPCN1FJ1	ITD156PPCN1FJ1	ITD17PPCN1FJ1
Size	10.1”		13.3”	15”	15.6”	17”
Active Area	216.81(H) x 135.5(V)		293.42(W) × 164.97(H)	304.128(H)x 228.096(V)	246.0(H) x 184.5(V)	337.920(H) x 270.336(V)
Contrast	800:1		800:1	700:1	700:1	1000:1
Resolution	1280 x 800		1920 x 1080	1024 x 768	1920 x 1080	1280 x 1024
Brightness	400nits		300nits	250nits	300nits	250nits
Viewing Angles	85/85/85/85		85/85/85/85	80/80/60/80	89/89/89/89	85/85/80/80
Backlight	LED		LED	LED	LED	LED
Model	ITD173PPCN1FJ1		ITD18PPCN1FJ1	ITD19PPCN1FJ1	ITD21PPCN1FJ1	ITD24PPCN1FJ1
Size	17.3”		18.5”	19”	21.5”	24”
Active Area	381.888(H) x 214.812(V)		409.8(H) x 230.4(V)	376.32(H) x 301.06(V)	476.64(H) x 248.25(V)	531.36(H) x 298.89(V)
Contrast	400:1		1000:1	1000:1	1000:1	1000:1
Resolution	1920 x 1080		1366 x 768	1280 x 1024	1920 x 1080	1920 x 1080
Brightness	300nits		250nits	250nits	250nits	300nits
Viewing Angles	80/80/80/80		85/85/80/80	85/85/80/80	85/85/80/80	89/89/89/89
Backlight	LED		LED	LED	LED	LED
Model	ITD27PPCN1FJ1		ITD32PPCN1FJ1	ITD42PPCN1FJ1	ITD55PPCN1FJ1	ITD65PPCN1FJ1
Size	27”		32”	42”/43”	55”	65”
Active Area	597.6(H)x 336.15(V)		698.4(H) x 392.85(V)	930.24(H) x 523.26(V)	1213.6(H) x 684.4(V)	1428.48(W) × 803.52(H)
Contrast	1000:1		1000:1	1200:1	3000:1	4000:1
Resolution	1920 x 1080		1920 x 1080	1920 x 1080	1920 x 1080	1920 x 1080
Brightness	300nits		350nits	400nits	400nits	400nits
Viewing Angles	89/89/89/89		89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Backlight	LED		LED	LED	LED	LED
SPECIFICATION
System		CPU		Intel® Celeron J1900 2.0GHz Processor
		BIOS		AMI
		Chipset		Intel Bay Trail SoC
		Memory		Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB
		Graphic Chipset		Intel HD Graphics (By CPU)
		Storage		1 x SATA, 1 x mSATA, Default to 64GB SSD
		LAN		1 x 10/100/1000Mbps Ethernet (WIFI Optional)
Input/Output		Serial Ports		2 x COM
		USB Ports		2 x USB
		VGA Port		1 x VGA
		HDMI Port		1x HDMI
		Audio Card		Line-Out/MIC IN
Power		Input Voltage		External Power Supply DC 12V for 7”~24”; Internal Power Supply AC100~240V for 27”~65”
Environment Considerations		Operating Temperature		-10~60℃ for 7”~21.5”; 0-50℃ for 24”~65”
		Storage Temperature		-20~70℃
Order Information		Open Frame Panel PC with Resistive Touch/ITD**PPCT1FJ1(available for sizes below 24”)
		Open Frame Panel PC with IR Touch/ITD**PPCT2FJ1
		Open Frame Panel PC with PCAP Touch/ITD**PPCT5FJ1

open frame panel PC 15 inch capacitive touch screen computer for kiosk 0
