Name: Multi Touch Industrial Panel PC 10.1" Android Widescreen With NFC RFID Reader
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD101PPCT5KE1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model Name: ITD101PPCT5KE1

IP Rating: IP65 Front Panel

Touch Technology: Projected Capacitive Touch With 10 Touch Points

Resolution: 1920x1200

CPU: ARM Quad-Core RK3368 Cortex-A53

GPU: PowerVR G6110 GPU

SD Ram: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

Highlight:

touch panel computer

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD101PPCT5KE1

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

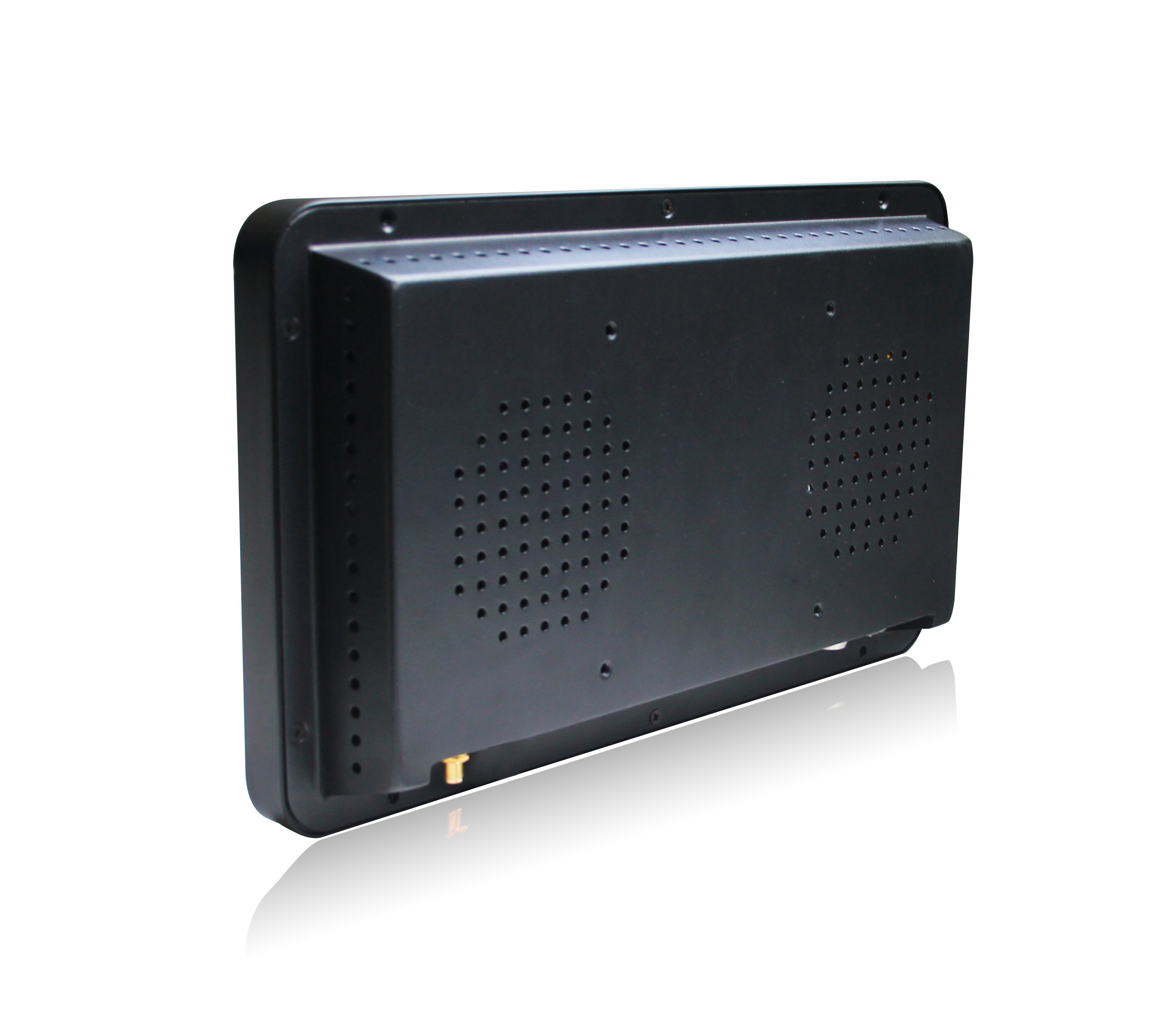

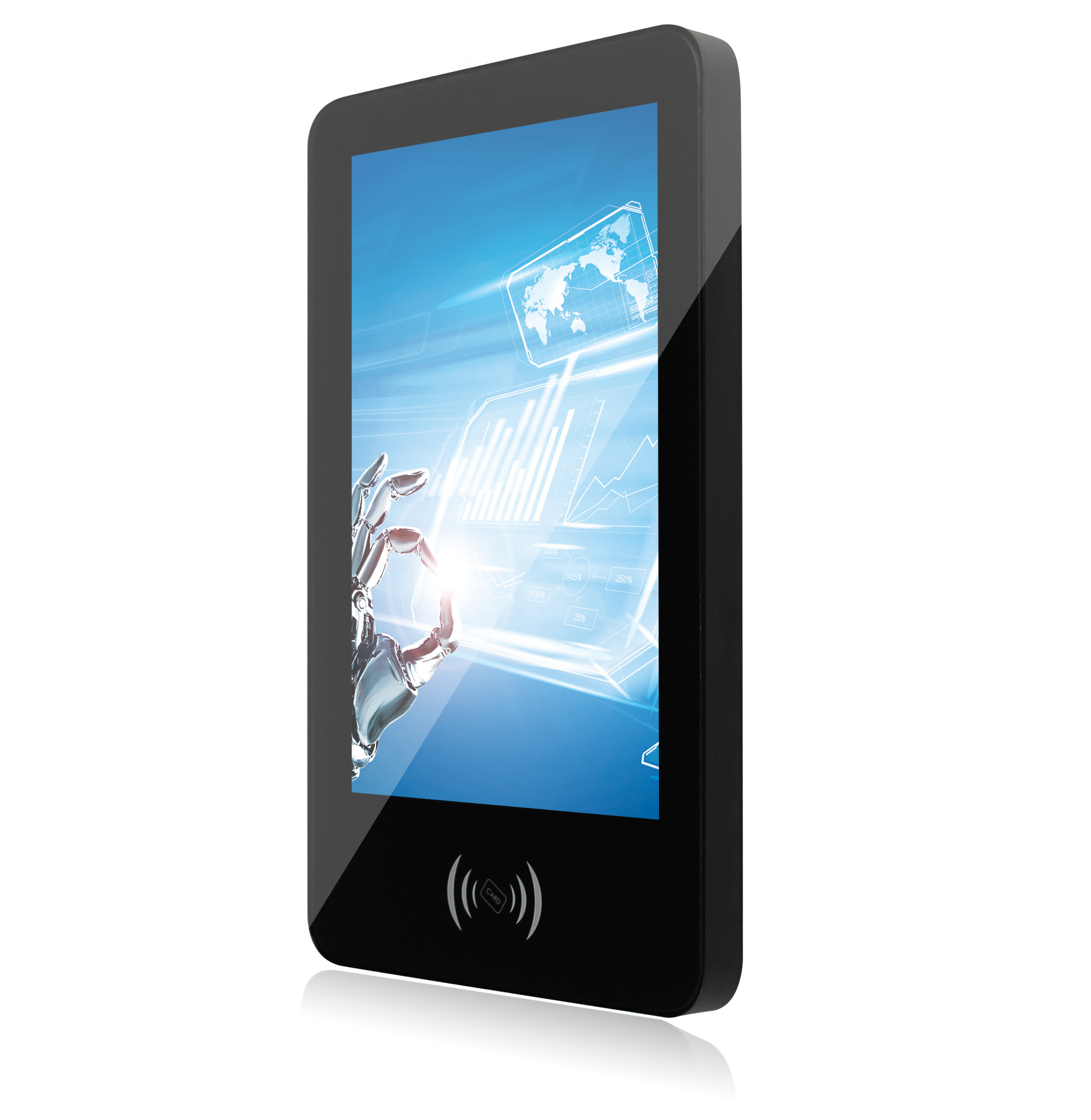

Multi Touch Industrial Panel PC 10.1" Android Widescreen With NFC RFID Reader

Product Description

Widescreen 10.1" Android multi Touch Panel PC with NFC RFID reader

ITD 10.1” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Quad-Core Cortex-A53 Processor RK3368 1.5GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 10.1” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.

Specifications:

Panel	Cell Type/Glass Surface	TFT
	Size	10.1”
	Aspect Ratio	16:10
	Active Area	216.81(W) × 135.50(H)mm
	Pixel Pitch	0.113 × 0.113mm
	Native Resolution	1920 x 1200
	Colors	16.7M
	Brightness	300cd/㎡
	Contrast	800:1
	Response Time	14ms
	Viewing Angle(Typical)	160/160
	Light Source	LED Backlight with 30000Hours’Lifetime

SPECIFICATION

System	CPU: ARM Quad-Core RK3368 Cortex-A53,Main CPU frequency:1.5GHz; GPU: PowerVR G6110 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 5.1/6.0 Bluetooth: Optional Video Decoder: 4K VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output	1 × HDMI; 2 × USB Max. 6× USB; 1 × USB OTG 4 × COM; 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); 1 × DC 12V 2.0; 3G/4G Optional
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Operating Humidity	10%~90% (Non Condensing)
Order Information	10.1” PCAP Touch Android PC with NFC Reader/ITD101PPCT5KE1-NFC
	10.1” PCAP Touch Android PC with RFID Reader/ITD101PPCT5KE1-RFID
	10.1” Non Touch Android PC with NFC Reader/ITD101PPCG1KE1-NFC
	10.1” Non Touch Android PC with RFID Reader/ITD101PPCG1KE1-RFID

Product Display:

Multi Touch Industrial Panel PC 10.1" Android Widescreen With NFC RFID Reader 0
