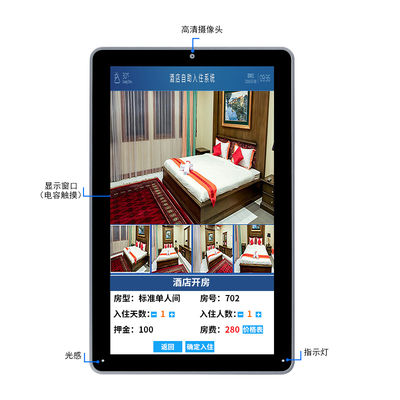

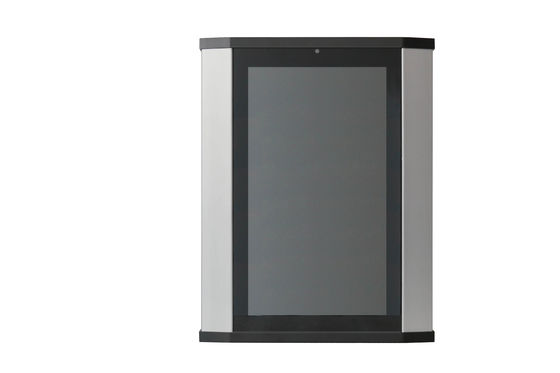

NFC RFID printer barcode scanner for multi interactive touch screen kiosk panel mounted All in one PC
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Responds to a light touch to activate response
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS
•DC 24V, DC9-36V, AC100-240V
•High brightness, sunlight readable
•Resistive touch screen, tempered glass
•Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc
Specs:
SPECIFICATION
| Panel |
Cell Type/Glass Surface |
TFT |
| Size |
15.6” |
| Aspect Ratio |
16:9 |
| Active Area |
344.23(H)x 193.53(V) (H)mm |
| Pixel Pitch |
0.252 × 0.252mm |
| Native Resolution |
1366 x 768 (1920 x 1080 optional) |
| Colors |
16.2M |
| Brightness |
300cd/㎡ |
| Contrast |
500:1 |
| Response Time |
6ms |
| Viewing Angle(Typical) |
170/160 |
| Light Source |
LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System |
CPU |
Intel® Celeron J1900 2.0GHz Processor |
| BIOS |
AMI |
| Chipset |
TBA |
| Memory |
1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB |
| Graphic Chipset |
CPU integrated graphics HD and support 1080p |
| Storage |
64GB SSD |
| LAN |
1 x 10/100/1000Mbps Ethernet |
| Input / Output |
Serial Ports |
1 x COM |
| USB Ports |
4 X USB |
| VGA Port |
1 x VGA |
| HDMI Port |
1x HDMI Port |
| Audio Card |
with Realtek ALC662
Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
|
| Power |
Input Voltage |
DC 12V |
| Operation/Power Saving |
30W |
| Environment Considerations |
Operating Temperature |
-10~60℃ (-20~70℃ Optional) |
| Storage Temperature |
-20~70℃ |
| Relative Humidity |
10%~90% |
| Order Information |
15.6”Flat Bezel Panel PC with PCAP Touch J1900/ITD156PPCT5XJ1 |
| 15.6”Flat Bezel Panel PC with Resistive Touch J1900/ITD156PPCT1XJ1 |
| 15.6” Flat Bezel Panel PC with Tempered GlassJ1900/ITD156PPCG1XJ1 |
