Name: IP65 front zero bezel 15" pcap touch panel PC with multi 10 touch points
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD15PPCT1KJ
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Size: 15"

Active Area: 304.128(H)X228.096(V) Mm

Resolution: 1024X768

CPU: Intel Celeron J1900, Intel Core I3/i5/i7, ARM RK3188

Brightness: 250 Nits

Viewing Angles: 80/80/60/80

Working Temperature Range: -10~60℃ (-20~70℃ Optional)

MTBF: 50000h

OS Supported: Windows 7/8/10, Windows Embedded, Linux

Highlight:

touch display pc

touch panel computer

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD15PPCT1KJ

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Delivery Time: 10-15 working days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 units per month

Gallery

IP65 front zero bezel 15" pcap touch panel PC with multi 10 touch points

Product Description

IP65 front zero bezel 15" pcap touch panel PC with multi 10 touch points

Our line of Zero-Bezel PCAP Touchscreen Panel PCs offers multi-touch screen in various display size for an intelligent display unit between human to machine interface, with ultra slim and fan-less design enclosure for easy installation and maintenance in a commercial/industrial working environment. Built with limited space issues in mind, our ultra-slim designed Panel PCs can be configured to run on either the Atom/Celeron low power consumption or Core i3/i5/i7 high performance CPU, which all have a rugged IP65 rated front panel with around 1.2 inches in depth, compact design, multiple interface ports and network ready device which designed for IoT hardware platform.

Applications for Panel PCs

-Automation

-Food Industry

-Access Control/Automation Control

-Security System

-Interactive Digital Signage

-Retail Product Selector

-Interactive Point of Purchase

-Touchscreen Operator Panel

-Healthcare

-Education

-Hospitality

-Self-Service Terminals

Specifications:

Flat Bezel Industrial Panel PC
Model Name		ITD15PPCG1X**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		15”
Display Active Screen Size (cm)		304.13(H)×228.10(V)
Aspect Ratio		4:3
Physical Resolution		1024×768
Maximum Resolution Supported		1920×1080
Colors		16.2M
Brightness (cd/m²)		250
Contrast Ratio		700:1
View Angels		80/80/60/80
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		30W
Order Information
15”Panel Mount Panel PC with Resistive Touch, J1900		ITD15PPCT1XJ1
15”Panel Mount Panel PC with PCAP Touch, J1900		ITD15PPCT5XJ1
15”Panel Mount Panel PC with Tempered Glass, J1900		ITD15PPCG1XJ1
15”Panel Mount Panel PC with Resistive Touch, i5		ITD15PPCT1XI5
15”Panel Mount Panel PC with PCAP Touch, i5		ITD15PPCT5XI5
15”Panel Mount Panel PC with Tempered Glass, i5		ITD15PPCG1XI5

Product display:

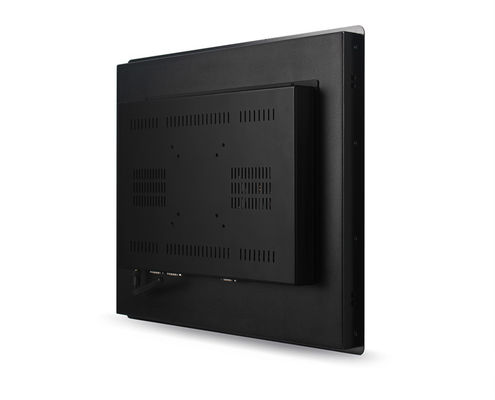

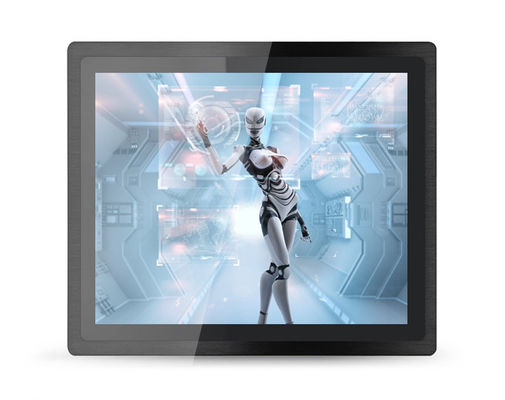

IP65 front zero bezel 15" pcap touch panel PC with multi 10 touch points 0

IP65 front zero bezel 15" pcap touch panel PC with multi 10 touch points 1

Factory:

IP65 front zero bezel 15" pcap touch panel PC with multi 10 touch points 2
