Name: Industrial Tablet Touch Panel PC 12.1" Android AIOARM3288 Pcap Resistive Touchsreen
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD12PPCT5KXE31
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Glass Surface: TFT

CPU: ARM Quad Core RK3288,Main CPU Frequency:1.8GHz

OS: Android 5.1/6.0

Relative Humidity: 10%~90%

Operating Temperature: -10~60℃ (-20~70℃ Optional)

LAN: 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E)

Resolution: 800x 600(1024 X 768 Optional)

Aspect Ratio: 4:3

Highlight:

touch panel computer

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD12PPCT5KXE31

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Delivery Time: 7-12 work days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

Industrial Tablet Touch Panel PC 12.1" Android AIOARM3288 Pcap Resistive Touchsreen

Product Description

12.1"Android AIO industrial tablet panel PC ARM3288 pcap/resistive touchsreen

FEATURES

• Manage daily power on/off time for any display or group of displays;

• Deliver high definition image content;

• Content plays automatically upon set up of schedule;

• Display live news, weather, traffic reports, emergency announcements and many other notices;

• Anytime insert emergent video file;

• Remotely report system utilization and memory usage;

• System automatically notifies administrator of any malfunction;

• Custom-features development service available from our professional software team;

• Daily, monthly display content recording;• Possible to integrate with the any existing management system.

Product Image

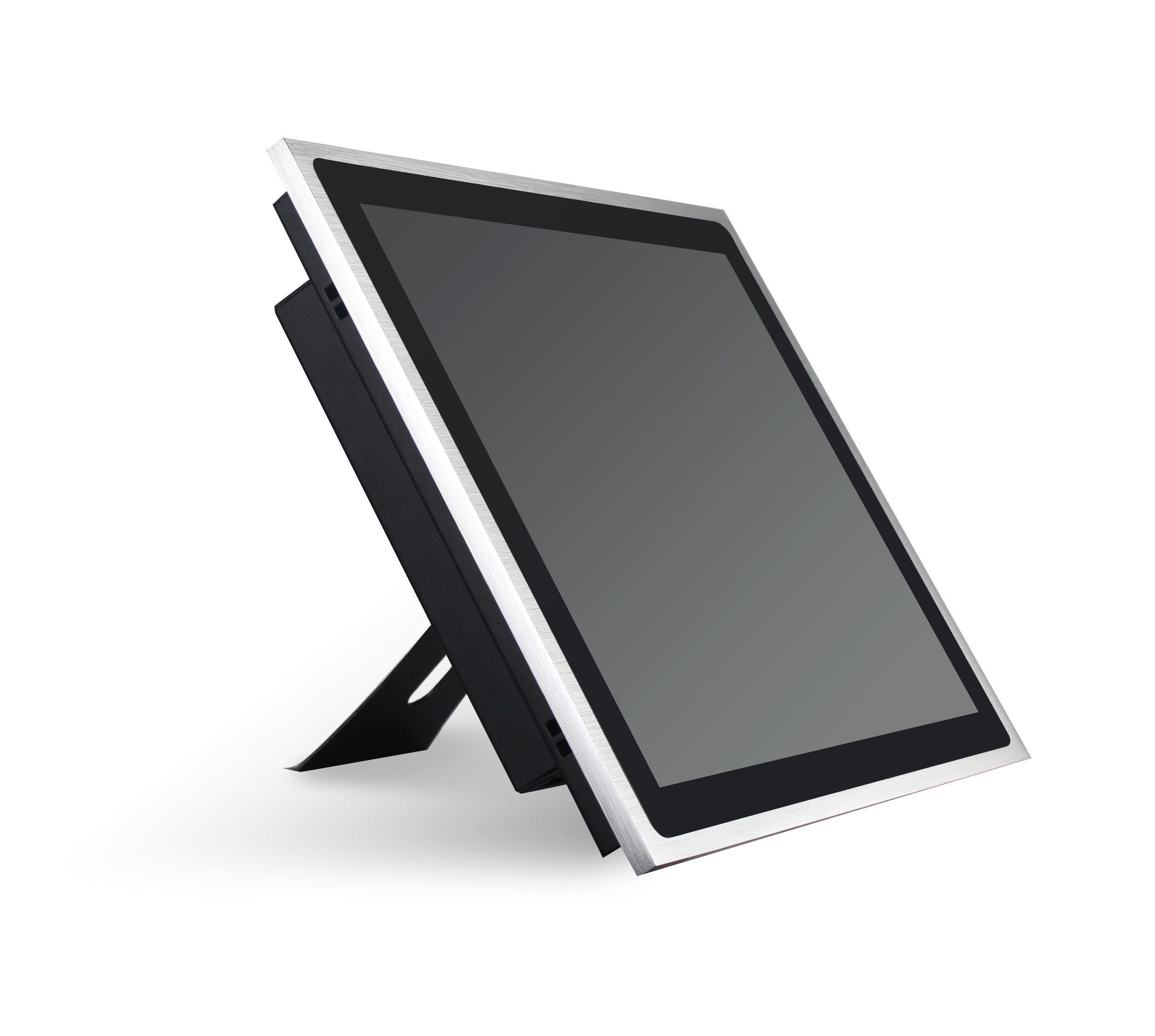

Android touch panel PC

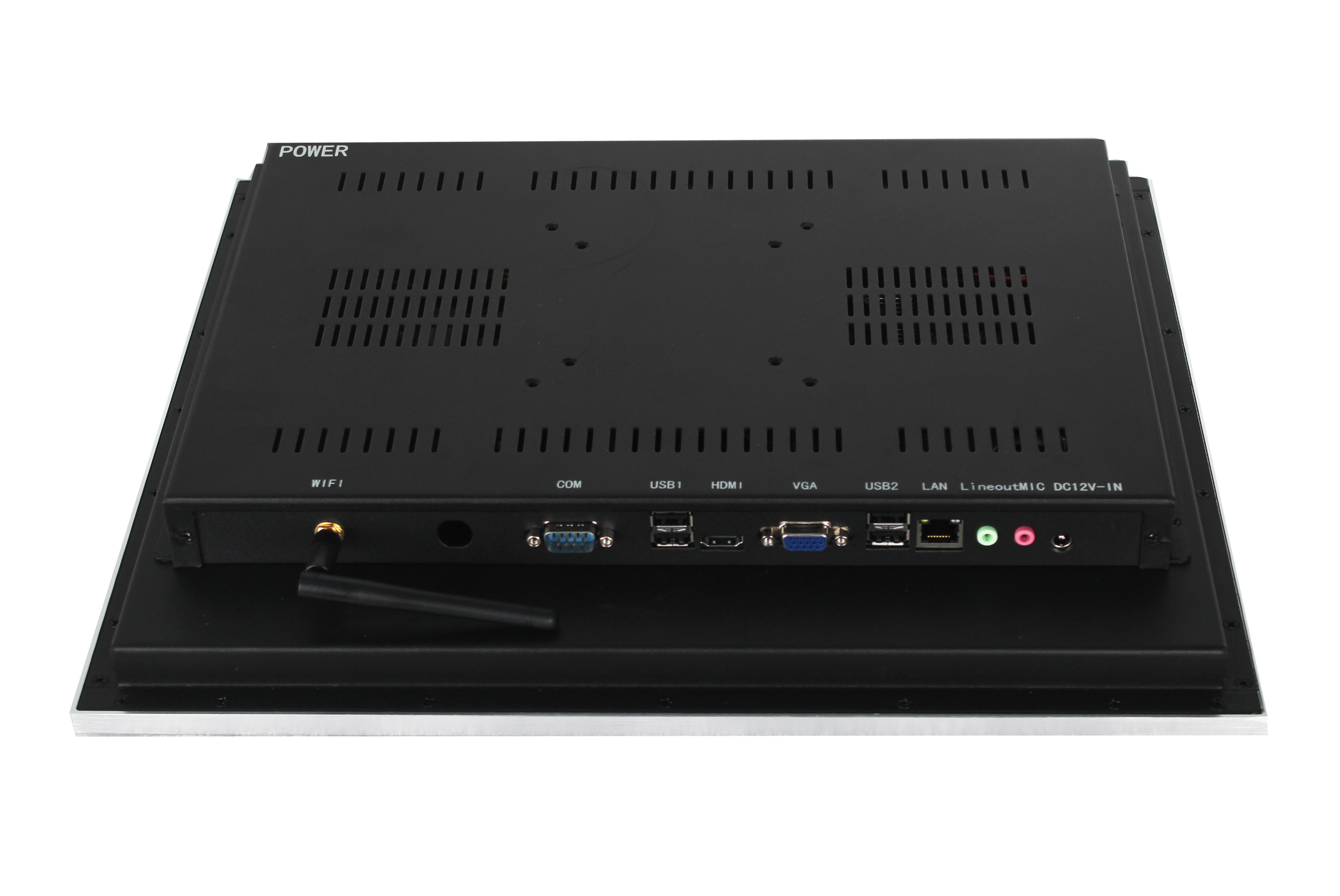

Android PC industrial tablet

Datasheet

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	12.1”/4:3
	Active Area/ Pixel Pitch	246.0(H) x 184.5(V)mm /0.3075× 0.3075mm
	Native Resolution/ Colors	800x 600(1024 x 768 optional)/ 16.2M
	Brightness/ Contrast	300cd/㎡/800:1
	Response Time	30ms
	Viewing Angle(Typical)	80/80/60/80
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 5.1/6.0; Bluetooth: Optional Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output	1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM; 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);
Operating Temperature	-10~60℃ (-20~70℃ Optional)
Storage Temperature	-20~70℃
Relative Humidity	10%~90%
Order Information	12.1”Flat Bezel Android Panel PC with PCAP Touch/ITD12PPCT5KXE31
	12.1”Flat Bezel Android Panel PC with Resistive Touch/ITD12PPCT1KXE31
	12.1”Flat Bezel Android Panel PC with Tempered Glass/ITD12PPCG1XE31

Industrial Tablet Touch Panel PC 12.1" Android AIOARM3288 Pcap Resistive Touchsreen 2

Industrial Tablet Touch Panel PC 12.1" Android AIOARM3288 Pcap Resistive Touchsreen 3
