Name: Industrial Lcd Display Touch Panel PC Integrated 19 Inch Resistive Touchscreen
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD19PPCT1F**
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Screen Diagonal: 19"

Display Active Screen Size: 376.32(H) X 301.06(V) Mm

Physical Resolution: 1280x1024

Brightness: 250 Nits

View Angels: 85/85/80/80

Touch Drivers: For Windows, Linux, Android, Mac, Raspberry Pi

Memory: 2GB(Max. 8GB)

Power Input: DC12V

Highlight:

touch display pc

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD19PPCT1F**

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,Pallet

Delivery Time: 10-15 work days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 units per month

Gallery

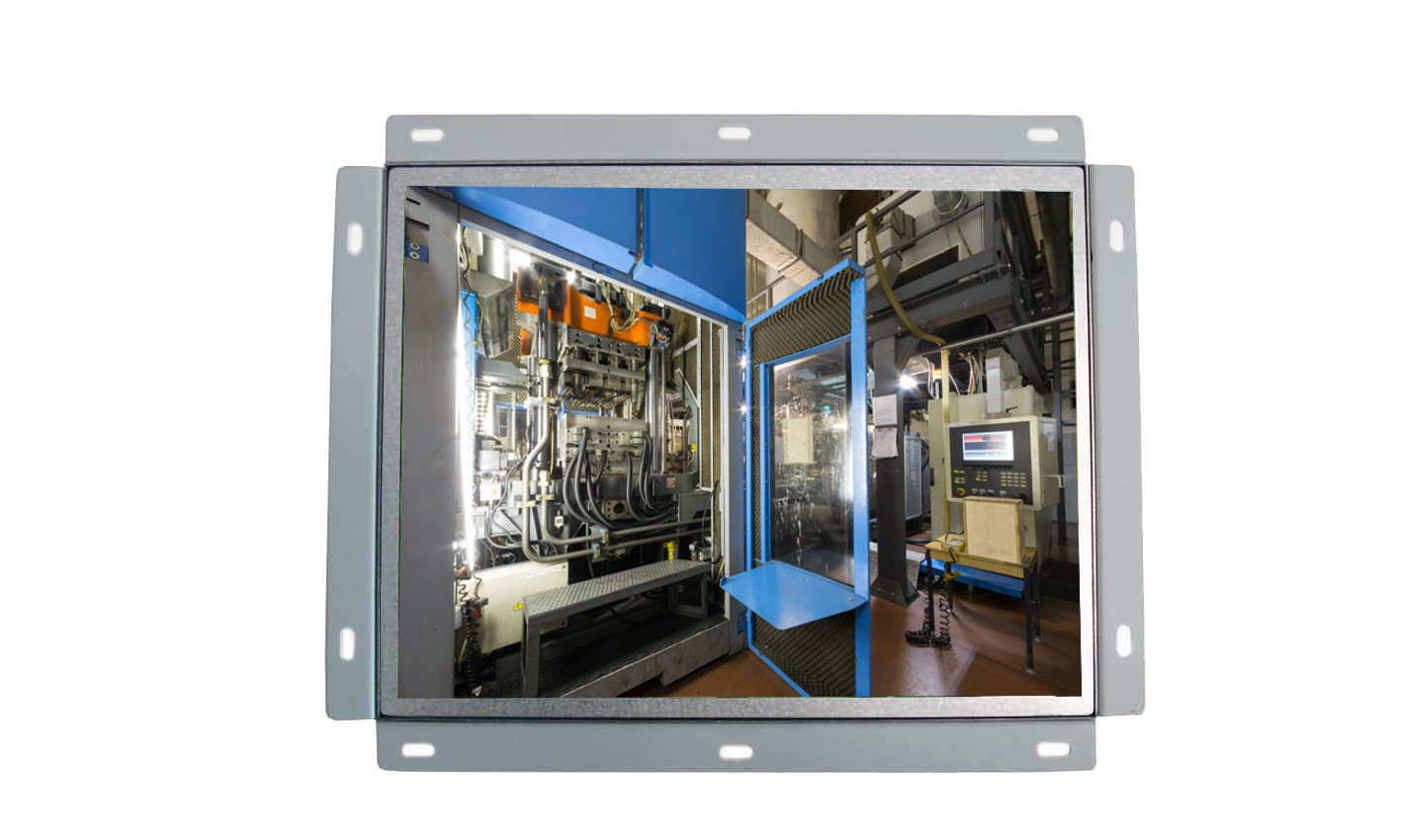

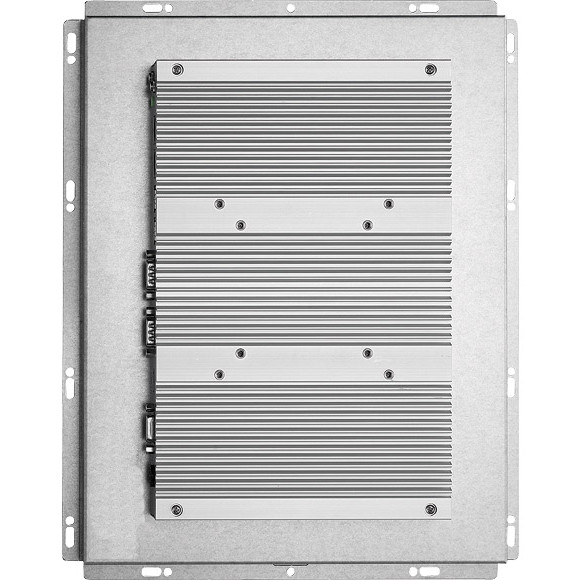

Industrial Lcd Display Touch Panel PC Integrated 19 Inch Resistive Touchscreen

Product Description

industrial lcd display touch panel PC integrated 19" resistive touchscreen

ITD open frame panel computers have a touchscreen and are designed to last even in extreme environments with exposure to heat, cold, dust, and moisture. They have a slim and fanless design and are made of a rugged steel to protect from dust and moisture, as well as shock and vibrations. The bright TFT display panel allows for screen visibility in poor conditions. ITD’s open frame panel computers will optimize your industrial applications and ensure that your operations run smoothly.

Specifications:

Open Frame Panel PC
Model Name		ITD19PPCG1F**
IP Rating		N/A
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch/cm)		19”
Display Active Screen Size (mm)		376.32(H) x 301.06(V)mm
Aspect Ratio		4:3
Physical Resolution		1280 x 1024
Maximum Resolution Supported		1920 x 1080
Colors		16.7M
Brightness (cd/m²)		250nits
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		38W
Order Information
19”Open Frame Panel PC with Resistive Touch, J1900		ITD19PPCT1FJ1
19”Open Frame Panel PC with PCAP Touch, J1900		ITD19PPCT5FJ1
19”Open Frame Panel PC with IR Touch, J1900		ITD19PPCT2FJ1
19”Open Frame Panel PC with Tempered Glass, J1900		ITD19PPCG1FJ1
19”Open Frame Panel PC with Resistive Touch, i5		ITD19PPCT1FI5
19”Open Frame Panel PC with PCAP Touch, i5		ITD19PPCT5FI5
19”Open Frame Panel PC with IR Touch, i5		ITD19PPCT2FI5
19”Open Frame Panel PC with Tempered Glass, i5		ITD19PPCG1FI5

Application:

Industrial Lcd Display Touch Panel PC Integrated 19 Inch Resistive Touchscreen 0
