Name: Indoor / Outdoor Panel PC Touchscreen 15” 30 Watt With 10-90% Humidity
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD15PPCT1LJ1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900/i3/i5/i7/Android

Active Are: 304.13(H)×228.10(V) Mm

Screen Diagonal: 15"

Operating Temperature: -10~60℃(-20~70℃ Optional)

Operating Humidity: 10%-90% (Non Condensing)

24/7/365 Use: Supported

Touchscreen: Resistive, PCAP

Power Input: DC 12V

Resolution: 1024×768

View Angels: 80/80/60/80

IP Rating: IP65 On The Front Panel Optional

Highlight:

touch display pc

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD15PPCT1LJ1

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 5-15 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 10000PCS/Month

Gallery

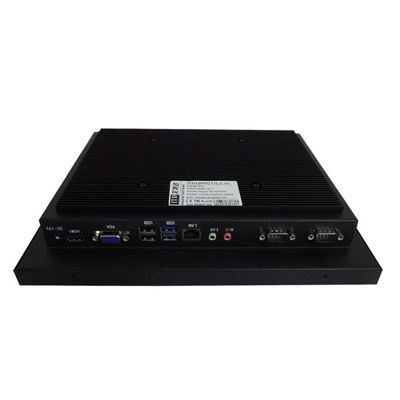

Indoor / Outdoor Panel PC Touchscreen 15” 30 Watt With 10-90% Humidity

Product Description

cost effective embedded computer 15" industrial touch panel PC

Specifications:

Chassis Panel PC
Model Name		ITD15PPCG1L**
IP Rating		IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		15”
Display Active Screen Size (cm)		304.13(H)×228.10(V)
Aspect Ratio		4:3
Physical Resolution		1024×768
Maximum Resolution Supported		1920×1080
Colors		16.2M
Brightness (cd/m²)		250
Contrast Ratio		700:1
View Angels		80/80/60/80
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		30W
Order Information
15”Chassis Panel PC with Resistive Touch, J1900		ITD15PPCT1LJ1
15”Chassis Panel PC with PCAP Touch, J1900		ITD15PPCT5LJ1
15”Chassis Panel PC with IR Touch, J1900		ITD15PPCT2LJ1
15”Chassis Panel PC with Tempered Glass, J1900		ITD15PPCG1LJ1
15”Chassis Panel PC with Resistive Touch, i5		ITD15PPCT1LI5
15”Chassis Panel PC with PCAP Touch, i5		ITD15PPCT5LI5
15”Chassis Panel PC with IR Touch, i5		ITD15PPCT2LJ1
15”Chassis Panel PC with Tempered Glass, i5		ITD15PPCG1LI5

ITD industrial touch panel PC-based HMIs offers many benefits including: cost reduction, a lightweight frame, high dimensional stability, superior corrosion resistance, improved mechanical properties, high thermal and electrical conductivity, and the ability to retain strength at high temperatures.

Product Display:

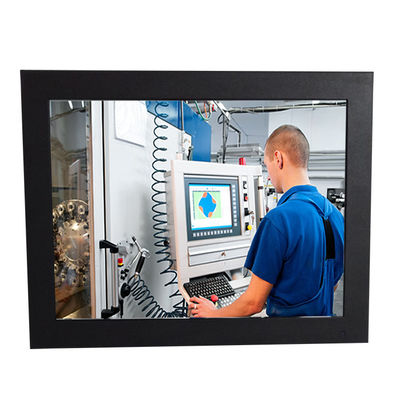

Indoor / Outdoor Panel PC Touchscreen 15” 30 Watt With 10-90% Humidity 0 industrial panel PC

APPLICATION
