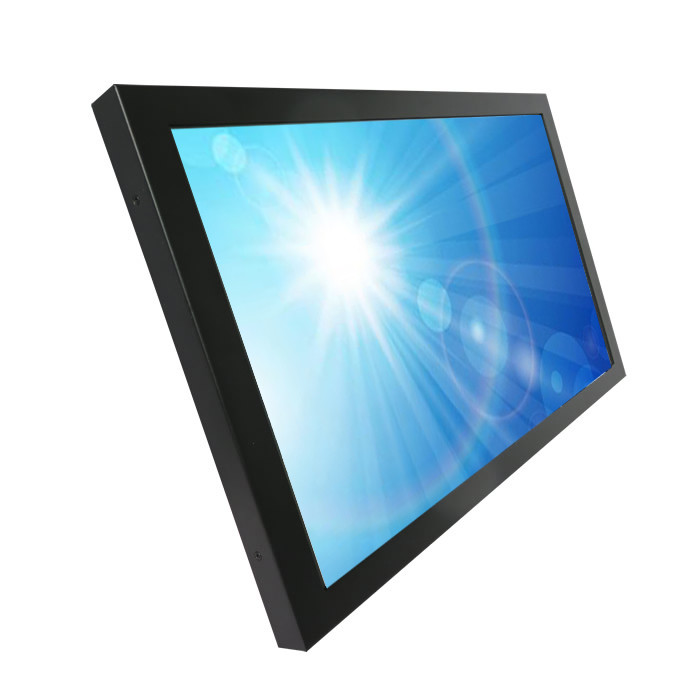

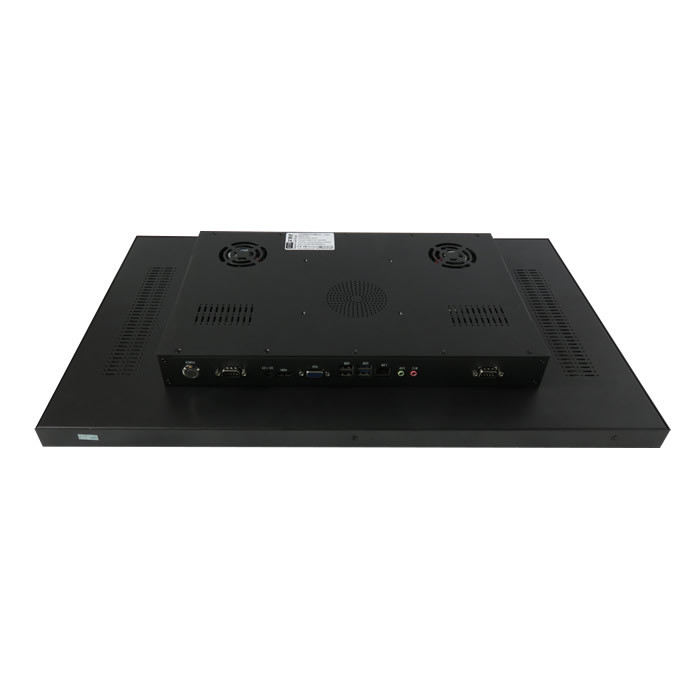

High Brightness Sunlight Readable Panel PC Black Shell 50000 Hours Life Time

1pcs
MOQ
TBA
Price
High Brightness Sunlight Readable Panel PC Black Shell 50000 Hours Life Time
Features Gallery Product Description Request A Quote
Features
Specifications
Housing Type: Chassis Mount, VESA Mounting
MTBF: 50000Hours
Operating Temperature: -10~60℃(-20~70℃ Optional)
Operating Humidity: 10%-90% (Non Condensing)
CPU: J1900,i3,i5,i7
Resolution: 1920*1080
Highlight:

all in one touch pc

,

industrial touch panel pc

Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD32PPCT1HBJ1
Payment & Shipping Terms
Packaging Details: 1-5pcs/CTN, Safe, Firm
Delivery Time: 15-20 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000PCS/Month
Product Description

32 inch high brightness sunlight readable chassis touch all in one pc Panel PC with touchscreen,CPU,RAM,SSD optional



ITD sunlight readable panel mounted panel PCs are ideal solutions for a variety of applications on ships, marine platforms, outdoor self-service terminals, etc. These are designed for high reliability and low maintenance in this type of working environments. While we have pre-designed products, we also provide custom designs based on the features and requirements that you want to integrate into the system. In this way, we always have all the possible choices that the client may look for high brightness panel PCs.

BENEFITES

- 32" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)

- High-Luminance Solid-State LED-enhanced Backlighting

- Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional

- Intel Celeron 2 GHz Quad Core Processor

- 4GB, Max.8G System Memory

- 500GB HDD or 126GB SSD, Bigger Capacity Optional

- NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel

- Resistive Touch Screen Standard (PCAP, IR Touch Optional)

- Energy Efficient, Low Power Consumption

- High Environmental Performance and Reliability

- Wide Operational Temperature Range, -10°C to +60°C



Chassis High Brightness Panel PC
Model Name ITD32PPCG1HBL**
IP Rating IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch) 32”
Display Active Screen Size (cm) 698.4(H)×392.9(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1000(1500 Optional)
Contrast Ratio 3000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options Resistive, IR, PCAP, SAW, Touch Foil
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported
Power
Power Indicator Green LED
Power Input Internal Power Supply, AC100V~240V
Power Consumption 110W
Order Information
32”1500nits Chassis Panel PC with Resistive Touch, J1900 ITD32PPCT1HBLJ1
32”1500nits Chassis Panel PC with PCAP Touch, J1900 ITD32PPCT5HBLJ1
32”1500nits Chassis Panel PC with IR Touch, J1900 ITD32PPCT2HBLJ1
32”1500nits Chassis Panel PC with Tempered Glass, J1900 ITD32PPCG1HBLJ1
32”1500nits Chassis Panel PC with Resistive Touch, i5 ITD32PPCT1HBLI5
32”1500nits Chassis Panel PC with PCAP Touch, i5 ITD32PPCT5HBLI5
32”1500nits Chassis Panel PC with IR Touch, i5 ITD32PPCT2HBLJ1
32”1500nits Chassis Panel PC with Tempered Glass, i5 ITD32PPCG1HBLI5



APPLICATION
High Brightness Sunlight Readable Panel PC Black Shell 50000 Hours Life Time 0



OUR FACTORY
High Brightness Sunlight Readable Panel PC Black Shell 50000 Hours Life Time 1
