Free Standing Outdoor Digital Display Weather Proof 50000 Hours MTBF

1pcs
MOQ
Negotiation
Price
Free Standing Outdoor Digital Display Weather Proof 50000 Hours MTBF
Features Gallery Product Description Request A Quote
Features
Specifications
MTBF: 50000Hours
Operating Temperature: -25~55℃(-45~55℃ Optional)
PC System Options: ARM Android Based RK3288/X86 Windows Based
24/7/365 Use: Supported
View Angels: 89/89/89/89
IP Rating: IP65/IP66
Highlight:

all in one computer monitor

,

digital signage kiosk

Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD32CMAIPL****
Payment & Shipping Terms
Packaging Details: 1pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time: 15-20 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000PCS/Month
Product Description

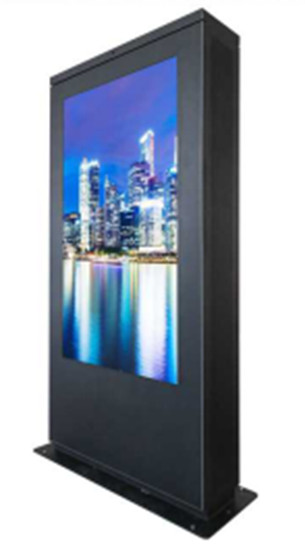

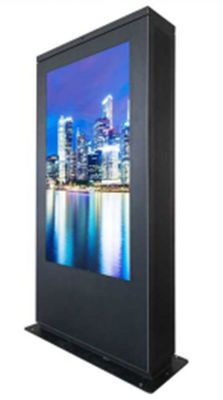

free standing outdoor lcd display 32" All Weatherproof Freestanding Digital Signage totem



industrial monitor, being equipped with high performance industrial motherboard and aluminum alloy panel , it can meet various demands of harsh industrial applications. It is protected with tempered glass and without touch function.

Multiple signal input Compatible with multiple interfaces.
DVI/ VGA singal input, serial/ USB interfaces.



ITD outdoor all weatherproof wall-mounted digital signage display boasts a range of unique features perfect for outdoor digital signage with high brightness, protective glass, IP65 verified, tamperproof, commercial grade, temperature control and choice of media players including single SD card and USB port plug and play media player, ARM based player and x86 based player integrated. The ITD outdoor digital signage displays are fitted with commercial grade panels providing them with a wide viewing angle, improved color, contrast and brightness as well as the ability to be used 24 hours a day. With an eco-friendly power timer you can be assured of their green credentials and low operating costs. The ITD outdoor display also has an ambient light sensor that will automatically alter the screens brightness based on the displays surrounding light levels leaving the screen with the best clarity whilst also conserving energy. Anti-reflective/ anti-glare tempered glass also comes as standard. ITD outdoor digital signage can display message in heat, cold, rain, snow and dust empowering to always present a dynamic and vibrant message.



BENEFITES

  • Exceptional quality and commercial-grade outdoor reliability and performance
  • Eco-friendly, Energy-Efficient LED Backlight Technology
  • Designed with robust, corrosion protected casing to protect against the elements and the public
  • IP65 rated protecting from any wet weather conditions and waterproof over-molded connectors
  • High brightness from 1500nits to 2500nits allowing effortless legibility in direct sunlight
  • AR/AG Tempered glass fitted on front for vandal proof and optimum clarity
  • Ultra wide operation temperature range -25℃~55℃ or -45℃~55℃ supported
  • Equipped with internal air-conditioning or fan-cooling system ensuring a long and reliable lifespan
  • Landscape and Portrait mode wall-mounted flexibility
  • Pre-installed CMS management system for network version
  • Long lasting product cycle for continuity thru all phases of project


Specifications:



Outdoor Wall-Mounted Digital Signage LCD Display



Model Name ITD32CMAIPL****
IP Rating IP65

Single Media Player Option



1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot

Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

Picture Formats Supported: JPEG, BMP, GIF, PNG

File Formats Supported: FAT, FAT32, NTFS

PC Systems Options



ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel



Screen Diagonal (Inch) 32”
Display Active Screen Size (cm) 698.4(H)×392.9(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1500 cd/m²
Contrast Ratio 1200:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel Available for Network Version



Touch Options IR, PCAP, Touch Foil
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -20~55°C(Fan-Cooling); -40~55°C (Air Condition Built-in)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power /Speakers



Power Indicator Green LED
Power Input Internal Power Supply, AC 100V~240V

Power Consumption

Speakers

100W

2×5W

Order Information



32”Outdoor Free Standing Single DS with Aircon, AG Glass ITD32CMAIPLG3A1
32”Outdoor Free Standing Single DS with Fan-Cooling, AG Glass ITD32CMFIPLG3A1
32”Outdoor Free Standing Android DS with Aircon, AG Glass ITD32CMAIPLG3E1
32”Outdoor Free Standing Android DS with Fan-Cooling, AG Glass ITD32CMFIPLG3E1
32”Outdoor Free Standing Windows J1900 DS with Aircon, AG Glass ITD32CMAIPLG3J1
32”Outdoor Free Standing Windows J1900 DS with Fan-Cooling, AG Glass ITD32CMFIPLG3J1
32”Outdoor Free Standing Windows i3 DS with Aircon, AG Glass ITD32CMAIPLG3I3
32”Outdoor Free Standing Windows i3 DS with Fan-Cooling, AG Glass ITD32CMFIPLG3I3
32”Outdoor Free Standing Android DS with Aircon, Touch Foil ITD32CMAIPLT7E1
32”Outdoor Free Standing Android DS with Fan-Cooling, Touch Foil ITD32CMFIPLT7E1
32”Outdoor Free Standing Windows J1900 DS with Aircon, Touch Foil ITD32CMAIPLT7J1
32”Outdoor Free Standing Windows J1900 DS with Fan-Cooling, Touch Foil ITD32CMFIPLT7J1
32”Outdoor Free Standing Windows i3 DS with Aircon, Touch Foil ITD32CMAIPLT7I3
32”Outdoor Free Standing Windows i3 DS with Fan-Cooling, Touch Foil ITD32CMFIPLT7I3



Product Display:



Free Standing Outdoor Digital Display Weather Proof 50000 Hours MTBF 0Free Standing Outdoor Digital Display Weather Proof 50000 Hours MTBF 1



APPLICATION





Free Standing Outdoor Digital Display Weather Proof 50000 Hours MTBF 2
