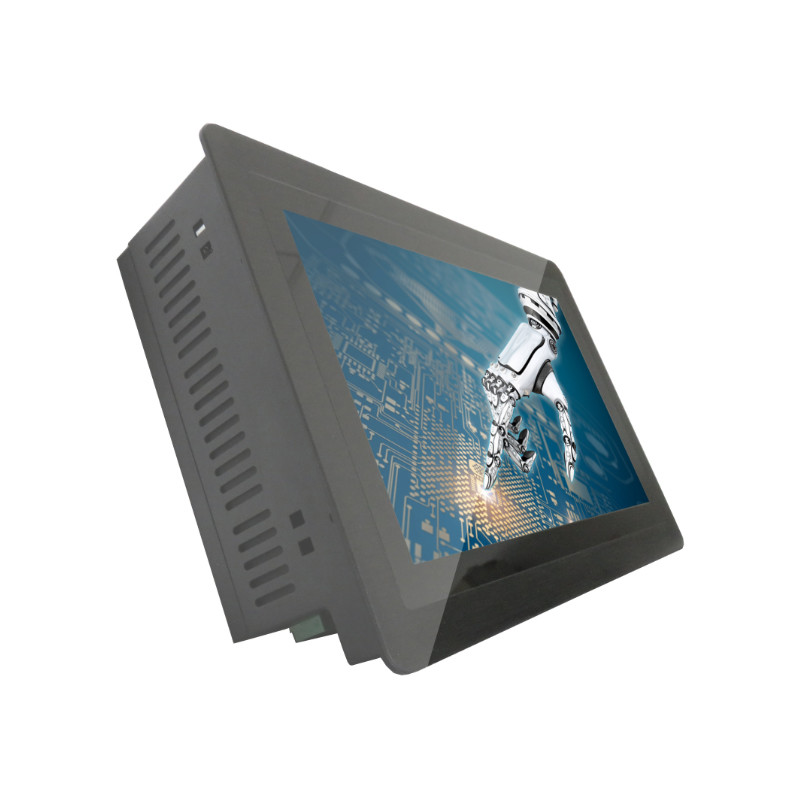

11.6 inch fanless marine panel PC industrial touch screen 0-100% brightness control
The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7 with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel allows easy access to ten-touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for automation, marine, machinery manufacturing, and custom machine to machine interface applications.
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Ten independent touch points (with Windows 7/8, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Front Panel Connector on the bottom as phoenix connector
▪ Responds to a light touch to activate response
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS
•SDD 32GB, 64GB,128GB or more
•High brightness, sunlight readable
•Resistive touch screen, tempered glass
•3G/4G Module built-in
•Web camera, speakers, RFID built-in
SPECIFICATION
| System |
CPU |
Intel® Core i3/i5/i7 Processor |
| BIOS |
AMI |
| Chipset |
Intel® SoC Integrated |
| Memory |
2 x DDR4 SO-DIMM slots up to 16GB 2133MHz |
| Storage |
64G SSD up to 512GB |
| Graphic Chipset |
Intel® HD Graphics |

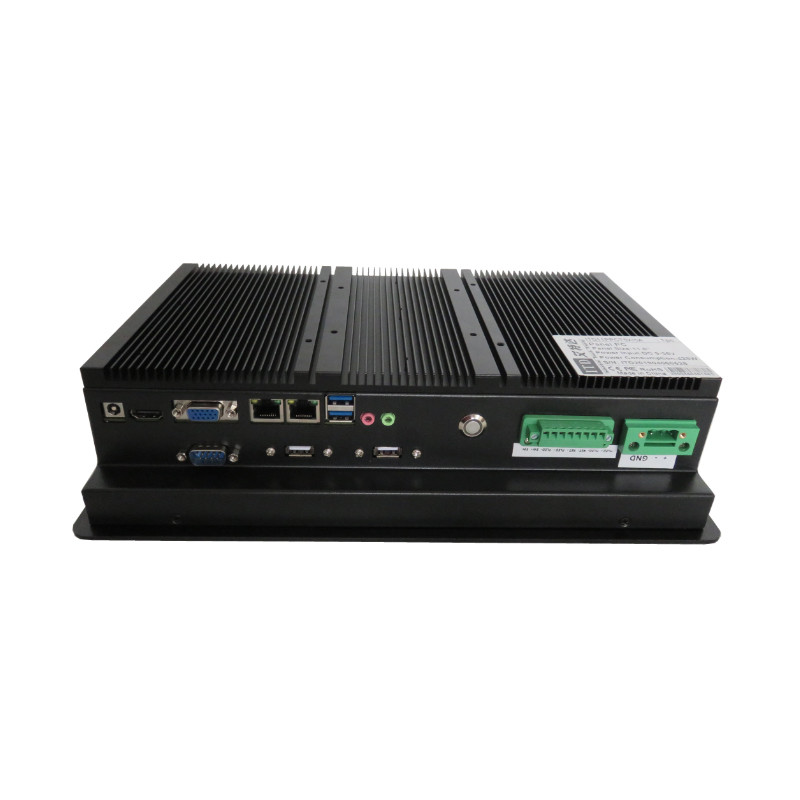

| Input / Output |
Serial Ports |
1 x COM (RS422 optional) |
| USB Ports |
4 X USB |
| VGA Port |
1 x VGA |
| HDMI Port |
1 x HDMI Port |
| Audio Card |
Realtek ALG662 Line-Out/MIC IN |
| LAN |
2 x 10/100/1000Mbps Ethernet |
| WIFI |
Built-in, 802.11a/b/g/h (optional) |
| Panel |
Cell Type/Glass Surface |
TFT LCD |
| Aspect Ratio/Size |
11.6” |
| Active Area/Pixel Pitch |
256.125(H) x 144(V)/ 0.1875mm |
| Native Resolution/Colors |
1366x768/262K |
| Brightness/Contrast |
400nits/800:1 |
| Response Time |
25ms |
| Viewing Angle(Typical) |
85/85/85/85 |
| Light Source |
LED Backlight with 50000Hours’Lifetime |
| Touch Screen |
Type |
Projected Capacitive Touch Screen |
| Response Time |
≤5ms |
| Power |
Input Voltage |
DC 8-36V |
| Operation/Power Saving |
30W |
| Environment Considerations |
Operating Temperature |
-10~60℃ |
| Relative Humidity |
30%~90% (non condensing) |
| Anti-Vibration |
5Hz-500Hz / 1Grms/3 Axis |
| Anti-Shock |
15G, 15ms duration |
| Anti-Shock |
15G, 15ms duration |
| Order Information |
11.6” Panel PC with PCAP touch Intel i3/ ITD11PPCT5XI3A |
| 11.6” Panel PC with PCAP touch Intel i3/ ITD11PPCG1XI3A |
| 11.6” Panel PC with PCAP touch Intel i5/ ITD11PPCT5XI5A |
| 11.6” Panel PC with PCAP touch Intel i5/ ITD11PPCG1XI5A |
| 11.6” Panel PC with PCAP touch Intel i7/ ITD11PPCT5XI7A |
| 11.6” Panel PC with PCAP touch Intel i7/ ITD11PPCG1XI7A |
