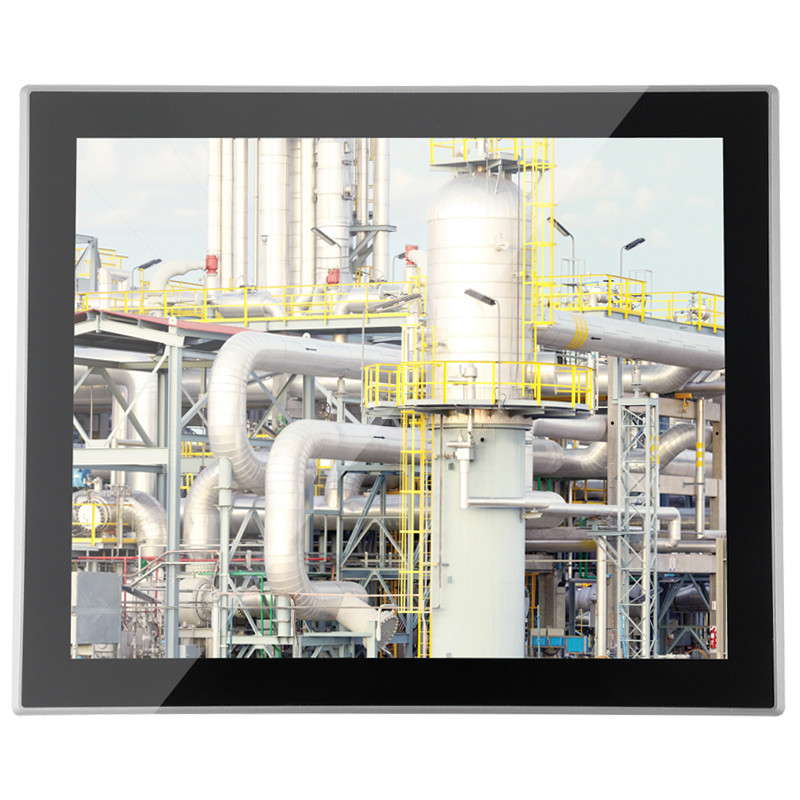

fanless industrial panel pc embedded touch screen computer 7" to 24"
panel mount touch PCs provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Core™ i3/i5/i7 processor, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
FEATURES
▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA
▪ Energy-efficient and fan-less HMI Systems
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ Flexible, easy configuration and integration
▪ CE, FCC, RoHS Compliance
OPTIONALS
•Anti-Glare / Anti-Reflective tempered glass
•SDD 64GB,128GB up to 521GB
•HDD 500GB up to 1TB
•Touch optional: Resistive, IR, PCAP
•High brightness, sunlight readable
•DC24V, DC 9-36V
SPECIFICATION
| System |
CPU |
Intel® Core i3/i5/i7 Processor |
| BIOS |
Award BIOS 4/8Mbit SPI Flash ROM |
| Chipset |
Intel H81 |
| Memory |
1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB |
| Graphic Chipset |
CPU integrated graphics HD and support 1080p |
| Storage |
32GB SSD or 320GB HDD |
| LAN |
1 x 10/100/1000Mbps Ethernet |

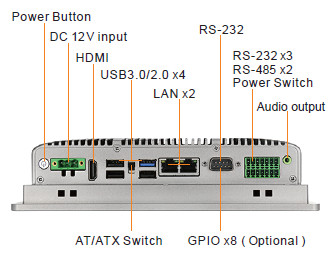

| Input / Output |
Serial Ports |
1 x COM |
| USB Ports |
4 X USB |
| VGA Port |
1 x VGA |
| HDMI Port |
1 x HDMI |
| Power Port |
1 x 12V DC Jack input |
| Audio Card |
Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN |
| WIFI |
Built-in, 802.11a/b/g/h (optional) |
| Panel |
Cell Type/Glass Surface |
TFT LCD |
| Aspect Ratio/Size |
19” 4:3 |
| Active Area/Pixel Pitch |
376.32(H) x 301.06(V)/0.294mm |
| Native Resolution/Colors |
1280 x 1024 /16.7M |
| Brightness/Contrast |
250nits/1000:1 |
| Viewing Angle(Typical) |
UP/Down 80-80 Deg./ - Left/Right 85-85 Deg. |
| Light Source |
LED Backlight with 50000Hours’Lifetime |
| Convenient Features |
Backlight adjustment, Plug & Play |
| Power |
Input Voltage |
External power supply with universal / Auto-Sensing, DC 12V |
| Operation/Power Saving |
35W |
| Environment Considerations |
Operating Temperature |
-10~60℃ (20~70℃ Optional) |
| Storage Temperature |
-20~70℃ |
| Relative Humidity |
10%~90% (non condensing) |
| OS Support |
Windows 7/ 8/10, Windows Embedded, Linux, Win CE |
| Touch Panel |
Resistive touch panel |
| Order Information |
19” Industrial panel PC i3 with resistive touch/ITD19PPCT1CI3 |
| 19” Industrial panel PC i3 with PCT touch/ITD19PPCT5CI3 |
| 19” Industrial panel PC i3 with tempered glass/ ITD19PPCG1CI3 |
| 19” Industrial panel PC i5 with resistive touch/ITD19PPCT1CI5 |
| 19” Industrial panel PC i5 with PCT touch/ITD19PPCT5CI5 |
| 19” Industrial panel PC i5 with tempered glass/ ITD19PPCG1CI5 |
| 19” Industrial panel PC i7 with resistive touch/ITD19PPCT1CI7 |
| 19” Industrial panel PC i7 with PCT touch/ITD19PPCT5CI7 |
| 19” Industrial panel PC i7 with tempered glass/ ITD19PPCG1CI7 |
