Name: DC12V Touch Monitor PC , Fanless Panel PC Resistive / Capacitive Touch Screen
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD12PPCT1F**
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Screen Diagonal: 12.1"

Display Active Screen Size: 248(H) X 186(V)mm

Physical Resolution: 800X600

Brightness: 300 Nits

View Angels: 80/80/70/70

Touch Drivers: For Windows, Linux, Android, Mac, Raspberry Pi

CPU: Android,Intel J1900,i3,i5,i7

Memory: 2GB(Max. 8GB)

Power Input: DC12V

Highlight:

touch display pc

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD12PPCT1F**

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,P

Delivery Time: 10-15 work days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 units per month

Gallery

DC12V Touch Monitor PC , Fanless Panel PC Resistive / Capacitive Touch Screen

Product Description

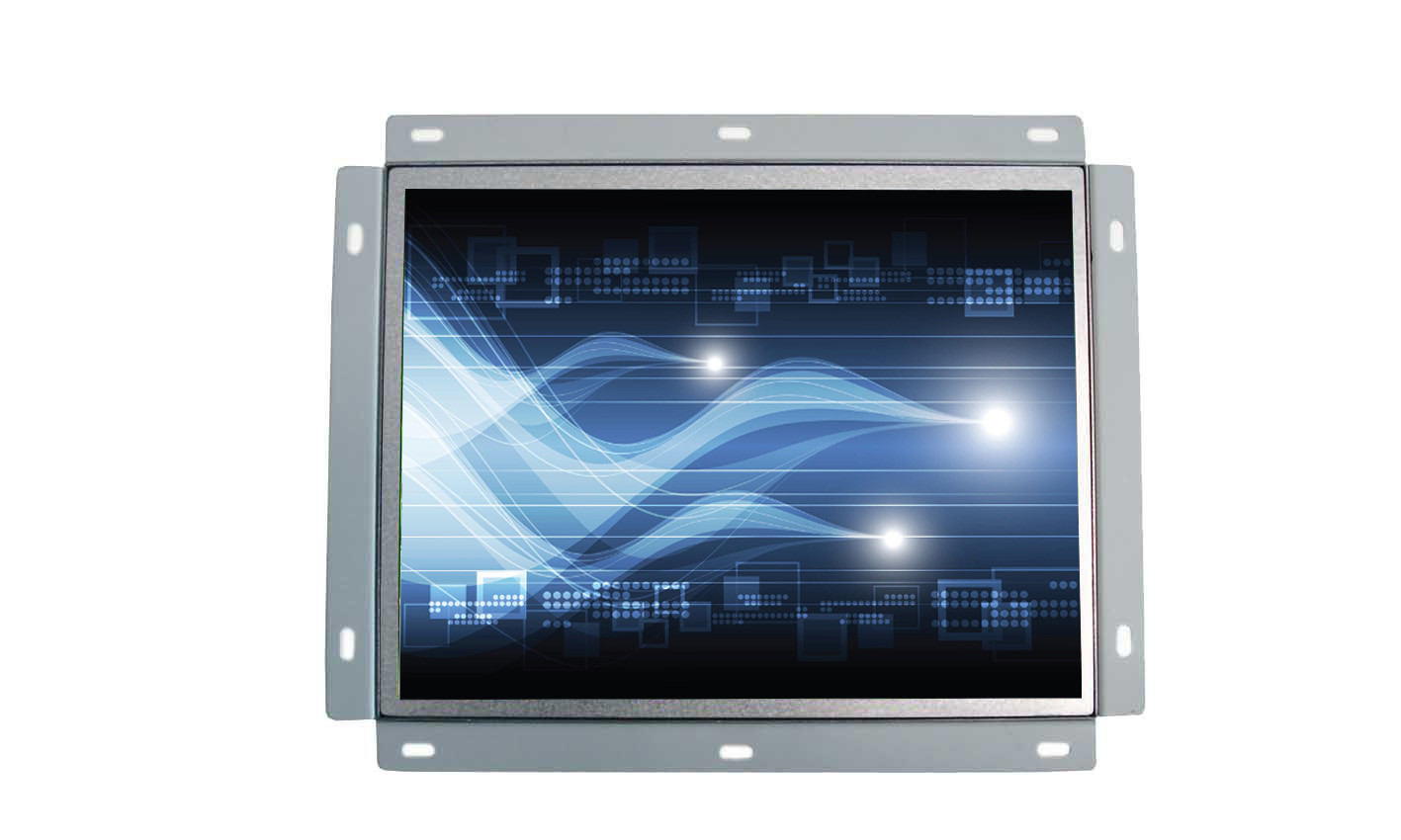

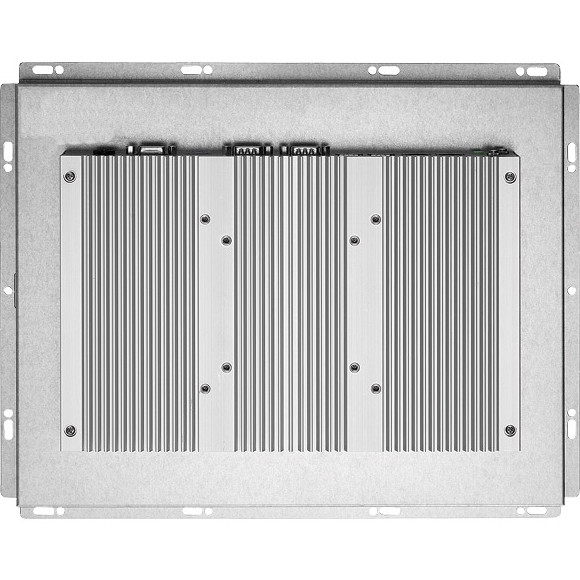

12.1" open frame fanless panel PC with resistive capacitive touch screen

ITD open frame panel computers have a touchscreen and are designed to last even in extreme environments with exposure to heat, cold, dust, and moisture. They have a slim and fanless design and are made of a rugged steel to protect from dust and moisture, as well as shock and vibrations. The bright TFT display panel allows for screen visibility in poor conditions. ITD’s open frame panel computers will optimize your industrial applications and ensure that your operations run smoothly.

Specifications:

Open Frame Panel PC
Model Name		ITD12PPCG1F**
IP Rating		N/A
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch/cm)		12.1”
Display Active Screen Size (mm)		248(H) x 186(V)mm
Aspect Ratio		4:3
Physical Resolution		800 x 600
Maximum Resolution Supported		1920 x1080
Colors		16.7M
Brightness (cd/m²)		300nits
Contrast Ratio		500:1
View Angels		80/80/70/70
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		17W
Order Information
12.1”Open Frame Panel PC with Resistive Touch, J1900		ITD12PPCT1FJ1
12.1”Open Frame Panel PC with PCAP Touch, J1900		ITD12PPCT5FJ1
12.1”Open Frame Panel PC with IR Touch, J1900		ITD12PPCT2FJ1
12.1”Open Frame Panel PC with Tempered Glass, J1900		ITD12PPCG1FJ1
12.1”Open Frame Panel PC with Resistive Touch, i5		ITD12PPCT1FI5
12.1”Open Frame Panel PC with PCAP Touch, i5		ITD12PPCT5FI5
12.1”Open Frame Panel PC with IR Touch, i5		ITD12PPCT2FJ1
12.1”Open Frame Panel PC with Tempered Glass, i5		ITD12PPCG1FI5
