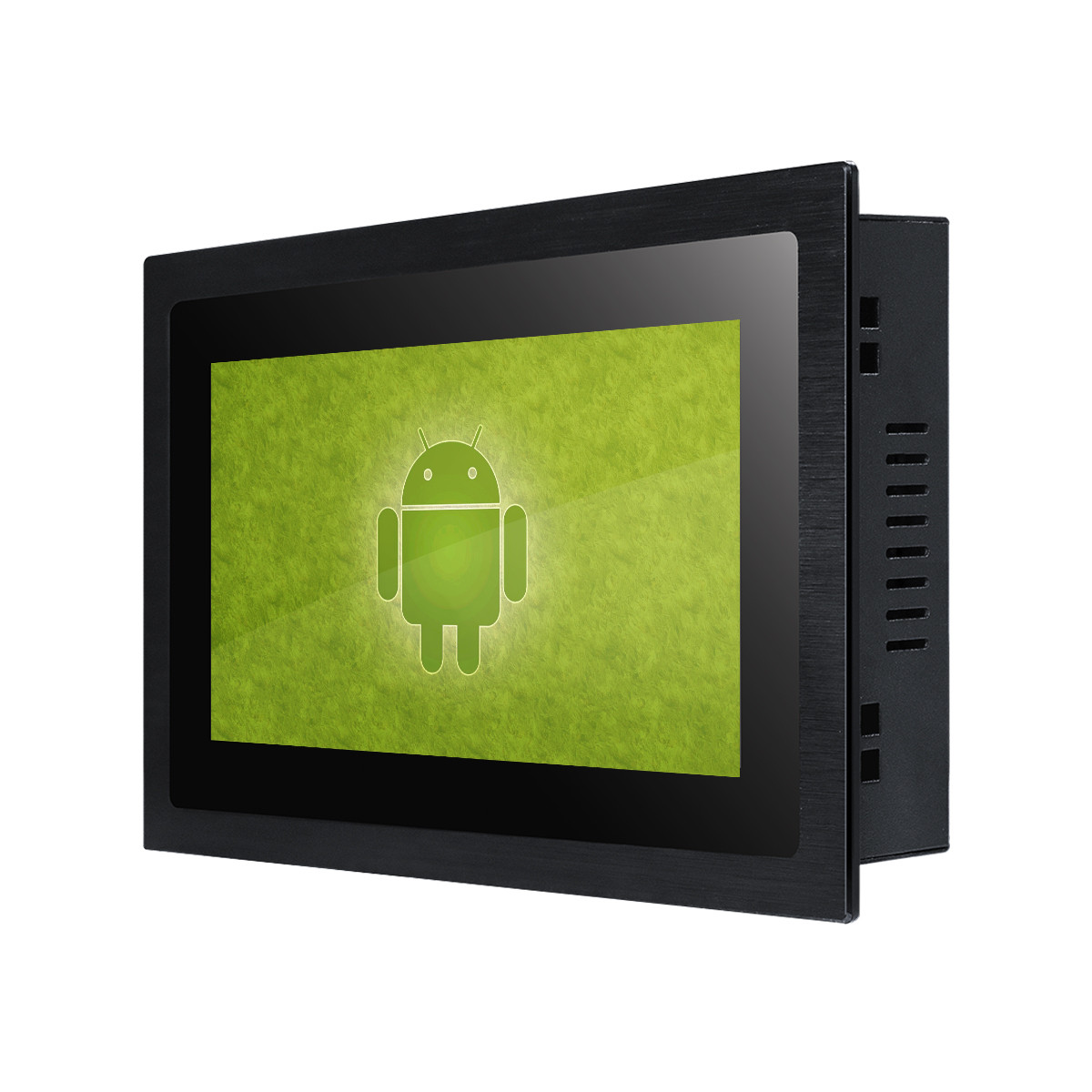

android industrial panel pc 7 inch resistive touch screen PoE for IoT
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Responds to a light touch to activate response
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS
•DC 24V, DC9-36V, AC100-240V
High brightness, sunlight readable
•Resistive touch screen, tempered glass
•Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc.
PARAMETERS
| Panel |
Cell Type/Glass Surface |
TFT |
| Size/ Aspect Ratio |
7”/16:9 |
| Active Area/ Pixel Pitch |
153.6(W) x 90(H)mm/0.150 × 0.150mm |
| Native Resolution/ Colors |
1024 x 600/ 262K/16.7M |
| Brightness/ Contrast |
400cd/㎡/800:1 |
| Response Time |
50ms |
| Viewing Angle (Typical) |
85/85/85/85 |
| Light Source |
LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System |
CPU: ARM Quad Core RK3288, Main CPU frequency:1.8GHz
GPU: Mali-T764 GPU
SDRAM: 2G; 4G Optional
Flash: 8G: 16G/32G/64G/128G Optional
OS: Android 7.1/8 (Linux Ubuntu optional); Bluetooth: 4.1
Video Decoder: 4K VP8 and 4K 10bits H265/H264
1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc
Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM
/H264/VP8/MVC
Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
|

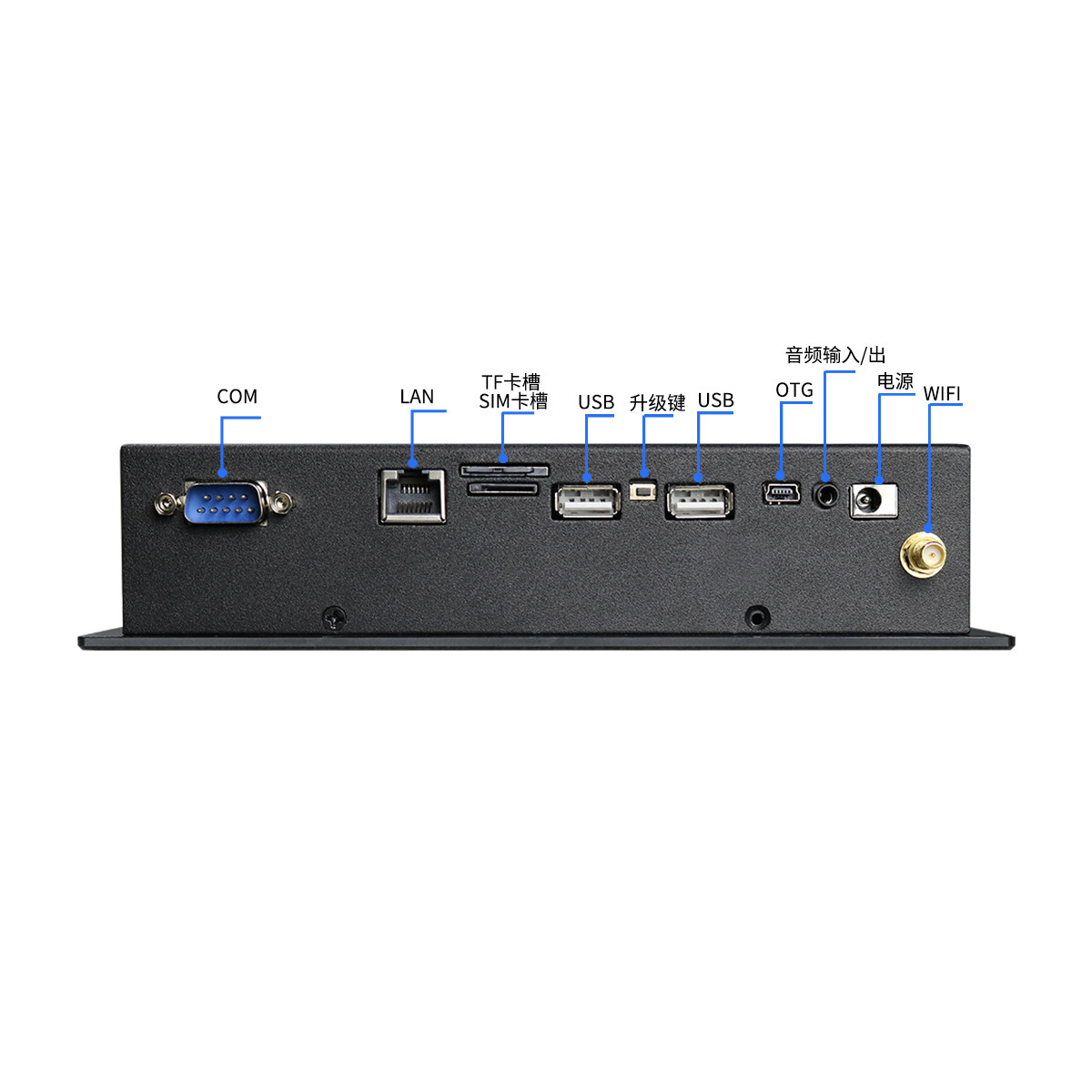

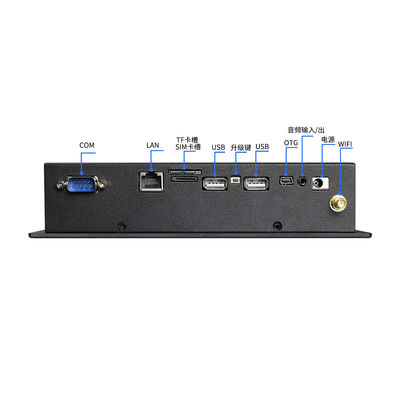

| Input / Output |
1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); COM(Optional);
1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional
1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);
|
| Operating Temperature |
-10~60℃(-20~70℃ Optional) |
| Storage Temperature |
-20~70℃ |
| Relative Humidity |
10%~90% (Non-Condensing) |
| Order Information |
7”Flat Bezel Android Panel PC with PCAP Touch/ITD07PPCT5XE31 |
| 7”Flat Bezel Android Panel PC with Tempered Glass/ITD07PPCG1XE31 |
