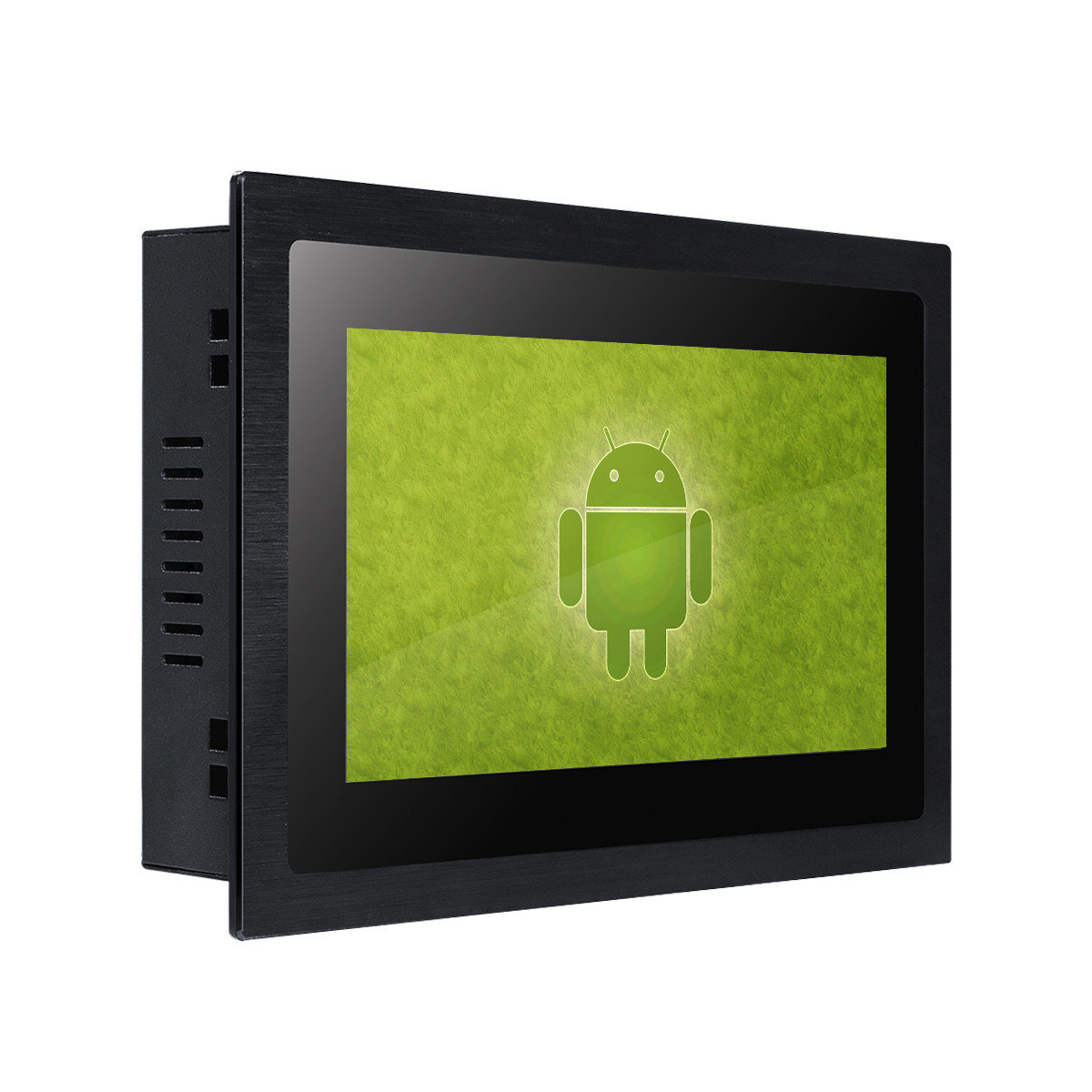

Name: 7 inch embedded panel PC Android 10 industrial tablet PoE optional
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD07PPCT5XE31
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Operating Temperature: -10~60℃(-20~70℃ Optional)

Housing Type: Panel Mount/VESA Mount

Housing Material: Aluminum Front Bezel, Steel Chassis

Color: Silver Or Black

MTBF: 50000Hours

Operating Humidity: 10%-90% (Non Condensing)

24/7/365 Use: Supported

Brightness: 1000nits Or 1500nits

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD07PPCT5XE31

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000PCS/Month

Gallery

7 inch embedded panel PC Android 10 industrial tablet PoE optional

Product Description

7 inch embedded panel PC Android 10 industrial tablet PoE optional

Features:

7" LCD panel 1024*600m 16:10, 500nits
Projected capacitive touch or reisistive touch
Flat surface, easy-to-clean, IP65 front
RK3288 or RK3399 Amdroid 7.1/8/9/10
DC12V, DC9-36V inputs

Applications for embedded panel PC
-Automation
-Transportation
-Banking
-Kiosks
-Digital Signage

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	7”/16:9
	Active Area/ Pixel Pitch	153.6(W) x 90(H)mm/0.150 × 0.150mm
	Native Resolution/ Colors	1024 x 600/ 262K/16.7M
	Brightness/ Contrast	400cd/㎡/800:1
	Response Time	50ms
	Viewing Angle (Typical)	85/85/85/85
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU: ARM Quad Core RK3288, Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 7.1/8 (Linux Ubuntu optional); Bluetooth: 4.1 Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

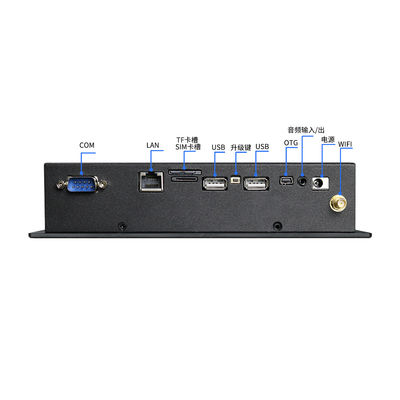

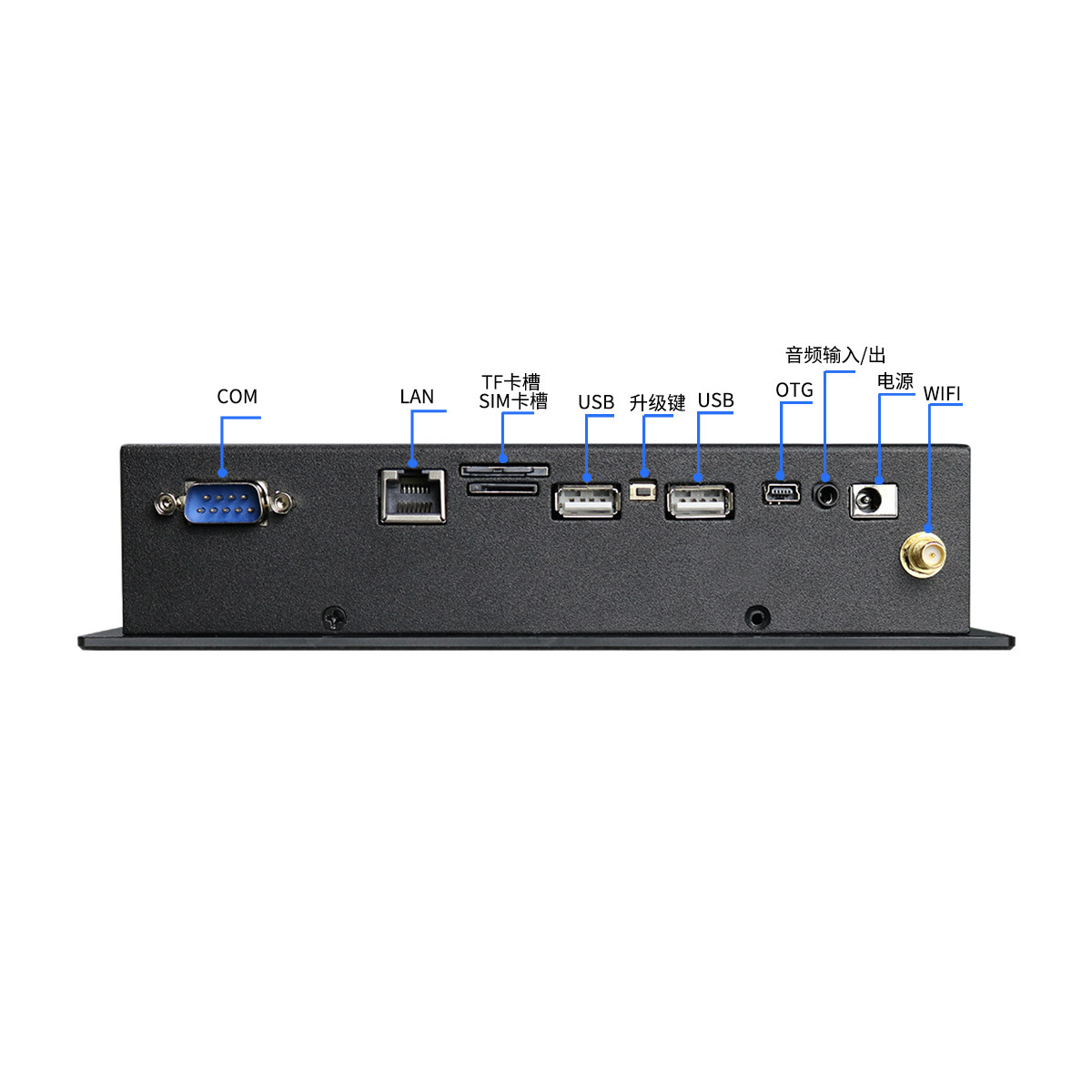

Input / Output	1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); COM(Optional); 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);
Operating Temperature	-10~60℃(-20~70℃ Optional)
Storage Temperature	-20~70℃
Relative Humidity	10%~90% (Non-Condensing)
Order Information	7”Flat Bezel Android Panel PC with PCAP Touch/ITD07PPCT5XE31
Order Information	7”Flat Bezel Android Panel PC with Tempered Glass/ITD07PPCG1XE31
