Name: 5 Wires Resistive Touch Screen Panel PC IP66 IP67 Waterproof 17" CE Compliance
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD17PPCG1IP**
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900/i3/i5/i7/RK3288

Material: Stainless Steel Housing

Screen Diagonal: 17"

Display Active Screen Size: 337.92(W) X 270.34(H)mm

Physical Resolution: 1280X1024

Compliance: CE,FCC,ROHS

Optional Functions: Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, GPS

Highlight:

rugged industrial computers

rugged industrial pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD17PPCG1IP**

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Delivery Time: 15-20 working days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

5 Wires Resistive Touch Screen Panel PC IP66 IP67 Waterproof 17" CE Compliance

Product Description

17" 5 wires resistive touch screen panel PC capacitive touch IP66 IP67 waterproof stainless steel rugged panel PC

FEATURES
•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption
•CE, FCC, RoHS Compliance

Specifications

OPTIONALS

• DC 24V, DC9-36V, AC100-240V	• Optical bonding, IP67
• Resistive, IR, PCAP touch screen, AR/AG tempered glass	• WIFI, 3G, 4G, Bluetooth
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc.	• Stainless Steel, Aluminum Alloy

DISPLAY

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	17”/4:3
	Active Area/ Pixel Pitch	337.92(W) x 270.34(H)mm/0.264 × 0.264mm
	Native Resolution/ Colors	1280 x 1024/16.7M
	Brightness/ Contrast	250cd/㎡/1000:1
	Response Time/ Viewing Angle(Typical)	5ms/85/85/80/80
	Light Source	LED Backlight with 50000Hours’Lifetime

SYSTEM

Item	Android Solution	X86 Solution 1	X86 Solution 2
CPU	ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)	Intel® Celeron J1900 2.0GHz	Intel® Core i3/i5/i7
Chipset	RK3288	Intel Bay Trail SoC	Intel SoC Chipset
Memory	2GB; 4GB Optional	Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB	2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage	8GB: 16GB/32GB/64GB Optional	1 x SATA, 1 x mSATA, Default to 64GB SSD	1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics	Supports max. 4K resolution	Intel HD Graphics (By CPU)	Intel HD Graphics (By CPU)
Default Waterproof I/O	2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional	2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional	2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional
LAN	1 x 10/100/1000Mbps Ethernet	1 x 10/100/1000Mbps Ethernet	1 x 10/100/1000Mbps Ethernet
OS	Android 6.0 (Android 7.0 optional)	Windows 7/8/10, Linux	Windows 7/8/10, Linux

GENERAL

Power	Input Voltage	DC 12V 2.0
	Operation/Power Saving	20-45W
Environment Considerations	Operating Temperature	-10~60℃
	Storage Temperature	-20~70℃(-20~70℃ optional)
Mounting	VESA Mount, Panel/Embedded Mount optional
Order Information	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD17PPCG1IP*E2
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD17PPCT1IP*E2
	17” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD17PPCT5IP*E2
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD17PPCG1IP*J2
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD17PPCT1IP*J2
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD17PPCT5IP*J2
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD17PPCG1IP*I3
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD17PPCT1IP*I3
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD17PPCT5IP*I3
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD17PPCG1IP*I5
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD17PPCT1IP*I5
	17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD17PPCT5IP*I5

Product Display

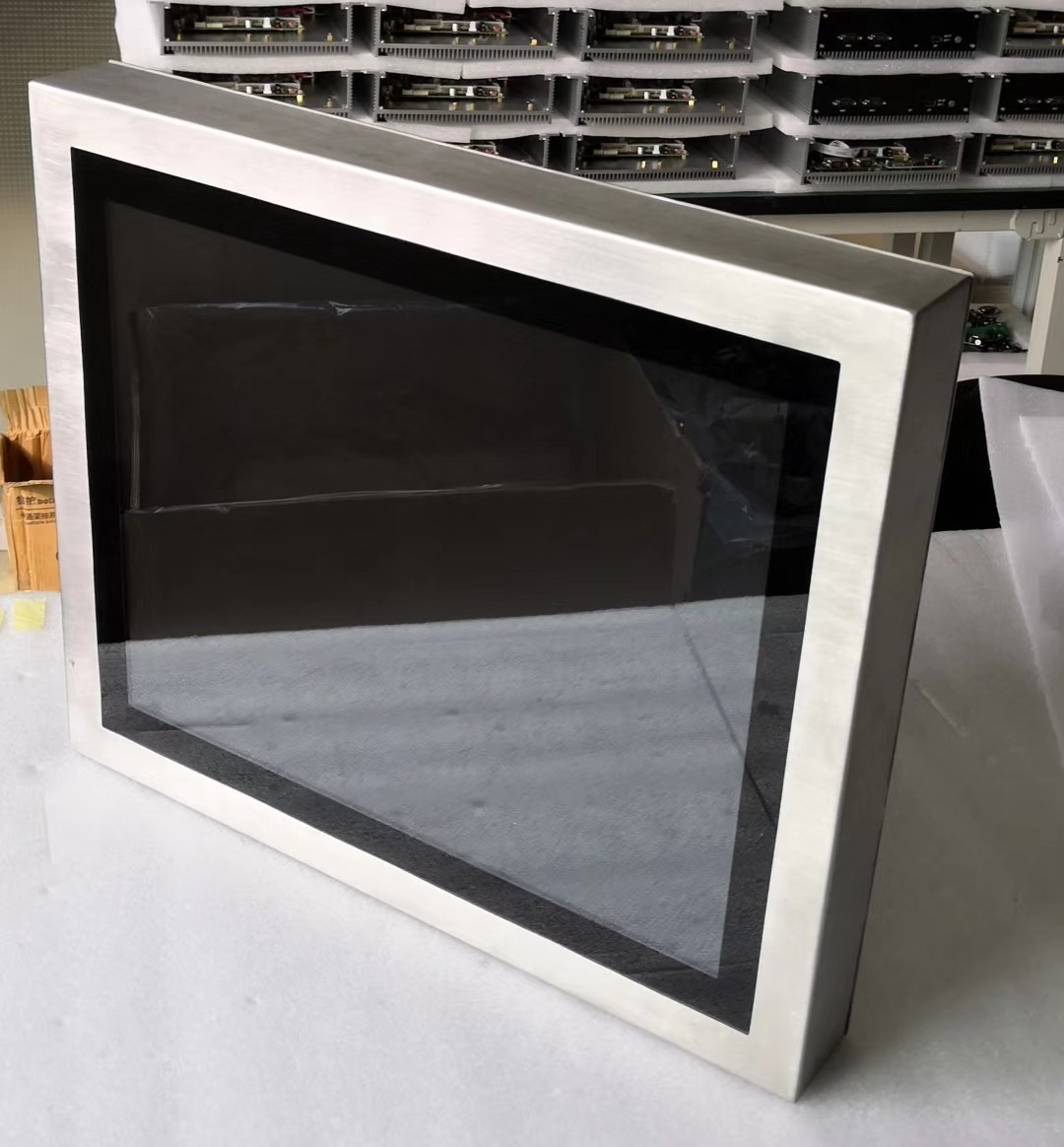

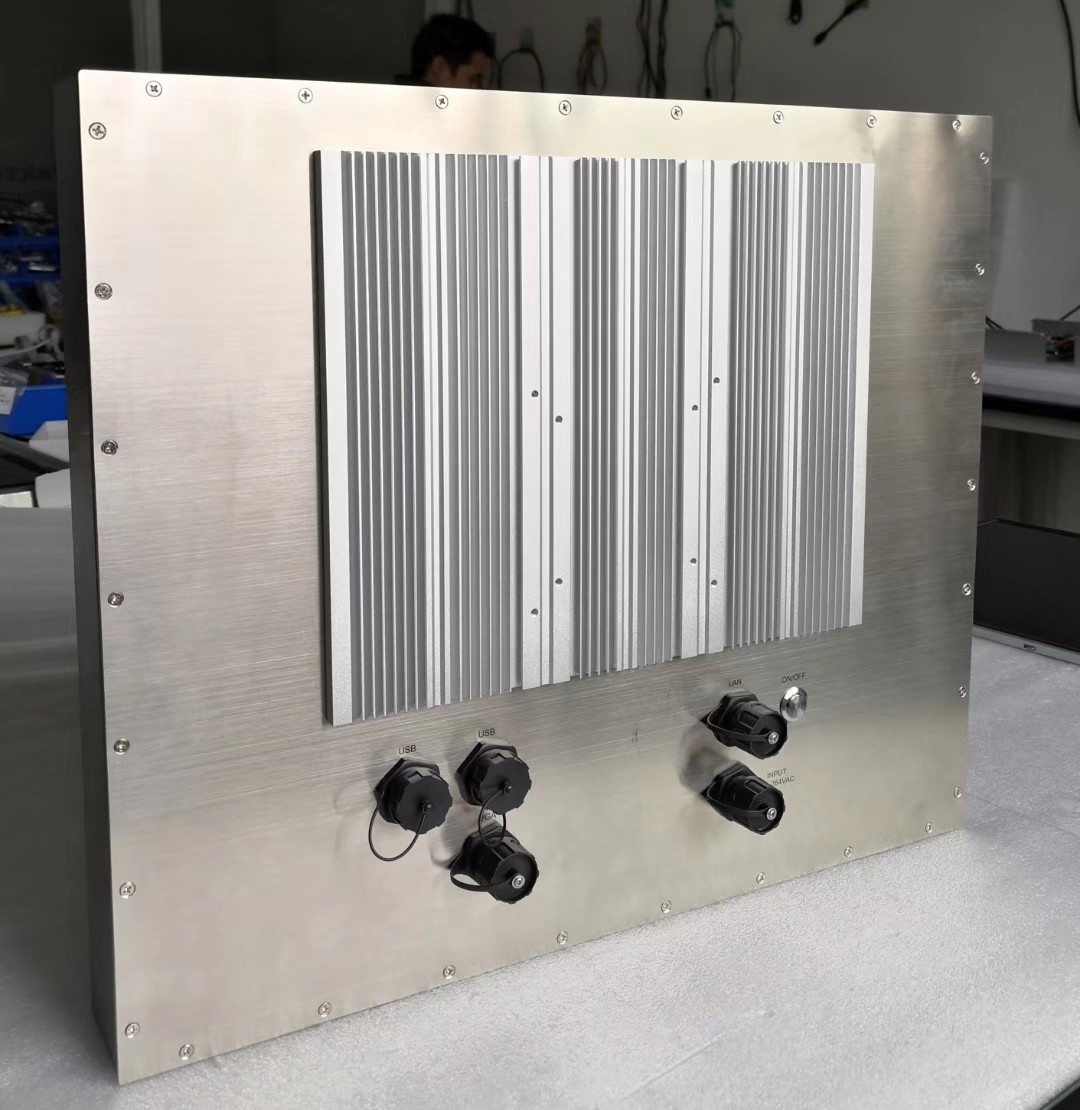

IP67 stainless steel panel PC

IP67 water proof pure flat panel PC
ip67 rugged panel PC stainless steel
5 Wires Resistive Touch Screen Panel PC IP66 IP67 Waterproof 17" CE Compliance 3
