Name: 55 Inch Sunlight Readable Panel PC With Touchscreen / CPU / SSD Optional
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD55PPCT1HBJ1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Housing Material: Steel Chassis

Color: Black Or Silver

24/7/365 Use: Supported

Brightness: 1000nits

CPU: J1900,i3,i5,i7

Resolution: 1920*1080

Highlight:

all in one touch pc

all in one panel pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD55PPCT1HBJ1

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000PCS/Month

Gallery

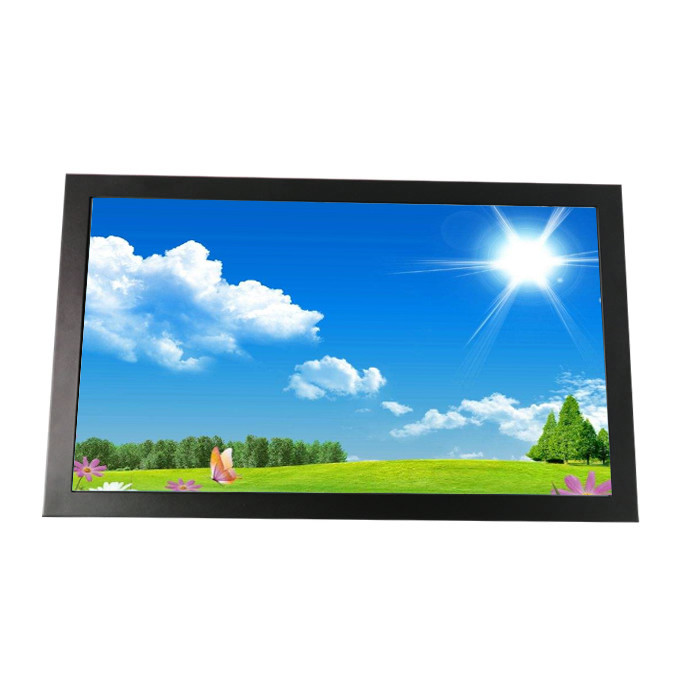

55 Inch Sunlight Readable Panel PC With Touchscreen / CPU / SSD Optional

Product Description

55 inch high brightness sunlight readable chassis touch all in one pc Panel PC with touchscreen,CPU,RAM,SSD optional

ITD high brightness panel touch computer features a wide operating temperature range for greater reliability in harsh environments which are common in marine applications. Either in on-shore and off-shore applications, it offers superior display as it is equipped with a dimmable sunlight readable feature. Moreover, there's an optional touchscreen capability for interactive applications. It also supports various I/O ports for flexible connectivity.

BENEFITES

- 4GB, Max.8G System Memory

- Resistive Touch Screen Standard (PCAP, IR Touch Optional)

- Energy Efficient, Low Power Consumption

- 55" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)

- High-Luminance Solid-State LED-enhanced Backlighting

- Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional

- Intel Celeron 2 GHz Quad Core Processor

Chassis High Brightness Panel PC
Model Name		ITD55PPCG1HBL**
IP Rating		IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		55”
Display Active Screen Size (cm)		1209.6(H)×680.4(V)
Aspect Ratio		16:9
Physical Resolution		1920×1080
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		1000(1500 Optional)
Contrast Ratio		3000:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW, Touch Foil
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		Internal Power Supply, AC100V~240V
Power Consumption		300W
Order Information
55”1500nits Chassis Panel PC with Resistive Touch, J1900		ITD55PPCT1HBLJ1
55”1500nits Chassis Panel PC with PCAP Touch, J1900		ITD55PPCT5HBLJ1
55”1500nits Chassis Panel PC with IR Touch, J1900		ITD55PPCT2HBLJ1
55”1500nits Chassis Panel PC with Tempered Glass, J1900		ITD55PPCG1HBLJ1
55”1500nits Chassis Panel PC with Resistive Touch, i5		ITD55PPCT1HBLI5
55”1500nits Chassis Panel PC with PCAP Touch, i5		ITD55PPCT5HBLI5
55”1500nits Chassis Panel PC with IR Touch, i5		ITD55PPCT2HBLJ1
55”1500nits Chassis Panel PC with Tempered Glass, i5		ITD55PPCG1HBLI5

APPLICATION
55 Inch Sunlight Readable Panel PC With Touchscreen / CPU / SSD Optional 2

OUR FACTORY
55 Inch Sunlight Readable Panel PC With Touchscreen / CPU / SSD Optional 3
