Name: 42 touch screen all in one pc large format display OPS computer
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD43PPCT5KI5
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Housing Material: Aluminum Frame, Steel Chassis

Color: Black Or Silver

Housing Type: VESA Mounting

MTBF: 50000Hours

Operating Temperature: 0~50℃

Operating Humidity: 10%-90% (Non Condensing)

24/7/365 Use: Supported

Brightness: 400nits

CPU: ARM Based, X86 Based

Resolution: 1920*1080

RAM: 4G Max. 16G

Storage: 1*SATA, 1*mSATA

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD43PPCT5KI5

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000PCS/Month

Gallery

42 touch screen all in one pc large format display OPS computer

Product Description

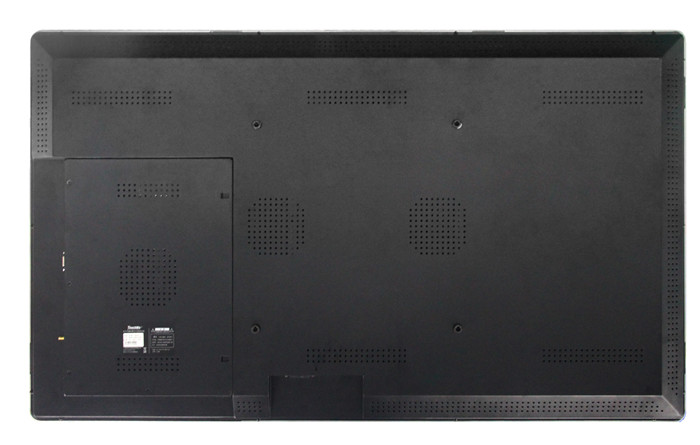

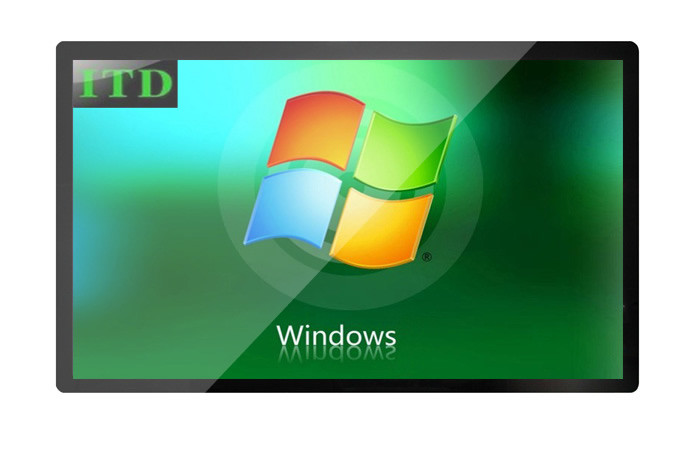

42 touch screen all in one pc large format display OPS computer

ITD 43” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.

FEATURES

▪Easy-to-clean, true flat front surface without bezel

▪Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

▪Ten independent touch points (with Windows 7/8/10, Android, and Linux operating systems)

▪Eliminates dust and debris build-up at the edge and corners of the display

▪Provides improved power efficiency and reduced consumption

▪Responds to a light touch to activate response

▪Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, and IP65 ratings

▪All steel and aluminum frame construction designed for harsh and industrial environments

▪CE, FCC, RoHS Compliance

OPTIONALS

•Tempered glass

•WIFI

•Camera, card reader built-in

•VESA brackets, side mounting, floor stand

SPECIFICATION

Panel	Cell Type/Glass Surface	TFT
	Size	43”
	Aspect Ratio	16:9
	Active Area	941.184(H) x 529.416(V)mm
	Pixel Pitch	0.4902×0.4902mm
	Native Resolution	1920 x 1080
	Colors	16.7M
	Brightness	400nits
	Contrast	1200:1
	Response Time	5ms
	Viewing Angle(Typical)	178(H)/178(V)
	Light Source	LED Backlight with 50000Hours’Lifetime
System	CPU	Intel® Core i3/i5/i7 Processor
	BIOS	AMI
	Chipset	Intel SoC Chipset
	Memory	2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
	Graphic Chipset	Intel HD Graphics (By CPU)
	Storage	1 x SATA, 1 x mSATA, Default to 64GB SSD
	LAN	1 x 10/100/1000Mbps Ethernet
Input / Output	Serial Ports	1 x COM
	USB Ports	4 X USB
	VGA Port	1 x VGA
	HDMI Port	1x HDMI Output
	Audio Card	with Realtek ALC662 Line-Out/MIC IN
Power	Input Voltage	AC100~240V
Power	Operation/Power Saving	150W
Environment Considerations	Operating Temperature	-10~50℃
	Storage Temperature	-20~70℃
	Relative Humidity	10%~90%(Non Condensing)
OS Support	Windows 7/ Windows XP/ Windows 8/ Linux/Windows 10
Mounting Method	VESA, side mounting brackets optional
Accessories	Power cable, Motherboard CD driver, Screws
Order Information	43” Zero-Bezel PCAP Touch Panel PC with Intel i3/ITD43PPCT5KI3
	43” Zero-Bezel PCAP Touch Panel PC with Intel i5/ITD43PPCT5KI5
	43” Zero-Bezel PCAP Touch Panel PC with Intel i7/ITD43PPCT5KI7
	43” Zero-Bezel Panel PC with Tempered Glass/ITD43PPCG1KI*
