Name: 32" True Flat Zero Bezel HMI Touch Panel PC 1920*1080 Native Resolution
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD32PPCT5K**
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel Core I3/i5/i7/Android/J1900

Native Resolution: 1920X1080

LAN: 1 X 10/100/1000Mbps Ethernet

USB Ports: 4X USB

Input Voltage: AC100-240V

Operating Temperature: -10~60℃

Highlight:

touch panel computer

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD32PPCT5K**

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 5-7 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 10000PCS/Month

Gallery

32" True Flat Zero Bezel HMI Touch Panel PC 1920*1080 Native Resolution

Product Description

32" true flat zero bezel HMI comfort multi pcap touch industrial PC LCD flat panel All steel and aluminum frame

ITD 32” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.

SPECIFICATIONS

Panel	Cell Type/Glass Surface	TFT
	Size	32”
	Aspect Ratio	16:9
	Active Area	698.4(H) x 392.85(V)
	Pixel Pitch	0.3638 × 0.3638mm
	Native Resolution	1920 x 1080
	Colors	16.7M
	Brightness	400nits
	Contrast	1200:1
	Response Time	5ms
	Viewing Angle(Typical)	178(H)/178(V)
	Light Source	LED Backlight with 50000Hours’Lifetime
System	CPU	Intel® Celeron J1900 2.0GHz Processor
	BIOS	UEFI
	Chipset	Intel Valley View SSA‐Cunit
	Memory	1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
	Graphic Chipset	CPU integrated graphics HD and support 1080p
	Storage	64GB SSD or 500GB HDD
	LAN	1 x 10/100/1000Mbps Ethernet
Input / Output	Serial Ports	1 x COM
	USB Ports	4 X USB
	VGA Port	1 x VGA
	HDMI Port	1x HDMI Port
	Audio Card	with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
Power	Input Voltage	AC100~240V
Power	Operation/Power Saving	80W
Environment Considerations	Operating Temperature	-10~60℃
	Storage Temperature	-20~70℃
	Relative Humidity	10%~90%(Non Condensing)
OS Support	Windows 7/ Windows XP/ Windows 8/ Linux/Windows 10
Mounting Method	VESA, side mounting brackets optional
Accessories	Power cable, Motherboard CD driver, Screws
Order Information	32” Zero-Bezel PCAP Touch Panel PC with J1900/ITD32PPCT5KJ
Order Information	32” Zero-Bezel Non Touch Panel PC with Intel J1900/ITD32PPCG1KJ

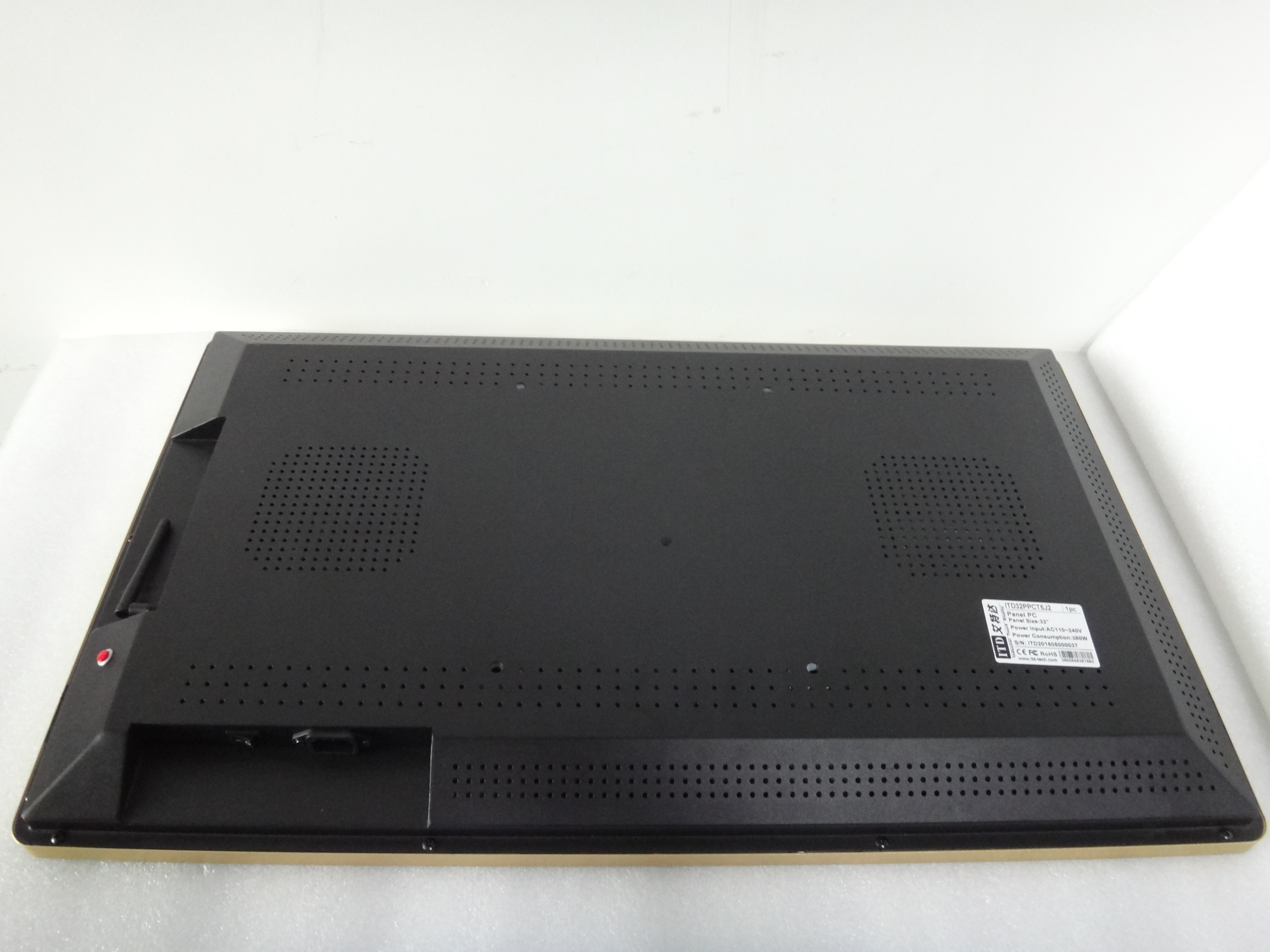

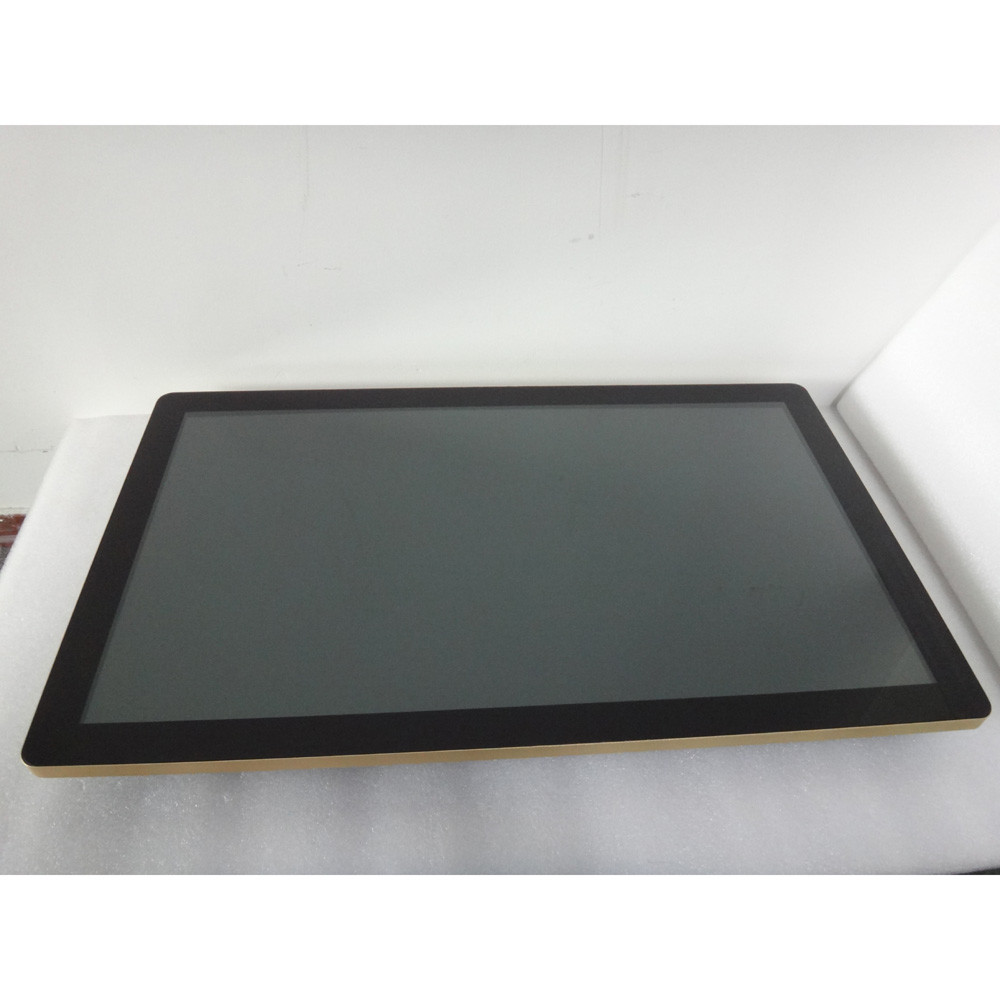

Product display:
