Name: 21.5 Inch Durable Rugged Panel PC Dustproof With 1920X1080 Resolution
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD21PPCG1IP**
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900/i3/i5/i7/RK3288

Material: Stainless Steel Housing

Screen Diagonal: 21.5"

Display Active Screen Size: 476.64(H)*268.11(V)mm

Aspect Ratio: 16:9

Physical Resolution: 1920X1080

View Angels: 80/85/85/85

Backlife: LED Backlight With 50000 Hours’lifetime

Highlight:

rugged industrial computers

rugged industrial pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD21PPCG1IP**

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Delivery Time: 15-20 working days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

21.5 Inch Durable Rugged Panel PC Dustproof With 1920X1080 Resolution

Product Description

21.5 inch rugged full IP65 panel PC waterproof dustproof

ITD full IP66 waterproof Industrial panel PCs are recognizable by their special protective functions and their corresponding IP rating codes “IP65” or “IP66” or “IP67” and are cased in sturdy and slim protective housings made of high-strength stainless steel or aluminum profiles. They have been constructed to provide complete protection from any form of contact with water, dust, dirt, etc.

FEATURES

- Open platform enables Machine-to-Machine applications

- Brushed stainless steel enclosure, sealed I/O from particles, water, and corrosive agents

- Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection

- Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports

- Flexible, reliable, and ruggedized for open platform HMI/SCADA

- Technical support for drivers, hardware, troubleshooting procedures and general system issues

Specifications

Full IP65/IP66 Touchscreen Panel PC
Model Name		ITD21PPCG1IP**
IP Rating		IP65/IP66(IP67 optional)
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0
LCD Panel
Screen Diagonal (Inch/cm)		21.5”
Display Active Screen Size (mm)		476.64(H)*268.11(V)mm
Aspect Ratio		16:9
Physical Resolution		1920x1080
Maximum Resolution Supported		1920x1080
Colors		16.7M
Brightness (cd/m²)		250nits
Contrast Ratio		1000:1
View Angels		80/85/85/85
Backlight/Backlight Lifetime		LED backlight with 50000 hours’lifetime
Touch Panel
Touch Options		Resistive, PCAP
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		49W
Order Information
21.5”Full IP65/IP66 Panel PC with Resistive Touch, J1900		ITD21PPCT1IPJ1
21.5” Full IP65/IP66 PC with PCAP Touch, J1900		ITD21PPCT5IPJ1
21.5” Full IP65/IP66 Panel PC with Tempered Glass, J1900		ITD21PPCG1IPJ1
21.5” Full IP65/IP66 Panel PC with Resistive Touch, i3		ITD21PPCT1IPI3
21.5” Full IP65/IP66 Panel PC with PCAP Touch, i3		ITD21PPCT5IPI3
21.5” Full IP65/IP66 Panel PC with Tempered Glass, i3		ITD21PPCG1IPI3

Product Display

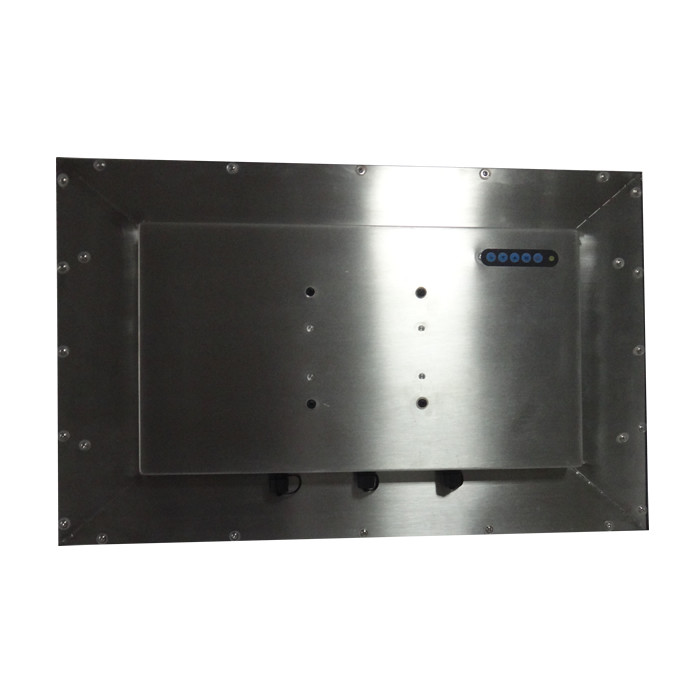

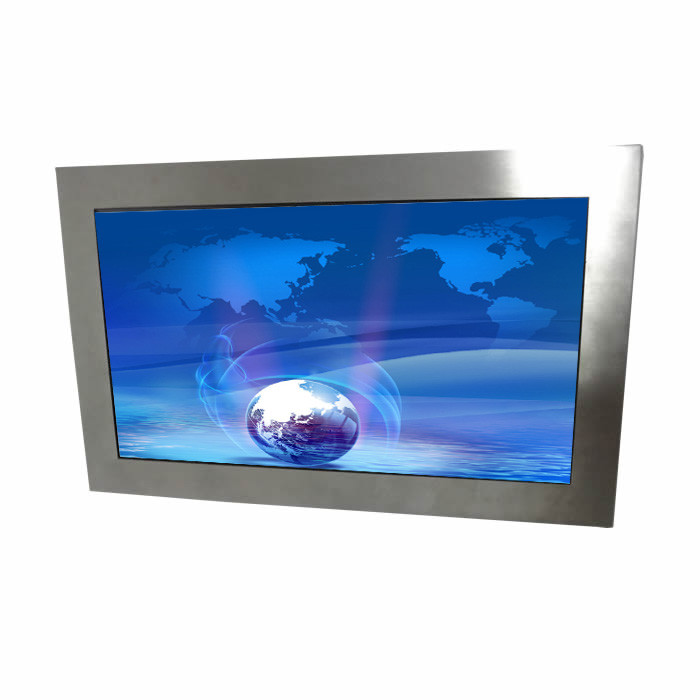

21.5 Inch Durable Rugged Panel PC Dustproof With 1920X1080 Resolution 0

21.5 Inch Durable Rugged Panel PC Dustproof With 1920X1080 Resolution 1

Factory:

21.5 Inch Durable Rugged Panel PC Dustproof With 1920X1080 Resolution 2
