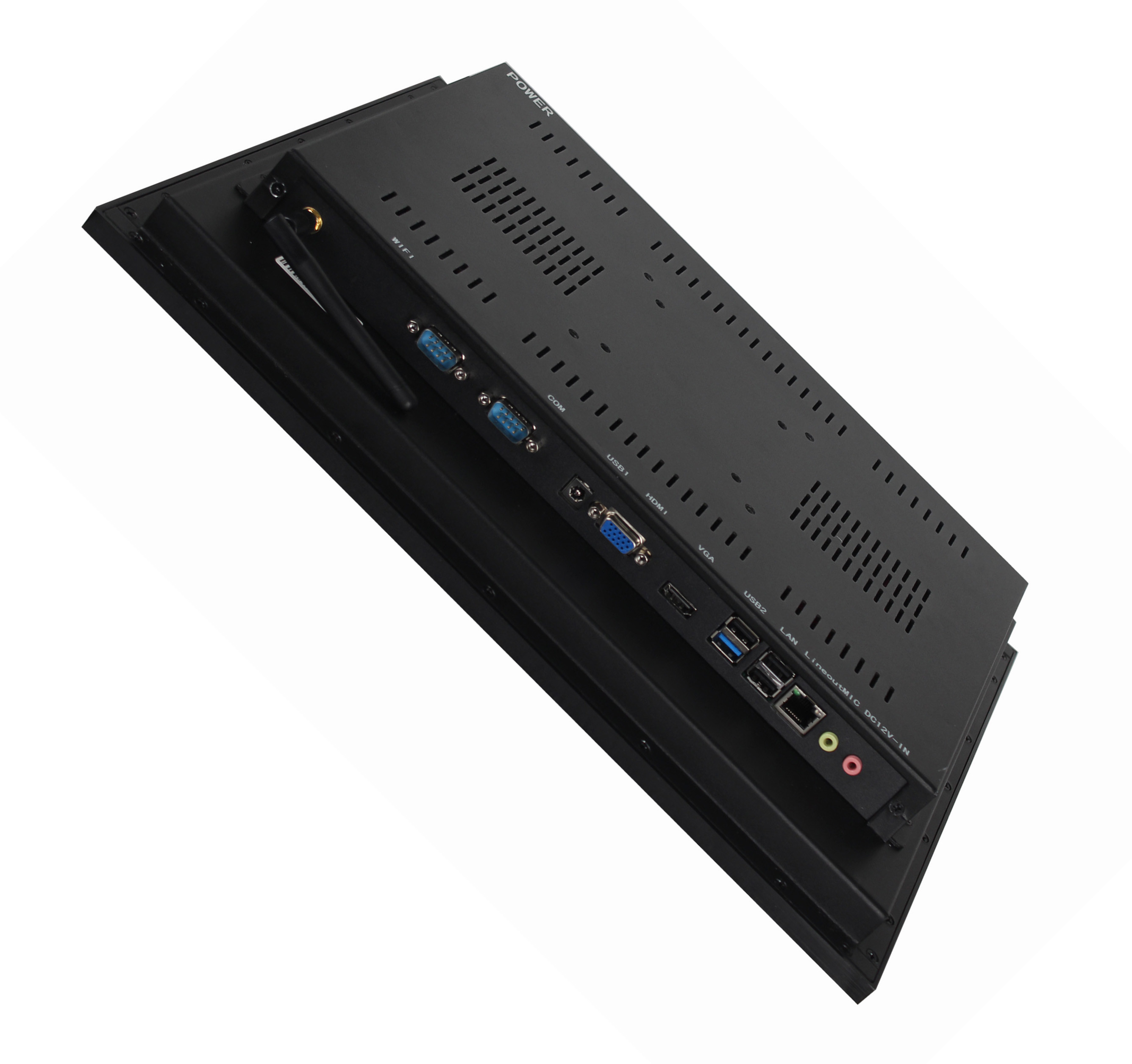

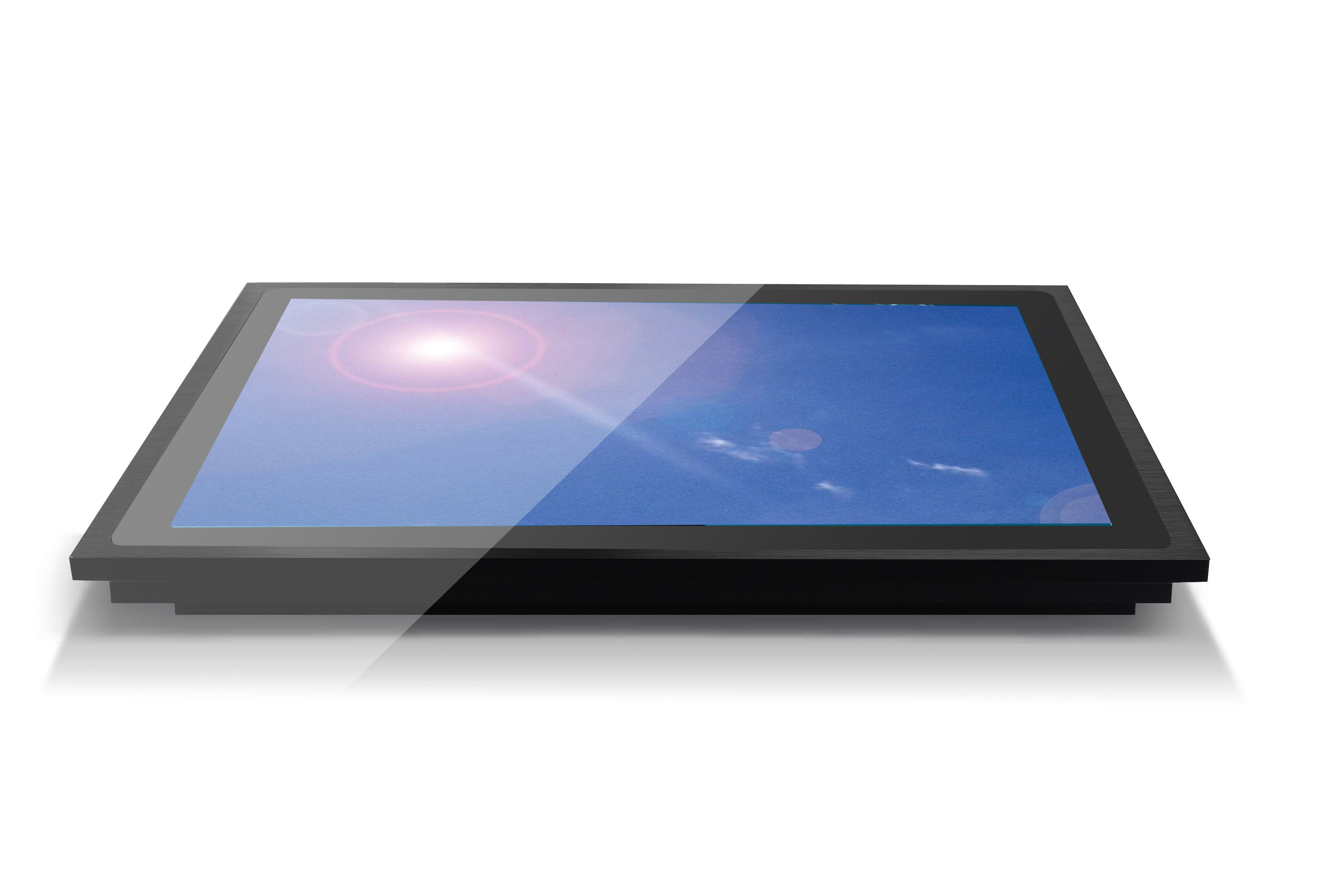

Name: 19 Inches Wide Screen Open Frame Panel PC Industrial Touch Panel PC IP65
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD19PPCT1HBJ1W
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Operating Temperature: -10~60℃(-20~70℃ Optional)

Operating Humidity: 10%-90% (Non Condensing)

Brightness: 1000nits

CPU: J1900,1037U,i3,i5,i7

Resolution: 1440*900

Aspect Ratio: 16:10

Highlight:

all in one touch pc

all in one panel pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD19PPCT1HBJ1W

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000PCS/Month

Gallery

19 Inches Wide Screen Open Frame Panel PC Industrial Touch Panel PC IP65

Product Description

19 inch wide screen industrial sunlight readable flat bezel touch all in one Panel PC with PCAP touchscreen

ITD's 19" high bright sunlight readable Panel PC's are built with industrial grade components, and integrated with the Intel Celeron Processor J1900. These sunlight readable Panel PC's are perfect for many demanding environments that require a space saving solution capable of 24/7 high performance computing. All of our panel pc bezels are gasket sealed for added NEMA and Ingress Protection

BENEFITES

- Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional

- Intel Celeron 2 GHz Quad Core Processor

- High-Luminance Solid-State LED-enhanced Backlighting

- Resistive Touch Screen Standard (PCAP, IR Touch Optional)

- Energy Efficient, Low Power Consumption

- High Environmental Performance and Reliability

- 4GB, Max.8G System Memory

- 500GB HDD or 126GB SSD, Bigger Capacity Optional

- SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)

- Wide Operational Temperature Range, -10°C to +60°C

Flat Bezel High Brightness Industrial Panel PC
Model Name		ITD19PPCG1HBXL**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		19”
Display Active Screen Size (cm)		408.24(H)×255.15(V)
Aspect Ratio		16:10
Physical Resolution		1440×900
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		1000(1500 Optional)
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		34W
Order Information
19W”1000nits Panel Mount Panel PC with Resistive Touch, J1900		ITD19PPCT1HBXWJ1
19W”1000nits Panel Mount Panel PC with PCAP Touch, J1900		ITD19PPCT5HBXWJ1
19W”1000nits Panel Mount Panel PC with Tempered Glass, J1900		ITD19PPCG1HBXWJ1
19W”1000nits Panel Mount Panel PC with Resistive Touch, i5		ITD19PPCT1HBXWI5
19W”1000nits Panel Mount Panel PC with PCAP Touch, i5		ITD19PPCT5HBXWI5
19W”1000nits Panel Mount Panel PC with Tempered Glass, i5		ITD19PPCG1HBXWI5

APPLICATION

OUR FACTORY
19 Inches Wide Screen Open Frame Panel PC Industrial Touch Panel PC IP65 1
