Name: 19" AIO industrial computer true flat surface pcap touch PC
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD19PPCT5KI5
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model Name: ITD19PPCG1K**

CPU: Intel J1900,i3,i5,i7,ARM Android

Screen Diagona: 19"

Display Active Screen: 376.32 (H) ×301.06(V) Mm

Physical Resolution: 1280×1024

Brightness (cd/m²): 250nits

View Angels: 85/85/80/80

Touch Technology: Projected Capacitive Touch With 10 Touch Points

Operating Temperature Range: -10~60°C (-20~70°C Optional)

Touch Life: 50,000,000 Times/Click

Highlight:

touch display pc

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE/ROHS/FCC

Model Number: ITD19PPCT5KI5

Payment & Shipping Terms

Packaging Details: Foam,gift box,master carton,wooden case,pallet

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10000 unit per month

Gallery

19" AIO industrial computer true flat surface pcap touch PC

Product Description

19" AIO industrial computer true flat surface pcap touch PC

Specifications:

Zero-Bezel PCAP Touch Panel PC
Model Name		ITD19PPCG1K**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch/cm)		19”
Display Active Screen Size (mm)		376.32 (H) ×301.06(V)
Aspect Ratio		4:3
Physical Resolution		1280×1024
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		250nits
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Technology		Projected Capacitive Touch
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Touch Life		50,000,000 Times/Click
Surface Hardness		7H
OS Support		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		30W
Order Information
19” Zero-Bezel Touch Panel PC with PCAP Touch, J1900		ITD19PPCT5KJ1
19” Zero-Bezel Touch Panel PC with Tempered Glass, J1900 19” Zero-Bezel Touch Panel PC with PCAP Touch, i3		ITD19PPCG1KJ1 ITD19PPCT5KI3
19” Zero-Bezel Touch Panel PC with Tempered Glass, i3 19” Zero-Bezel Touch Panel PC with PCAP Touch, i5 19” Zero-Bezel Touch Panel PC with Tempered Glass, i5 19” Zero-Bezel Touch Panel PC with PCAP Touch, i7		ITD19PPCG1KI3 ITD19PPCT5KI5 ITD19PPCG1KI5 ITD19PPCT5KI7
19” Zero-Bezel Touch Panel PC with Tempered Glass, i7		ITD19PPCG1KI7

FEATURES:

-Supports Intel Celeron CPU up to 2.0 GHz

-Low power consumption and economical solution

-Compact size and high performance

-High speed Giga LAN

-On-board IDE interface

-High precision touchscreen

-Industry level of durability against dust and powerful jetting IP65 / NEMA 4

Product Display:

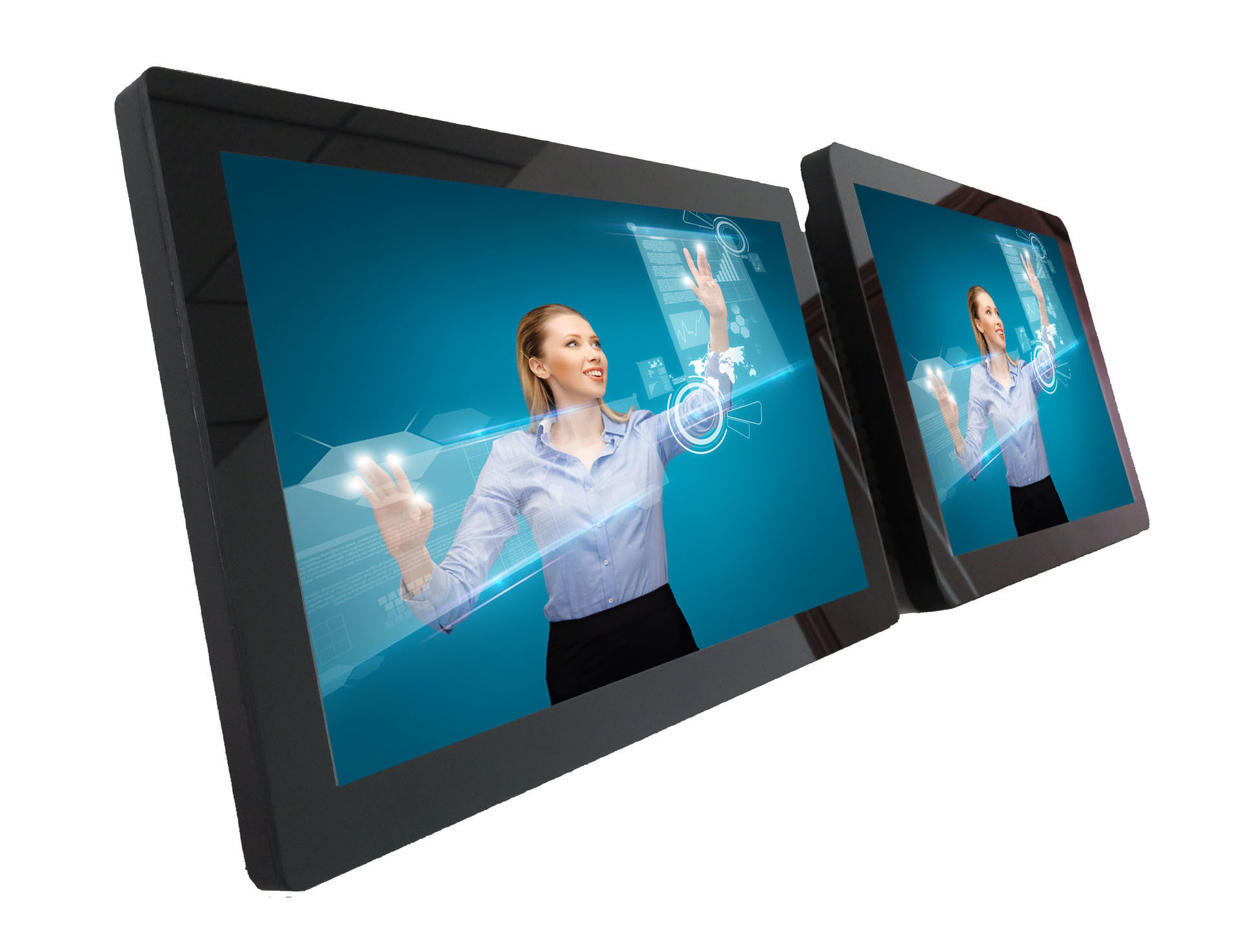

19" AIO industrial computer true flat surface pcap touch PC 0

Applications:

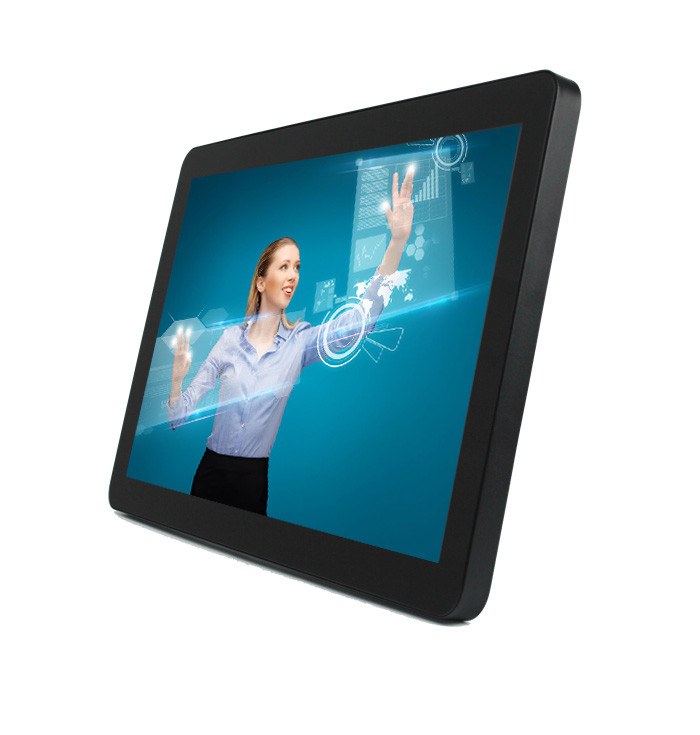

19" AIO industrial computer true flat surface pcap touch PC 2
