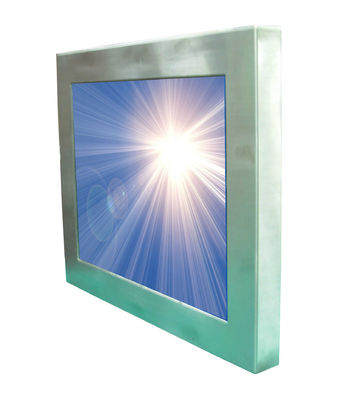

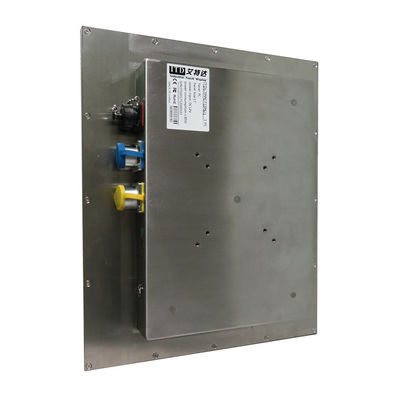

Name: 17" High Reliability Rugged All In One PC Sunlight Readable DC12V 34 Watt Power
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD17PPCT1IPHBS2
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Housing Material: Stainless Steel Chassis Or Aluminum Alloy Housing

Color: Silver

Housing Type: VESA Mount

MTBF: 50000Hours

Operating Temperature: -10~60℃(-20~70℃ Optional)

Operating Humidity: 10%-90% (Non Condensing)

24/7/365 Use: Supported

Brightness: 1000nits Or 1500nits

Highlight:

rugged industrial computers

rugged industrial pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD17PPCT1IPHBS2

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000PCS/Month

Gallery

17" High Reliability Rugged All In One PC Sunlight Readable DC12V 34 Watt Power

Product Description

17"sunlight readable full IP66 waterproof touch Panel PC computer optical bonding AR coating

ITD’s 17.0" Robust full IP65 stainless steel high bright sunlight readable panel PC, Harsh-Duty LCD Display System is waterproof to IP66 standards and engineered to withstand the harshest environments and most demanding real world applications. The optically bonded high bright display with touch screen is for true sunlight readability, exceptional clarity, and wide viewing angles.

BENEFITES
- 17" Industrial Grade TFT Panel Display, 1500 nits cd/m2
- True High Brightness Low-Power, high reliability Solid State LED Backlighting:
- Resolution: 1280 x 1024 native
- Optical Bonded Between TFT Panel and Touch Panel Optional
- Advanced Deep Dimming to Black Optional
- Engineered for All-Weathers even in direct sunlight
- Mounting Configurations: VESA,
- Default Waterproof Conectors: USB, Power Input, RJ45
- Machined NEMA 4 (IP65) Rated, Black Powder Coated, Very Rugged Stainless Steel or Aluminum Gasket Sealed Enclosure

Applications for Rugged Rugged Panel PCs
- Food processing plant automation control
- Kitchen application
- Chemical plant or laboratory
- Liquor Factory
- Clinical area / pharmaceutical / medical
-Operating and monitoring in Oil, Gas & Energy industry
- Industrial automation control in slaughtering house
- Railway/Transportation

High Brightness Full IP65/IP66 Panel PC
Model Name		ITD17PPCG1IPHB**
IP Rating		IP65/IP66(IP67 optional)
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0
LCD Panel
Screen Diagonal (Inch/cm)		17”
Display Active Screen Size (mm)		337.920(H) ×270.336(V)
Aspect Ratio		4:3
Physical Resolution		1280×1024
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		1000 cd/m²
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		Resistive, PCAP
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC12V
Power Consumption		34W
Order Information
17”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900		ITD17PPCT1IPHBSJ1
17”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900		ITD17PPCT5IPHBSJ1
17”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900		ITD17PPCG1IPHBSJ1
17”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3		ITD17PPCT1IPHBSI3
17”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3		ITD17PPCT5IPHBSI3
17”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3		ITD17PPCG1IPHBSI3
17”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, J1900		ITD17PPCT1IPHBAJ1
17”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with PCAP Touch, J1900		ITD17PPCT5IPHBAJ1
17”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Tempered Glass, J1900		ITD17PPCG1IPHBAJ1
17”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, i3		ITD17PPCT1IPHBAI3
17”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with PCAP Touch, i3		ITD17PPCT5IPHBAI3
