Name: 15"XGA industrial touchscreen LCD panel mount panel PC computer IP65 Front
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD15PPCT1J1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Housing Material: Rugged Aluminum Front Bezel, Steel Back Chassis

Color: Black Or Silver

Housing Type: Panel Mount With Clamps

MTBF: 50000Hours

Operating Temperature: -10~60℃(-20~70℃ Optional)

Operating Humidity: 10%-90% (Non Condensing)

24/7/365 Use: Supported

Highlight:

touch panel computer

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD15PPCT1J1

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm with Foams

Delivery Time: 5-15 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 10000PCS/Month

Gallery

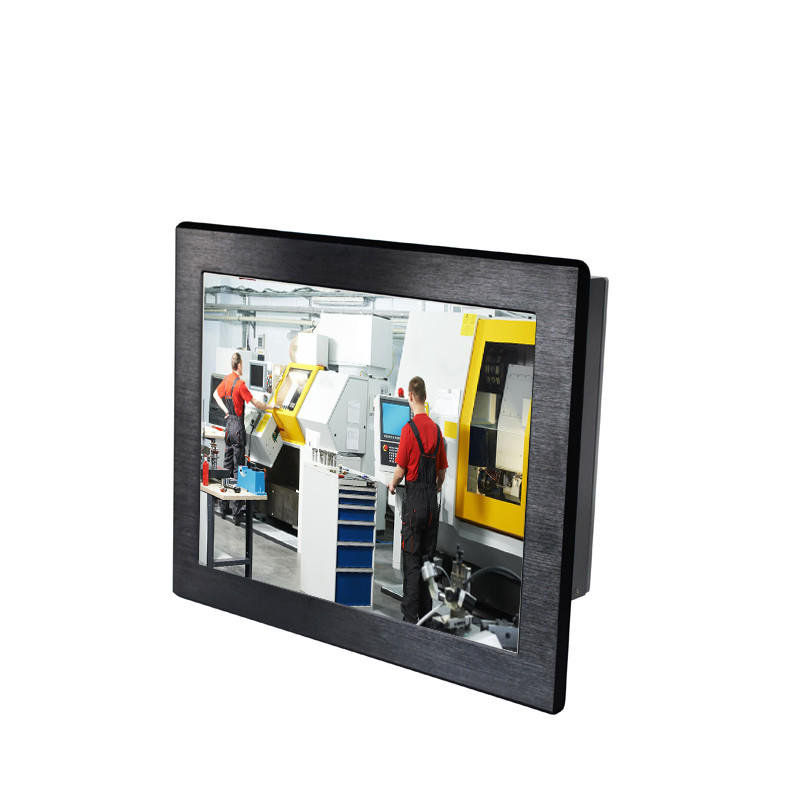

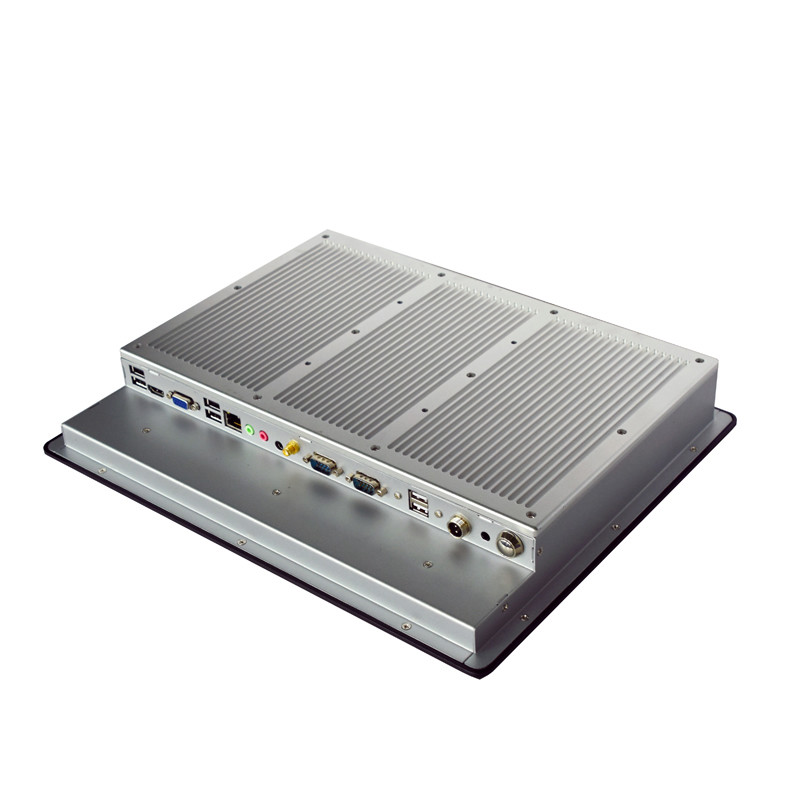

15"XGA industrial touchscreen LCD panel mount panel PC computer IP65 Front

Product Description

15"XGA industrial touchscreen LCD panel mount panel PC computer IP65 Front

ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 6mm thickness and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.

BENEFITES

Exceptional quality and highly engineered industrial panel computer
High Performance Processor, Graphics, Memory and Power
Optional touchscreens like resistive, PCAP
All steel construction designed for harsh and industrial environments
Easy-to-install embedded/panel mounting with clamps
Robust design with aluminum NEMA 4/ IP65 front panel
Flexible, reliable, and ruggedized for open platform HMI/SCADA
Long lasting product cycle for continuity thru all phases of project

Panel Mount Panel PC
Model Name		ITD15PPCG1**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		15”
Display Active Screen Size (cm)		304.13(H)×228.10(V)
Aspect Ratio		4:3
Physical Resolution		1024×768
Maximum Resolution Supported		1920×1080
Colors		16.2M
Brightness (cd/m²)		250
Contrast Ratio		700:1
View Angels		80/80/60/80
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		30W
Order Information
15”Panel Mount Panel PC with Resistive Touch, J1900		ITD15PPCT1J1
15”Panel Mount Panel PC with PCAP Touch, J1900		ITD15PPCT5J1
15”Panel Mount Panel PC with IR Touch, J1900		ITD15PPCT2J1
15”Panel Mount Panel PC with Tempered Glass, J1900		ITD15PPCG1J1
15”Panel Mount Panel PC with Resistive Touch, i5		ITD15PPCT1I5
15”Panel Mount Panel PC with PCAP Touch, i5		ITD15PPCT5I5
15”Panel Mount Panel PC with IR Touch, i5		ITD15PPCT2I5
15”Panel Mount Panel PC with Tempered Glass, i5		ITD15PPCG1I5

15"XGA industrial touchscreen LCD panel mount panel PC computer IP65 Front 0

15"XGA industrial touchscreen LCD panel mount panel PC computer IP65 Front 1

APPLICATION
