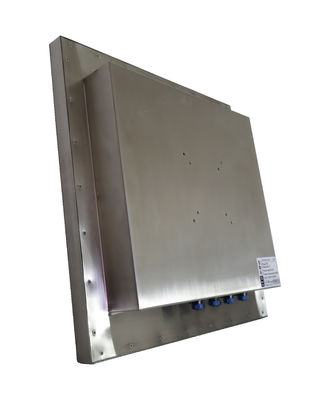

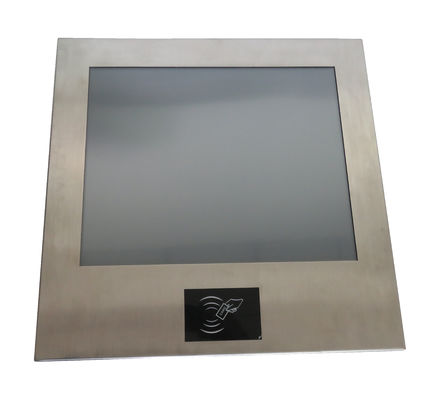

13.3" RFID card reader stainless industrial touch panel PC for smart design wall mount self service kiosk
All ITD products come standard with a 2-year comprehensive warranty. Additionally, our extended warranty service, offered up to 3 years, provide extra peace of mind that any problem will be solved quickly and effectively. ITD also offers tailored service contracts to meet our partners’ specific needs.
With service and support centers in Hong Kong, China mainland, Europe, we are able to respond quickly and efficiently to ensure uninterrupted productivity for our customers. We are committed to speedy turnaround times on repairs and service needs.
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Provides improved power efficiency and reduced consumption
▪ Responds to a light touch to activate response
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS
•DC 24V, DC9-36V, AC100-240V
•High brightness, sunlight readable
•Resistive touch screen, tempered glass
•Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc
Specs:
PARAMETERS
| Panel |
Cell Type/Glass Surface |
TFT |
| Size |
13.3” |
| Aspect Ratio |
16:9 |
| Active Area |
293.42(H)x 164.97(V)mm |
| Pixel Pitch |
0.2235× 0.2235mm |
| Native Resolution |
1920 x 1080 |
| Colors |
262K |
| Brightness |
300cd/㎡ |
| Contrast |
700:1 |
| Response Time |
16ms |
| Viewing Angle(Typical) |
89/89/89/89 |
| Light Source |
LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System |
CPU |
Intel® Celeron J1900 2.0GHz Processor |
| BIOS |
AMI |
| Chipset |
Intel Bay Trail SoC |
| Memory |
1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB |
| Graphic Chipset |
Intel HD Graphics (By CPU) |
| Storage |
1 x SATA, 1 x mSATA, Default to 64GB SSD |
| LAN |
1 x 10/100/1000Mbps Ethernet |
| Input / Output |
Serial Ports |
1 x COM |
| USB Ports |
4 X USB |
| VGA Port |
1 x VGA |
| HDMI Port |
1x HDMI Port |
| Audio Card |
with Realtek ALC662
Line-Out/MIC IN
|
| Power |
Input Voltage |
DC 12V |
| Operation/Power Saving |
20W |
| Environment Considerations |
Operating Temperature |
-10~60℃ (-20~70℃ Optional) |
| Storage Temperature |
-20~70℃ |
| Relative Humidity |
10%~90% |
Image:
