Name: 1280*1024 Industrial All In One PC , Industrial Panel PC 50000 Hours Lifetime
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD19PPCT1HBFJ1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Housing Type: Open Frame Mount, VESA Mounting

MTBF: 50000Hours

Operating Temperature: -10~60℃(-20~70℃ Optional)

Operating Humidity: 10%-90% (Non Condensing)

24/7/365 Use: Supported

Brightness: 1000nits

CPU: J1900,1037U,I3,I5,I7

Resolution: 1280*1024

Highlight:

all in one touch pc

all in one panel pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD19PPCT1HBFJ1

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 15-20 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000PCS/Month

Gallery

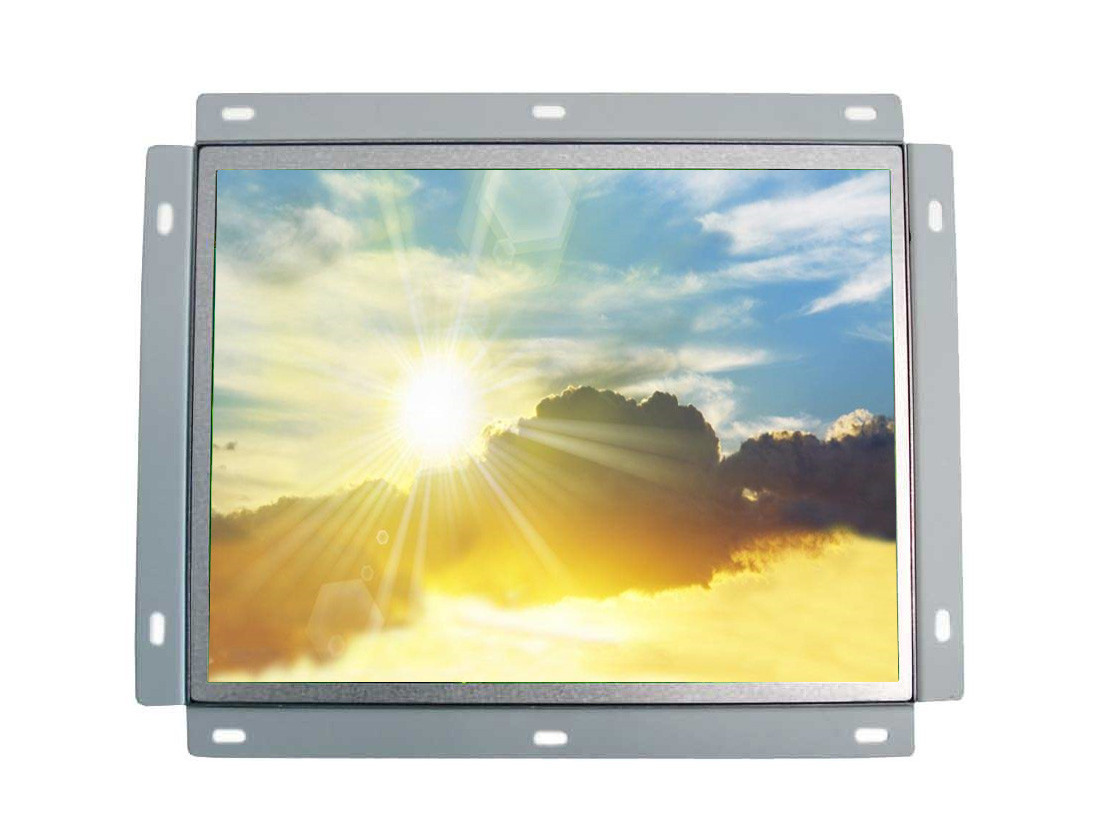

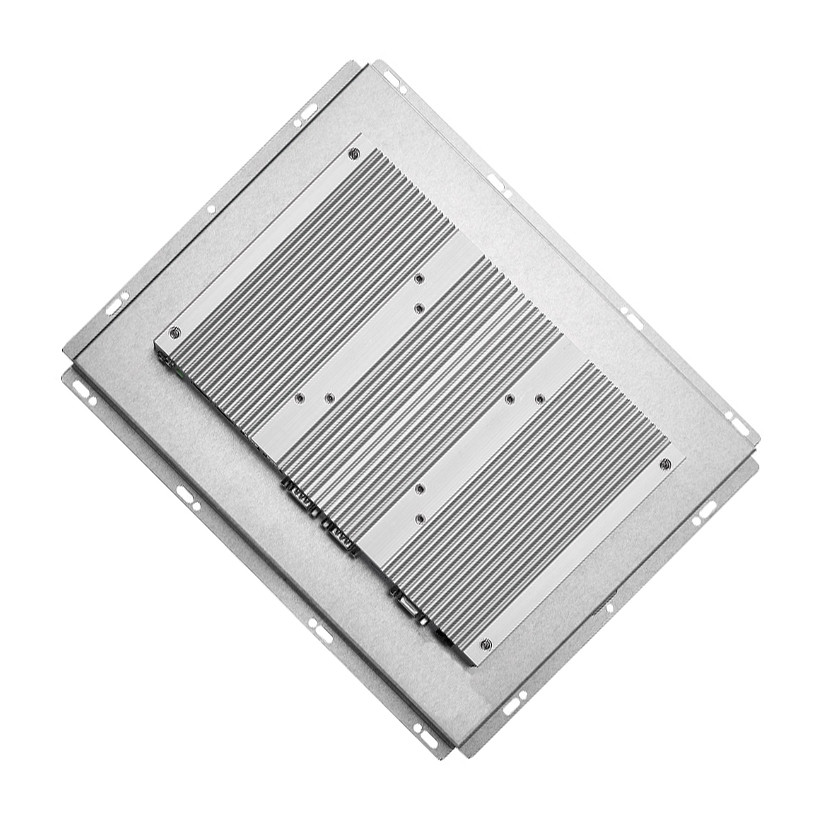

1280*1024 Industrial All In One PC , Industrial Panel PC 50000 Hours Lifetime

Product Description

19 inch open frame industrial high brightness sunlight readable touch all in one Panel PC with touchscreen optional

ITD high brightness panel touch computer features a wide operating temperature range for greater reliability in harsh environments which are common in marine applications. Either in on-shore and off-shore applications, it offers superior display as it is equipped with a dimmable sunlight readable feature. Moreover, there's an optional touchscreen capability for interactive applications. It also supports various I/O ports for flexible connectivity.

BENEFITES

- 19" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)

- High-Luminance Solid-State LED-enhanced Backlighting

- 4GB, Max.8G System Memory

- NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel

- Energy Efficient, Low Power Consumption

- High Environmental Performance and Reliability

- SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)

- Wide Operational Temperature Range, -10°C to +60°C

Open Frame High Brightness Panel PC
Model Name		ITD19PPCG1HBF**
IP Rating		N/A
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch/cm)		19”
Display Active Screen Size (mm)		376.32(H)X301.06(V)
Aspect Ratio		4:3
Physical Resolution		1280X1024
Maximum Resolution Supported		1920X1080
Colors		16.7M
Brightness (cd/m²)		1000(1500 Optional)
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		45W
Order Information
19”1000nits Open Frame Panel PC with Resistive Touch, J1900		ITD19PPCT1HBFJ1
19”1000nits Open Frame Panel PC with PCAP Touch, J1900		ITD19PPCT5HBFJ1
19”1000nits Open Frame Panel PC with IR Touch, J1900		ITD19PPCT2HBFJ1
19”1000nits Open Frame Panel PC with Tempered Glass, J1900		ITD19PPCG1HBFJ1
19”1000nits Open Frame Panel PC with Resistive Touch, i5		ITD19PPCT1HBFI5
19”1000nits Open Frame Panel PC with PCAP Touch, i5		ITD19PPCT5HBFI5
19”1000nits Open Frame Panel PC with IR Touch, i5		ITD19PPCT2HBFJ1
19”1000nits Open Frame Panel PC with Tempered Glass, i5		ITD19PPCG1HBFI5
