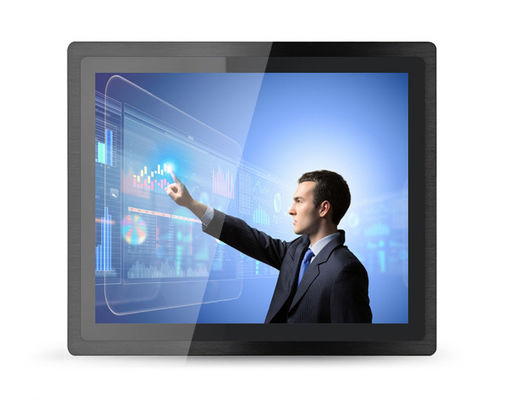

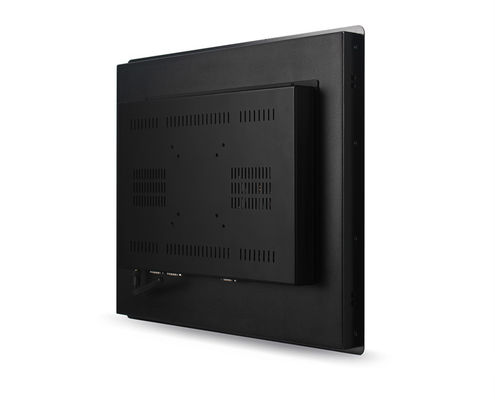

Name: 10.4” Panel Mount Touch Screen PC Industrial Grade DC 12V With Steel Enclosures
Brand: Shenzhen ITD Display Equipment Co., Ltd.
SKU: ITD10PPCT5XJ
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

CPU: Intel J1900/i3/i5/i7/Android

Color: Black Or Silver

Housing Type: Panel/Embedded Mount, VESA Mounting

MTBF: 50000Hours

Operating Temperature: -10~60℃(-20~70℃ Optional)

Operating Humidity: 10%-90% (Non Condensing)

24/7/365 Use: Supported

Touchscreen: Resistive, PCAP

Power Input: DC 12V

Resolution: 1280x800

View Angels: 80/80/70/70

Brightness: 300 Nits

Highlight:

touch display pc

touch monitor pc

Basic Infomation

Place of Origin: China

Brand Name: ITD

Certification: CE, FCC, RoHS

Model Number: ITD10PPCT5XJ

Payment & Shipping Terms

Packaging Details: 1-5pcs/CTN, Safe, Firm

Delivery Time: 5-15 Business Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 10000PCS/Month

Gallery

10.4” Panel Mount Touch Screen PC Industrial Grade DC 12V With Steel Enclosures

Product Description

10.4” Flat Bezel Industrial touchscreen panel PC with aluminum front bezel panel mounted

ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.

Specifications:

Flat Bezel Industrial Panel PC
Model Name		ITD10PPCG1X**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		10.4”
Display Active Screen Size (cm)		210.4(H)×157.8(V)
Aspect Ratio		4:3
Physical Resolution		1024×768
Maximum Resolution Supported		1920×1080
Colors		16.2M
Brightness (cd/m²)		300
Contrast Ratio		600:1
View Angels		80/80/70/70
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		29.5W
Order Information
10.4”Panel Mount Panel PC with Resistive Touch, J1900		ITD10PPCT1XJ1
10.4”Panel Mount Panel PC with PCAP Touch, J1900		ITD10PPCT5XJ1
10.4”Panel Mount Panel PC with Tempered Glass, J1900		ITD10PPCG1XJ1
10.4”Panel Mount Panel PC with Resistive Touch, i5		ITD10PPCT1XI5
10.4”Panel Mount Panel PC with PCAP Touch, i5		ITD10PPCT5XI5
10.4”Panel Mount Panel PC with Tempered Glass, i5		ITD10PPCG1XI5

BENEFITES

Exceptional quality and highly engineered industrial panel computer
High Performance Processor, Graphics, Memory and Power
Edge to edge design with true flat surface, easy to clean
Optional touchscreens like resistive, PCAP
All steel construction designed for harsh and industrial environments
Easy-to-install embedded/panel mounting with clamps
Robust design with aluminum NEMA 4/ IP65 front panel
Flexible, reliable, and ruggedized for open platform HMI/SCADA

APPLICATION
